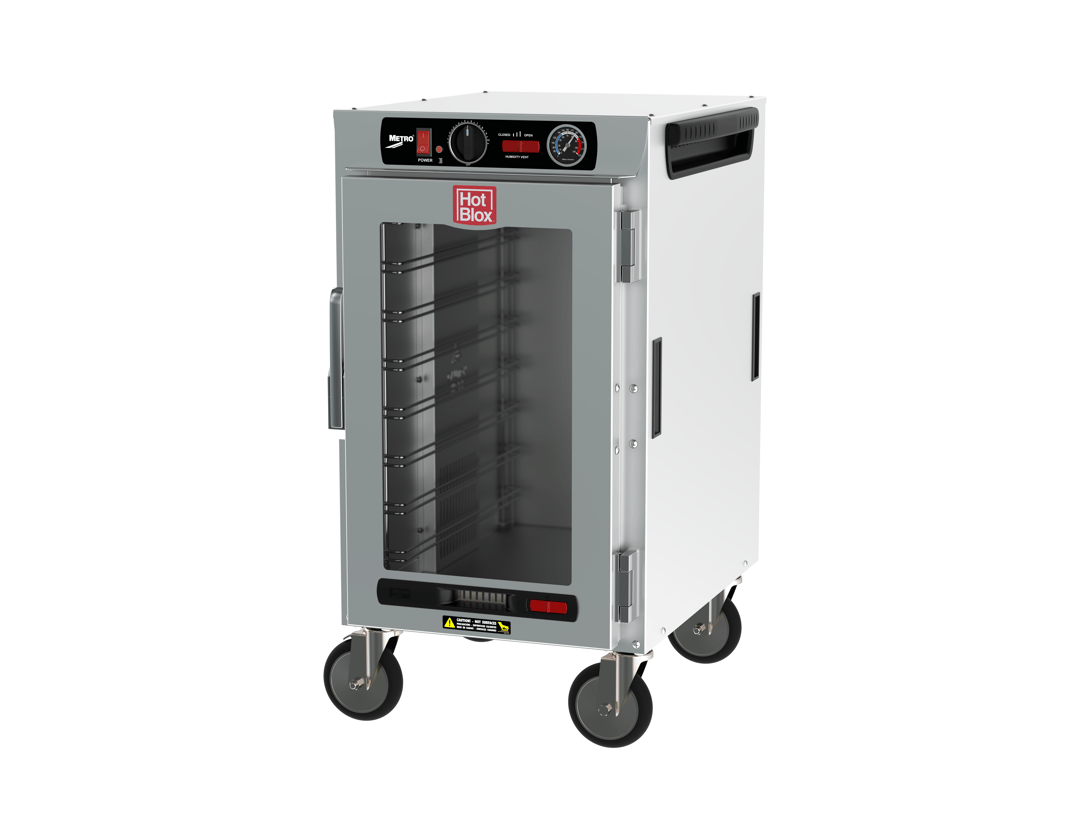

Metro HBCN8-AC-MA Mobile Heated Cabinet

Metro HotBlox

Versatile, right-sized holding that adapts to your unique space & menu needs.

Features

• 3 space saving sizes to fit in narrow spaces, under counters or on top, or stackable for vertical space efficiency.
• Flexibility to hold moist or crispy food with the same cabinet using Metro's hybrid convection–radiant heating technology
• Simple Analog Control Option: Electro-mechanical thermostat and "always-on" thermometer is a more cost effective option and ideal for transport applications.
• Doors: clear polycarbonate to view internal contents.

Specifications

• Cabinet Construction: .063" (1.8mm) thick aluminum body with high-density fiberglass insulation.
• N4 under counter supplied with 5" (127mm) neoprene casters, N8 & W8 with 2" (51mm) polyolifin casters
• Clear Doors: .063" (1.8mm) aluminum with welded corners, polycarbonate window. Each door includes adjustable fresh air intake vent. Field reversible, double hinged, 180° swing.
• Door Latch: Flush mounted, chrome plated high strength magnetic latch with lever action release.
• Door Gaskets: High temperature, cabinet mounted santoprene gaskets. Removable without tools.
• Pan Slides: Nickel chrome plated fixed wire, spaced on 2.75" (70mm) centers.
• Power Cord: 6' (183cm) long cord with NEMA 5-15P plug on 120V models and NEMA 6-15P on 220-240V models
• Heating System: Thermostatically controlled hybrid convection - radiant system. 675W heating element, circulating fan, ducted air circulating system with 200W radiant heating element under floor surface
• Performance: 90°F (32°C) to 190°F (88°C) temperature range. Achievable humidity with pan of water on floor at 160°F (71°C) is approximately 33% RH
• Recommended Clearances for Enclosures: 1.5" (38mm) on cabinet sides and back. Always maintain at least 1" of space under cabinet to countertop surface.
• Stacking Requirements: Maximum stacked height shall never exceed 68" (1727mm). Maximum (2) N8 (2) W8, or (3) N4 cabinets per stacked unit. Stacked cabinets must maintain 2" (51mm) spacing using proper stacking kit with proper ventilation.
