Convotherm Roll-In Blast Chiller / Freezer
Standard Features
- Blast chill cycle: 265lb. (120kg) from 200°F to 37F° in 90 minutes
- Shock Freeze cycle: 220lb. (100kg) from 200°F to 0F° in 240 minutes
- Trolley Sizes (not included): Combi Oven Trolley, 20 full-size sheets pans (26”x18”) or Combi Oven Trolley, 20 half size pans (12”x20”)
- Electronic expansion valve: up to 30% more efficient than manual valves.
- X: Evaporator surface: 10 ft ² surface area for faster cooling (30% larger than competition)
- Refrigerant Type: R449a
- Auto Stop Evaporator Fans upon door opening to save energy
- Cabinet Insulation: 3.2” thick (80mm) CFC-free, high density polyurethane foam panel walls
- Mono-block cabinet eliminates air leaks
- Digital Controls: Heavy duty industrial electronic board (PLC). 7" touch screen
- Connectivity. Ethernet or USB ready; see options for wifi
- Core Probe (1): conic shape for easy removal, no need to heat the probe.
- HACCP data Download by Ethernet cable, USB or WIFI (router optional).
- 66 chilling and freezing profiles 42 cycles pre-programmed and 24 available for customization.
- Desktop Programming . Deliver customer profiles to chiller with ethernet, usb, or wifi
Unique Features
- Ziehl abegg® Electronic evaporator fans: FOUR 11.8” IP54 waterproof fans; 17,000 m³/h air flow
- ElectroFin® Corrosion Resistant Evaporator coating
- 4 hp Bitzer® Compressor
- Advanced Diagnostics: Display Diagnostic of the main parameters (air flow speed, energy consumption, Valve function, Condensing unit, Pressure)
- IP67 Control board: waterproof and dust protection grade
- Stainless Steel internal surfaces and door frame. Coved cabinet floor (NSF) for easy cleaning
- Evaporator Adaptive Defrosting: manual defrost with auto stop
From The Manufacturer

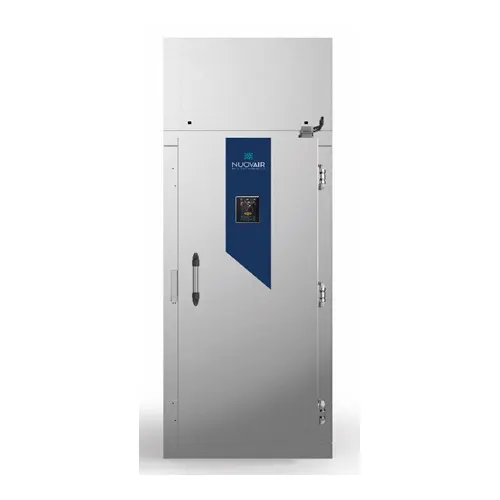

Nuovair® Roll-In Blast Chiller/Freezer, self-contained refrigeration, insulated, ccepts (1) standard bun rack or (1) combi-oven trolley, accommodates (20) 18" x 26" full-size or (40) 12" x 20" half-size sheet pans, 265 lbs from 200°F - 37°F chill capacity/90 minutes, 220 lbs from 200°F - 0°F freeze capacity/240 minutes, 7" touch screen with digital controls, adaptive defrost, ethernet/USB ready, adaptive defrost, stainless steel front & interior, 4HP, 7.5kW, 208-230v/60/3-ph, 35.0 amps UL EPH Classified, NSF, cULus, CE
