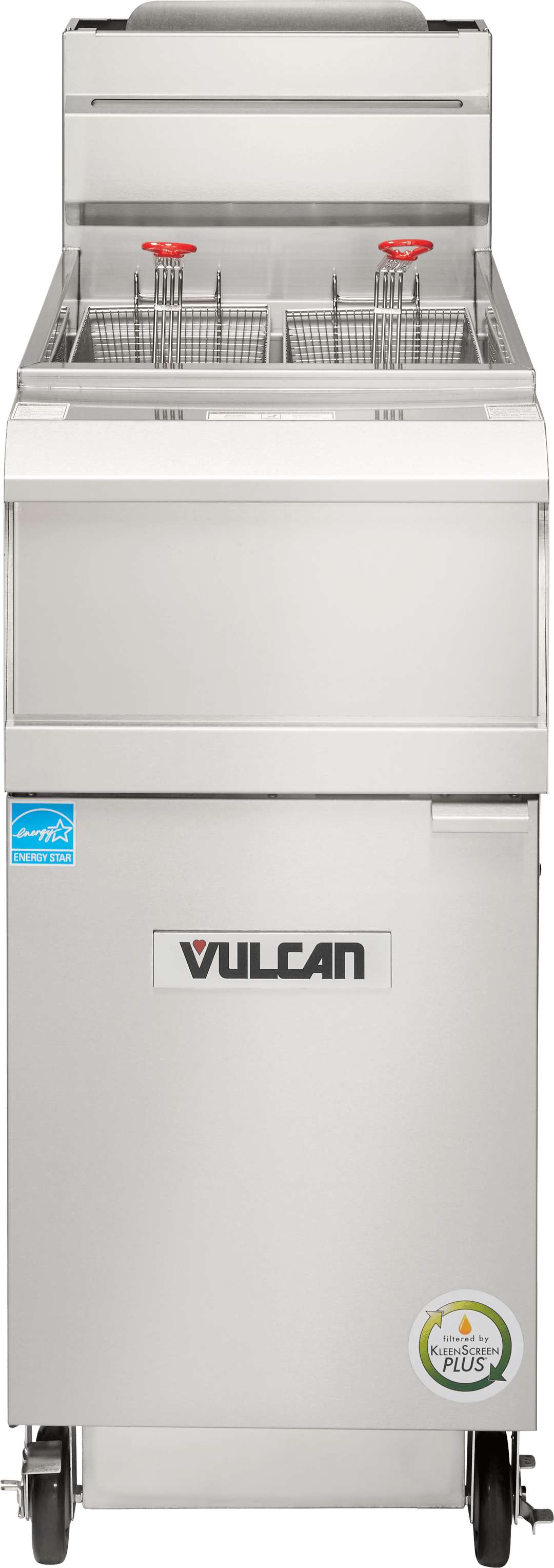

Vulcan Quickfry Series Free Standing Gas Fryer With Built-In Filtration for 1VHG50F Freyers
SPECIFIER STATEMENT
Built-in filter system, Vulcan Model No. 1VHG50, (control type A, D or C) F (add suffix-F to fryer battery model No., I.E. 1VHG50DF). Filter system accommodates one 50 lb. fryer. Filter vessel constructed of 16-gauge stainless steel. Filter pan weighs 17.0 lbs. 1 ⁄3 H.P. motor/ pump circulates hot frying compound at the rate of 8 gallons per minute (60 Hz), activated by a one touch push button switch. System provided standard with stainless steel mesh filter screen. Optional KleenScreen PLUS® envelopes filter out particulate down to 0.5 microns. Dry fire safety prevention sequence comes standard on all 1VHG50 models. Standard equipment comes on casters, has a tank brush and clean-out rod. Hands free oil return line connection. Drain valve interlock switch turns fryer's burners off when drain valve is opened. Requires 120 volt, 50/60 Hz, 1 phase power supply. Also available in 240 volt, 50/60 Hz, 1 phase power supply.
1VHG50A
Solid state knob control with digital character display behind the access panel. Accurate temperature control 150 to 390°F. Electronic ignition. Digital temperatures: Fahrenheit or Celsius. Three melt modes.
Standard Features
- Filter system accommodates 1VHG50F
- Drain valve interlock switch – turns off gas burners automatically when draining oil
- Input rate is 75,000 BTU/hr. for natural gas and 70,000 BTU/hr. for propane
- 6" casters adjustable – 2 locking, 2 non-locking
- 16 gauge stainless steel filter pan; 75 lbs. frying compound capacity
- Stainless steel filter mesh screen filters from 2 sides; filter area = 270 square inches
- 1 ⁄3 H.P. motor and pump circulates frying compound at a rate of 8.0 gallons per minute (60 Hz)
- One touch push button switch to engage pump and motor
- Tank brush and clean-out rod
- 120 volts, 60 Hz, 1 phase (NEMA 5-15P)
- 240 volts, 50 Hz, 1 phase (IEC320 C14)
- Dry fire safety prevention sequence
- One year limited parts and labor warranty
- 10 year fry tank limited warranty
- 4' high temperature discard hose
