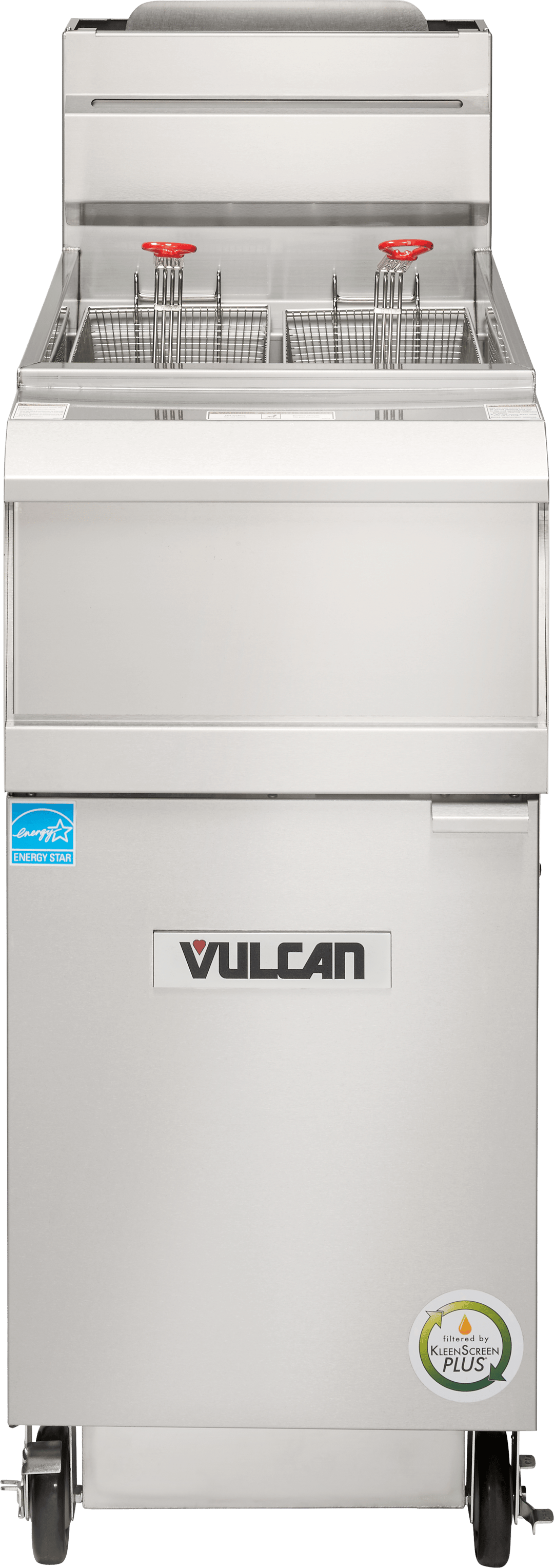

Vulcan Quickfry Series Free Standing Gas Fryer With Built-In Filtration for 1VHG50F Freyers
SPECIFIER STATEMENT
Built-in filter system, Vulcan Model No. 1VHG50, (control type A, D or C) F (add suffix-F to fryer battery model No., I.E. 1VHG50DF). Filter system accommodates one 50 lb. fryer. Filter vessel constructed of 16-gauge stainless steel. Filter pan weighs 17.0 lbs. 1 ⁄3 H.P. motor/ pump circulates hot frying compound at the rate of 8 gallons per minute (60 Hz), activated by a one touch push button switch. System provided standard with stainless steel mesh filter screen. Optional KleenScreen PLUS® envelopes filter out particulate down to 0.5 microns. Dry fire safety prevention sequence comes standard on all 1VHG50 models. Standard equipment comes on casters, has a tank brush and clean-out rod. Hands free oil return line connection. Drain valve interlock switch turns fryer's burners off when drain valve is opened. Requires 120 volt, 50/60 Hz, 1 phase power supply. Also available in 240 volt, 50/60 Hz, 1 phase power supply.
1VHG50C
Programmable computer controls with digital character display. 18 menu timers display product name and cook times. Optional single, dual and triple lane. Offline programming of menu items uploaded through USB interface, software included. Menu can also be downloaded from control onto USB. Accurate temperature control 150-390°F with digital display. Cook with compensating time or actual time. Electronic ignition. Digital temperatures: Fahrenheit or Celsius. Three melt modes. Auto and manual boil-out mode.
Standard Features
- Filter system accommodates 1VHG50F
- Drain valve interlock switch – turns off gas burners automatically when draining oil
- Input rate is 75,000 BTU/hr. for natural gas and 70,000 BTU/hr. for propane
- 6" casters adjustable – 2 locking, 2 non-locking
- 16 gauge stainless steel filter pan; 75 lbs. frying compound capacity
- Stainless steel filter mesh screen filters from 2 sides; filter area = 270 square inches
- 1 ⁄3 H.P. motor and pump circulates frying compound at a rate of 8.0 gallons per minute (60 Hz)
- One touch push button switch to engage pump and motor
- Tank brush and clean-out rod
- 120 volts, 60 Hz, 1 phase (NEMA 5-15P)
- 240 volts, 50 Hz, 1 phase (IEC320 C14)
- Dry fire safety prevention sequence
- One year limited parts and labor warranty
- 10 year fry tank limited warranty
- 4' high temperature discard hose
