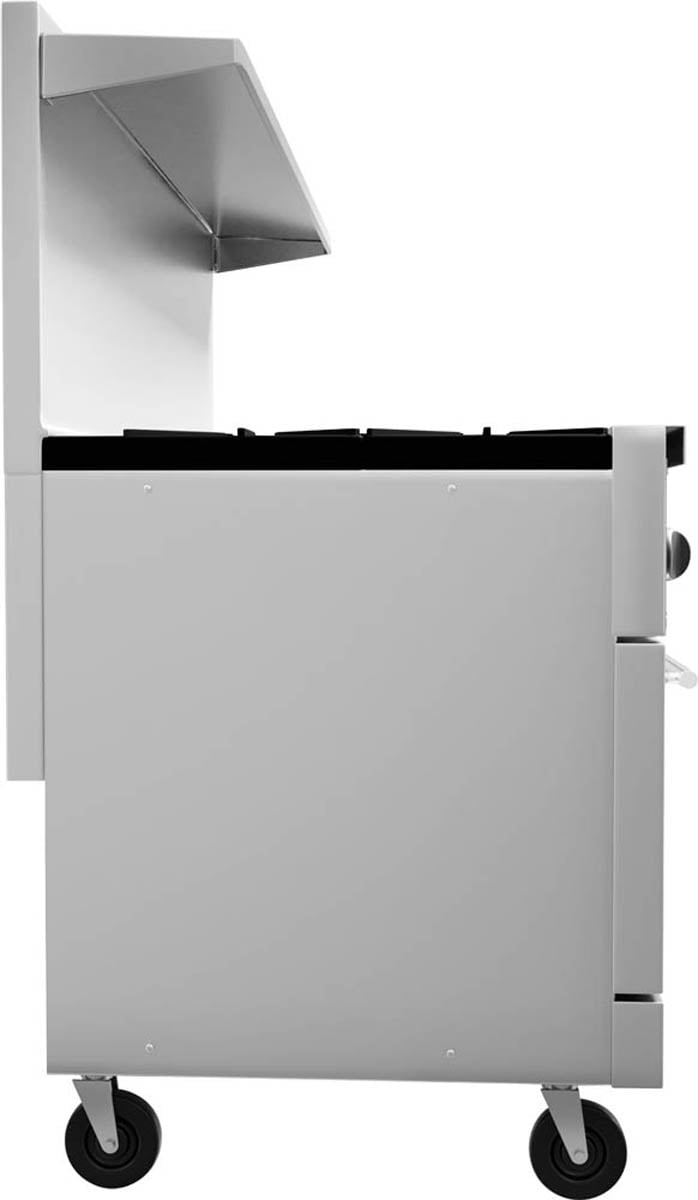

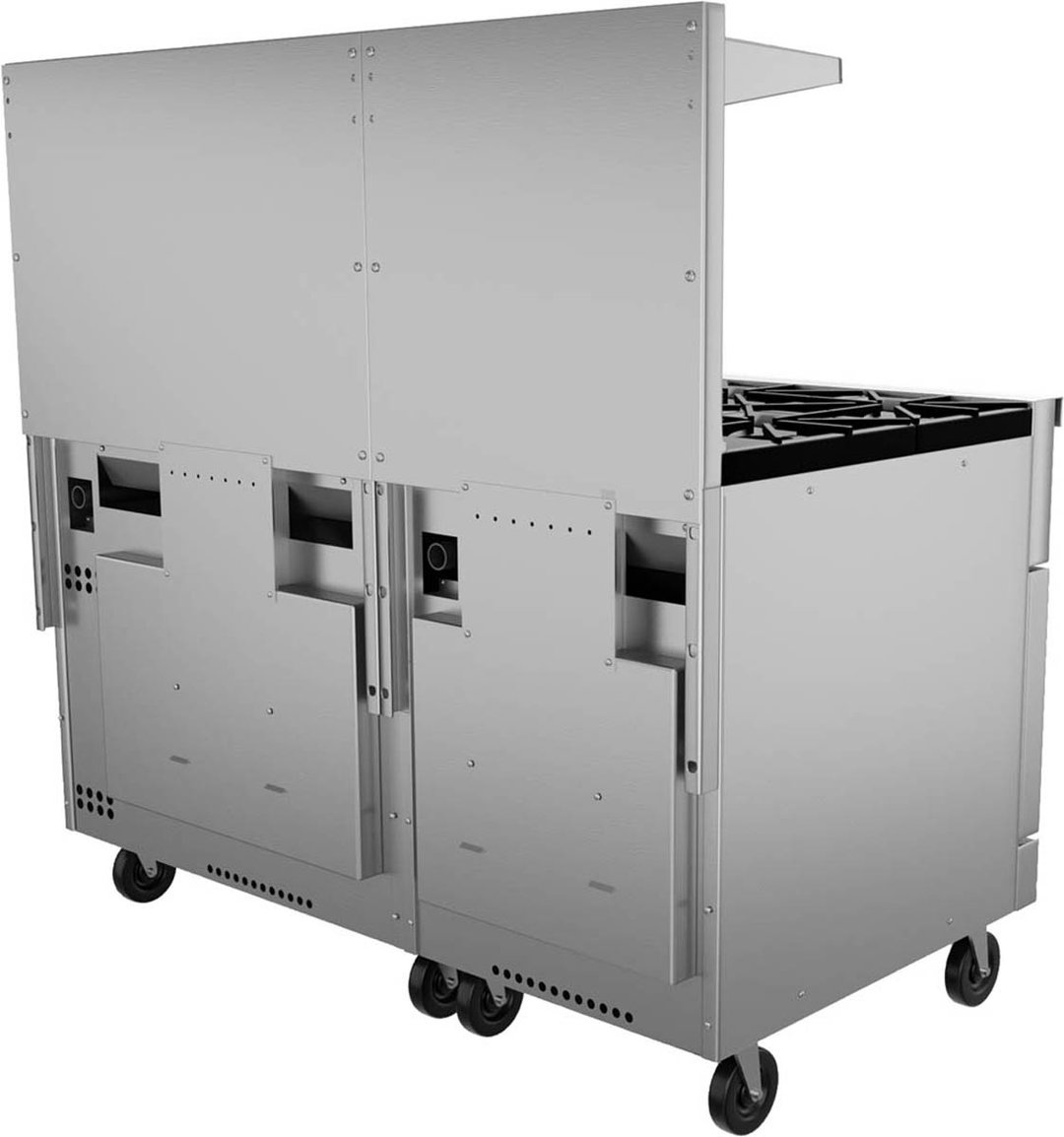

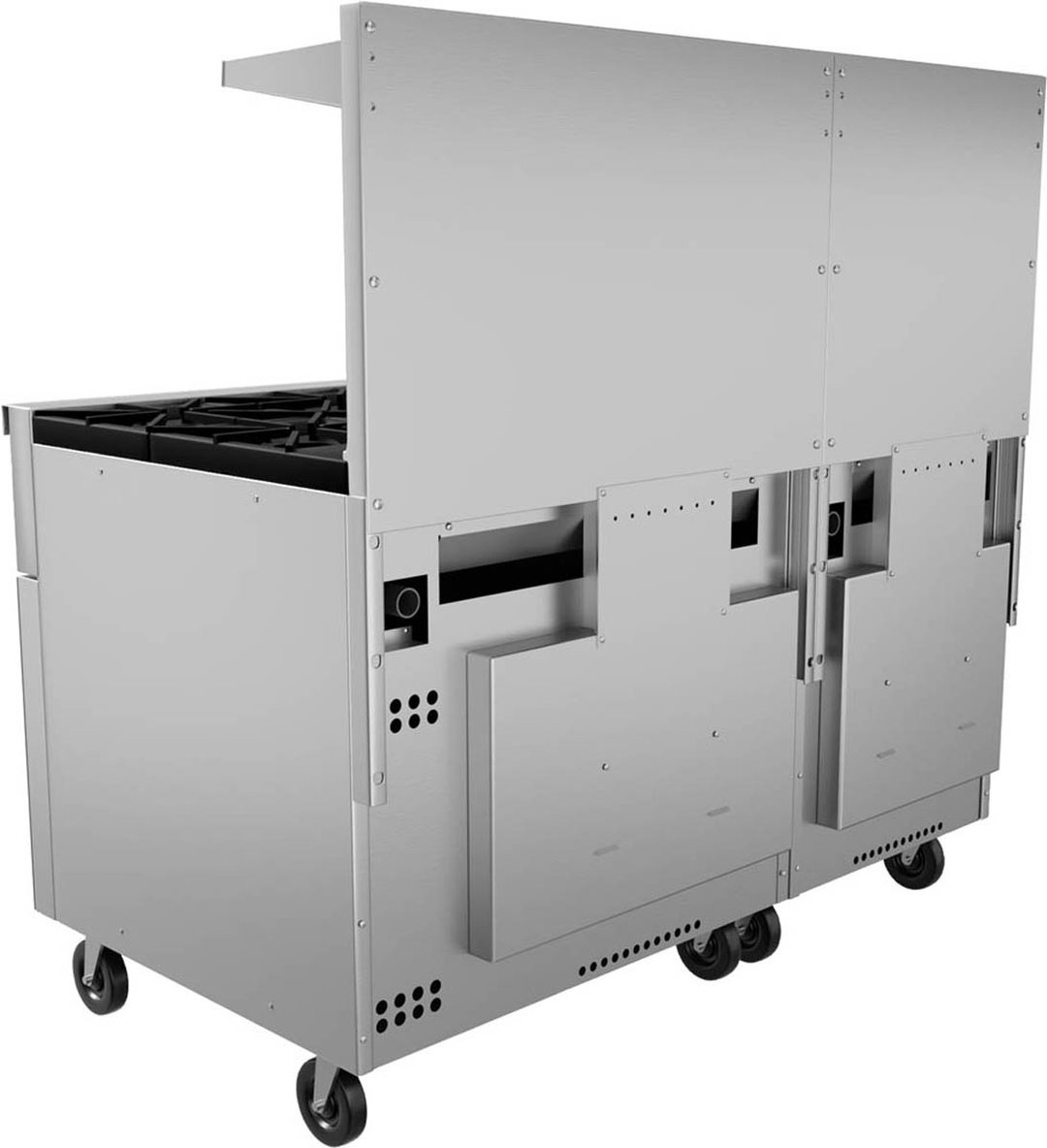

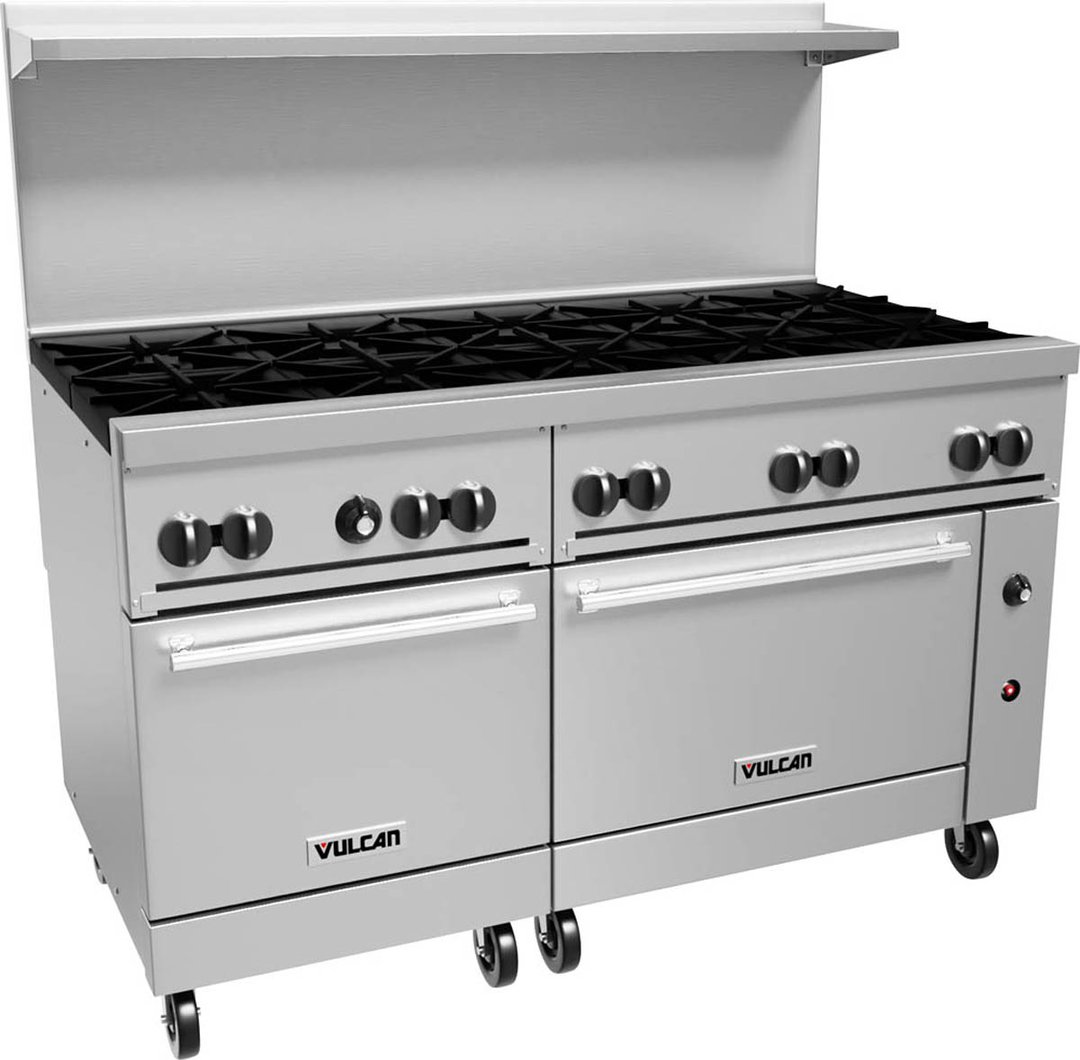

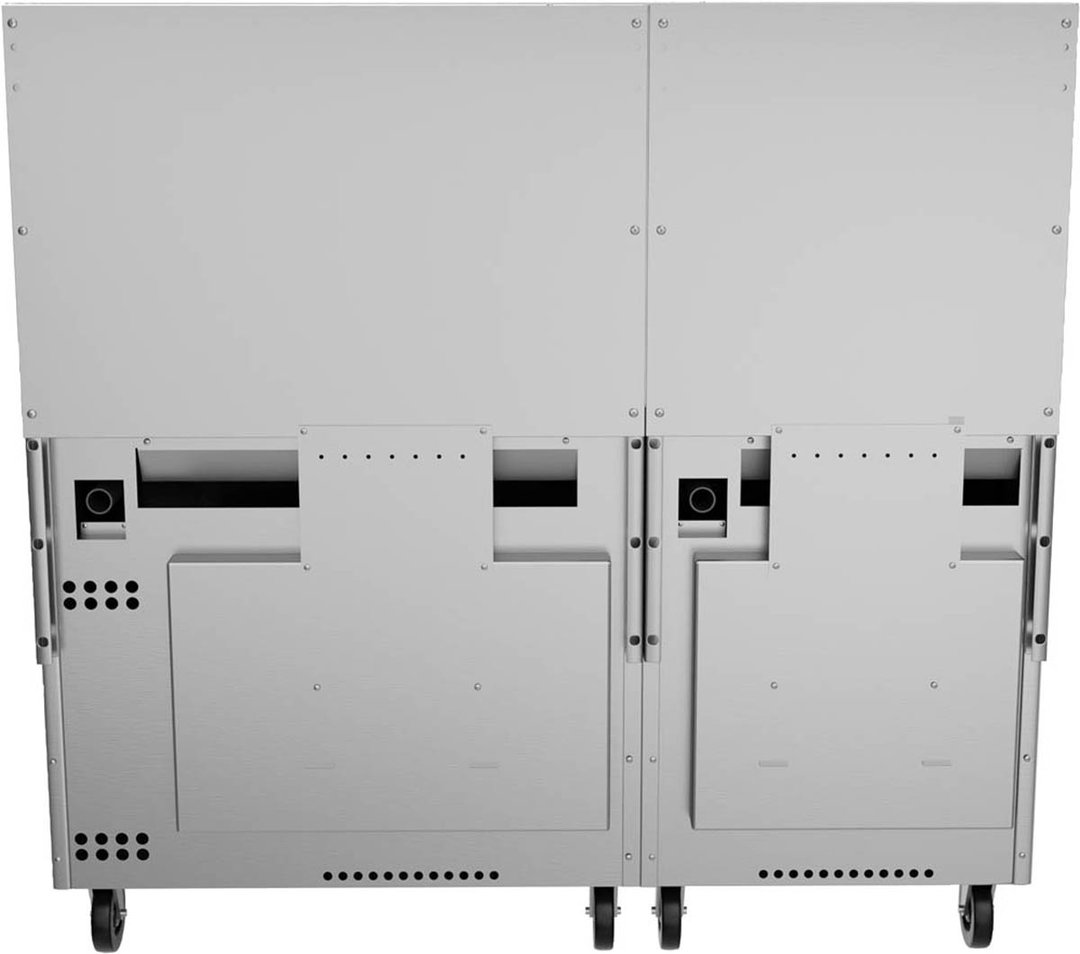

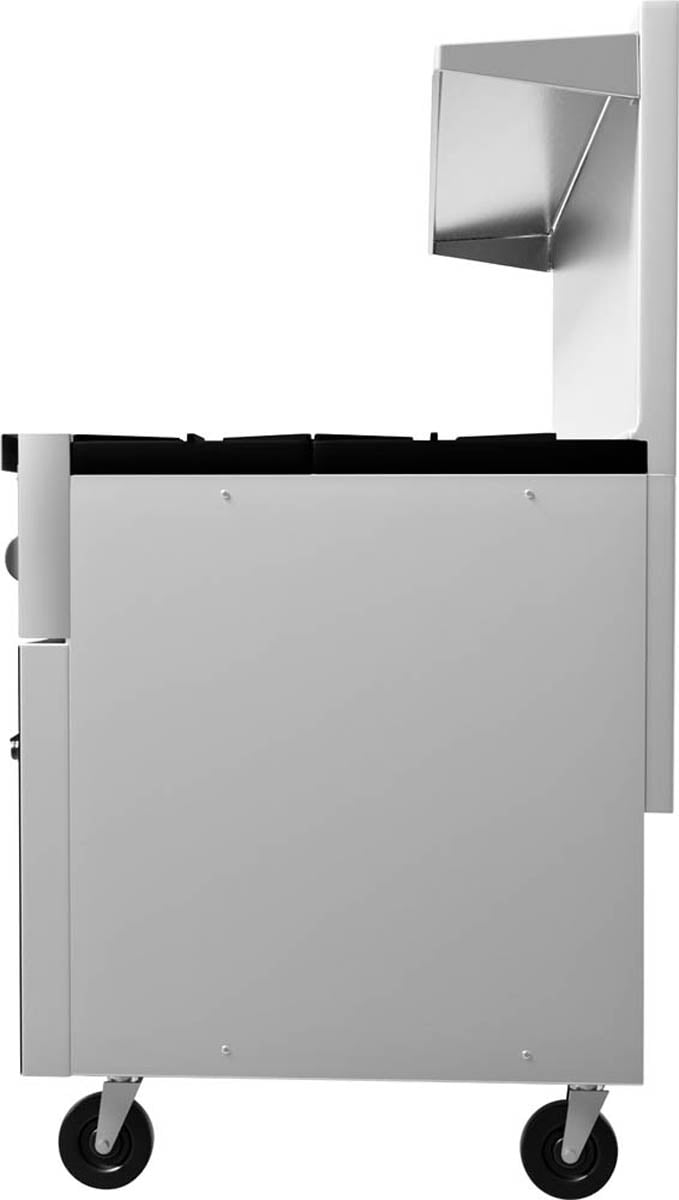

Vulcan ENDURANCE GAS RESTAURANT RANGE 10 OPEN BURNERS 60" WIDE GAS RANGE
SPECIFICATIONS
60" wide gas restaurant range, Vulcan Model No. 60SS Series. Fully MIG welded aluminized steel frame for added durability. Stainless steel front, sides, backriser, highshelf and 6" adjustable legs. Extra deep crumb tray with welded corners. Ten 30,000 BTU/hr. open top burners with lift-off burner heads. Energy saving flashtube open burner ignition system (one pilot for every two burners) shrouded for reliability. Heavy duty cast grates, easy lift-off 12" x 12 1⁄2" in the front and 12" x 14 1⁄2" in the back to better accommodate stock pots or large pans. Grates have a built in aeration bowl for greater efficiency. Burner knobs are cool to the touch, high temperature material. Two ovens: left oven is 23,000 BTU/hr. bakers depth oven, measures 26 1⁄4"d x 20 1⁄4"w x 14"h. Right oven is 35,000 BTU/hr. bakers depth oven, measures 27"d x 26 3⁄8"w x 14"h. Both ovens have porcelain bottoms and door panels. Oven thermostats adjusts from 250°F to 500°F with a low setting. Each oven is supplied with two racks, two rack guide sets, and four rack positions. Oven doors are heavy duty with an integrated door hingespring mechanism requiring no adjustment. 1" rear gas connections with rear manifold and pressure regulator. Total input 358,000 BTU/hr.
Exterior Dimensions:
34"d x 60"w x 58"h on 6" adjustable legs
- 60SS-10BN: 2 Standard Ovens / Natural Gas
- 60SS-10BP: 2 Standard Ovens / Propane
- 60SC-10BN: 1 Standard Oven / 1 Convection Oven / Natural Gas
- 60SC-10BP: 1 Standard Oven / 1 Convection Oven / Propane
STANDARD FEATURES
- Fully MIG welded frame
- Stainless steel front, sides, backriser, lift-off high shelf
- 6" stainless steel adjustable legs
- Ten open top burners, each burner is 30,000 BTU/hr. with lift-off burner heads
- Shrouded flash tube pilot system (one pilot per two burners)
- Heavy duty cast grates, easy lift-off 12" x 121⁄2" in front and 12" x 141⁄2" in the rear
- Extra deep pull out crumb tray with welded corners
- Left oven: 23,000 BTU/hr. baker’s depth oven cavity, full size sheet pans (18" x 26") fit front to back only
- Right oven: 35,000 BTU/hr. baker’s depth oven cavity, full size sheet pans (18" x 26") fit front to back and side to side
- Oven thermostats adjusts from 250°F to 500°F
- Two oven racks and four rack positions for each oven
- Right oven: 35,000 BTU/hr. convection oven in place of standard oven 24"d x 263⁄8"w x 137⁄8"h (115v - 1 phase blower motor, 4 amp, 6' cord and plug, includes three oven racks. Full size sheet pans only fit side-to-side in convection oven. Convection oven motor requires field attachment.
- 1" rear gas connection and pressure regulator
- One year limited parts and labor warranty
