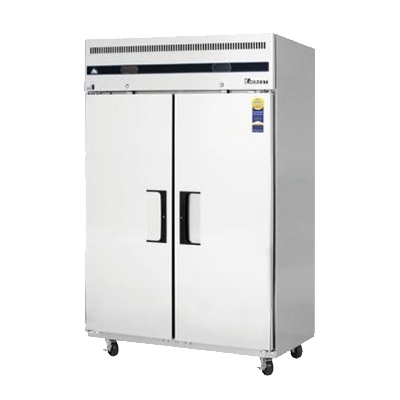

Tarrison CO-TSRF2 Upright Reach-In Dual Temp Refrigerator & Freezer
Cabinet Construction
Heavy duty stainless steel interior and exterior, and galvanized steel finished top, bottom and back wall of exterior. ABS evaporator drain cover. 2.5" thick high density foamed-in-place polyurethane insulation. Four 4" diameter casters (front casters with brakes). Door heater installation around inside cabinet frame to prevent moisture build-up.
Refrigeration System
- Self-contained condensing unit located at top of cabinet for high performance
- Oversized condenser and evaporator coil cools to set temperature in a minimum time period and maintains it
- Environmentally friendly CFC free R-134A and R-404A refrigerant
- Adjustable defrost cycle between every 3 to 12 hours with 400 watt heater, time initiated, and both temperature and time terminated for fail-safe backup
- Automatic evaporator fan motor delay on defrost cycle
- Copper tube and aluminum fin evaporator with anti-corrosive coating
- Energy efficient condensate drain pan located at bottom of cabinet constructed of anodized aluminum
- Two pressure relief ports located at exterior back wall and top of cabinet for rapid re-entry
- Interior airflow backguard to ensure proper air circulation
- Pre-wired and ready to plug to, 115V/60Hz/1Ph, NEMA 5-15P
Doors
- Heavy duty stainless steel interior and exterior
- 2.5" thick high density foamed-in-place polyurethane insulation
- Rounded corners for a sleek and modern appearance
- Heavy duty adjustable torsion spring self-closing door system
- One piece snap-in magnetic door gasket for easy replacement
- Heavy duty recessed door handles for a fat surface
- Door locks
- Field reversible doors (available from 2013 models)
Lighting and Shelving
- Safety shielded incandescent interior lighting
- Three epoxy coated wire shelves per section
- Stainless steel pilasters and shelf clips
Tarrison CO-TSRF2 Specifications
- Ref/Fzr/Dual :Dual
- Doors :2(full)
- Capacity cubic feet. : 22R + 22F
- Exterior Dimensions L x D x H* : 49 3/4 x 31 3/4 x 74 1/4
- Weight lbs. : 481
- Other Details :See spec. sheet
From The Manufacturer
Reach-In Refrigerator/Freezer Combo, two-section, 49-3/4"W, top mounted self-contained refrigeration, 22.0 (ref) & 22.0 (fzr) cu. ft. capacity, (6) epoxy coated wire shelves, digital display & monitoring system, (2) full-height solid hinged doors (field reversible) with recessed handles, door locks, incandescent interior lighting, adjustable defrost cycle, includes condensate drain pan, stainless steel interior & exterior, 4" swivel casters (2 braked), R134a & R404A, 1/3 (ref) & 1/2 (fzr) HP, 115v/60/1-ph, 12.25 amps, NEMA 5-15P
