Traulsen CLUC-60F-SD-LL Compact Undercounter Freezer With Self-Contained Solid Doors

General Info

Centerline™ by Traulsen’s compact undercounter refrigerators and freezers offer reliable refrigeration in a durable cabinet. Available in a variety of sizes to suit your needs, these undercounters maintain consistent temperatures to preserve the flavor and texture of your meals.

Controller

The easy to use electronic digital control is supplied standard. It includes a 3-Digit LED display, and a Fahrenheit or Celsius temperature scale display capability.

Interior

Standard interior arrangements include two (2) epoxy coated wire shelves per section, mounted on pilasters. Recommended load limit per shelf should not exceed 150 lbs.

Traulsen CLUC-60F-SD-LL Standard Features

High Quality Stainless Steel Construction
Anodized Aluminum Interior
Stay Open Door Feature at 105°
LED Display Control for Accuracy and Easy Monitoring
Capillary Tube Metering Device
Maintains Cabinet Temperature of -3°F to 3°F
Two (2) Adjustable, Heavy Duty Epoxy Coated Shelves Per Section
Field Reversible Door(s)
Set of Four (4) 4" High Casters with Locks Standard on Front Casters
Gasket-Protecting Retainer
Self-Contained Rear-Mounted Refrigeration System
High-Density, Non-CFC Foamed in Place Polyurethane Insulation
Easy to Grip Door Handle
3 Year Parts & Labor Warranty, Additional 2 Years on Compressor Parts

Traulsen CLUC-60F-SD-LL Specifications

Model Hinging : Solid Doors, Left/Left
Doors : 2
Shelves : 4
Dimensions L x D x H (in.): 60.25 x 31.5 x 30*
Cu. Ft. : 16.94
Gross Weight lbs : 310 (140.4 kg)
Other Deatils : See spec. sheet

From The Manufacturer

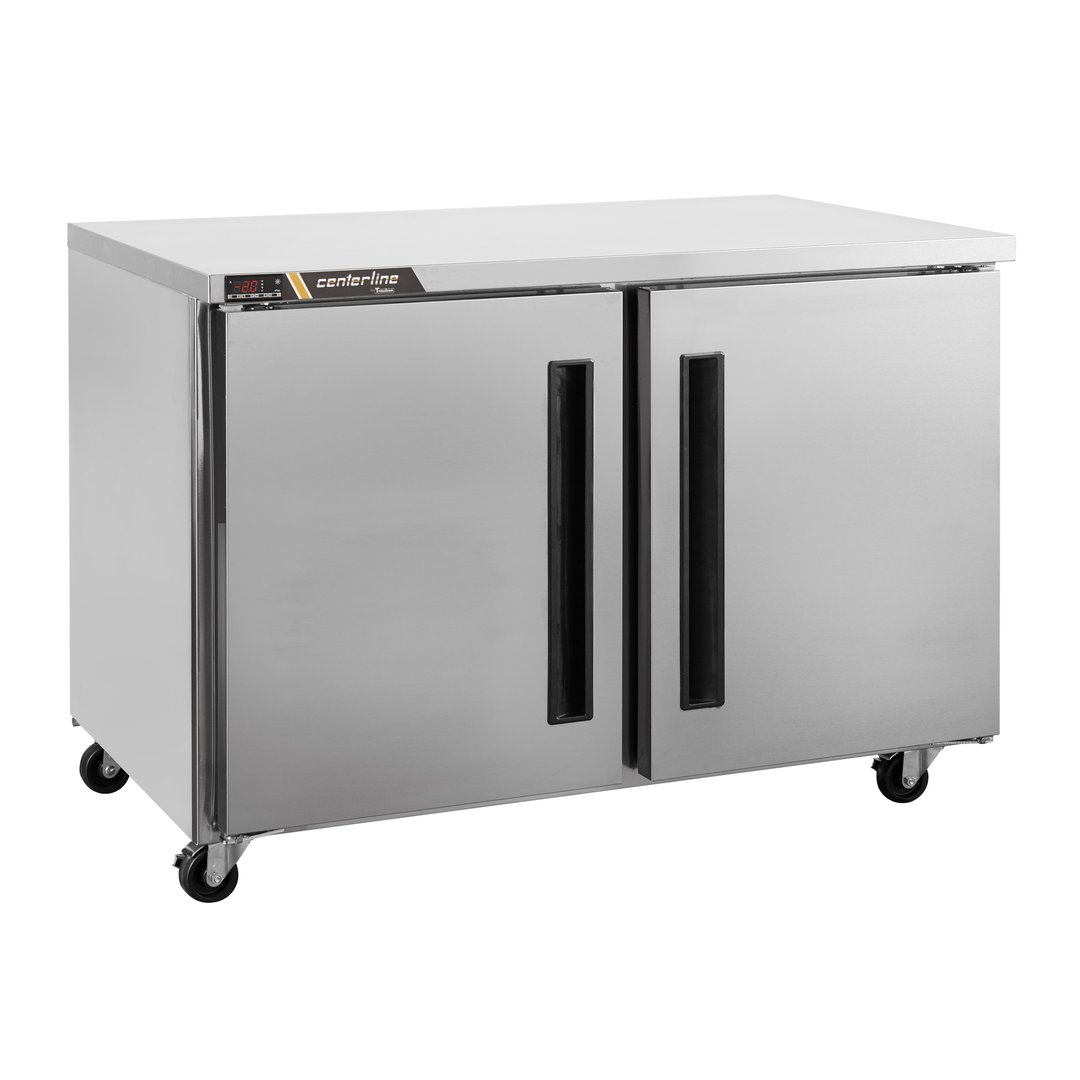

Centerline™ Compact Undercounter Freezer, two-section 48"W, 13.28 cu. ft. capacity, self-contained rear-mount refrigeration, (2) left hinged solid doors (field reversible), electronic control with LED display, (2) epoxy coated shelves per section, stainless steel exterior, anodized aluminum interior, (4) casters, R448A refrigerant, 1/2 HP, 115v/60/1-ph, 5.0 amps, NEMA 5-15P, cETLus, ETL-Sanitation

Manufacturer	Centerline by Traulsen
Model Number	CLUC-48F-SD-LL
Weight	310 lbs
Depth	31.5″
Height	34″
Door Type	solid door
Size	2 section
Refrigeration	self-contained, rear mounted
Exterior Finish	stainless steel
Compressor HP	1/2 HP
Width	48.25″
Access Type	doors
Compressor Style	side / rear breathing
Door Quantity	2
Certifications	cETLus
Capacity (Cu. Ft.)	13.28
Hinge Location	left / left
Handle Type	easy to grip
