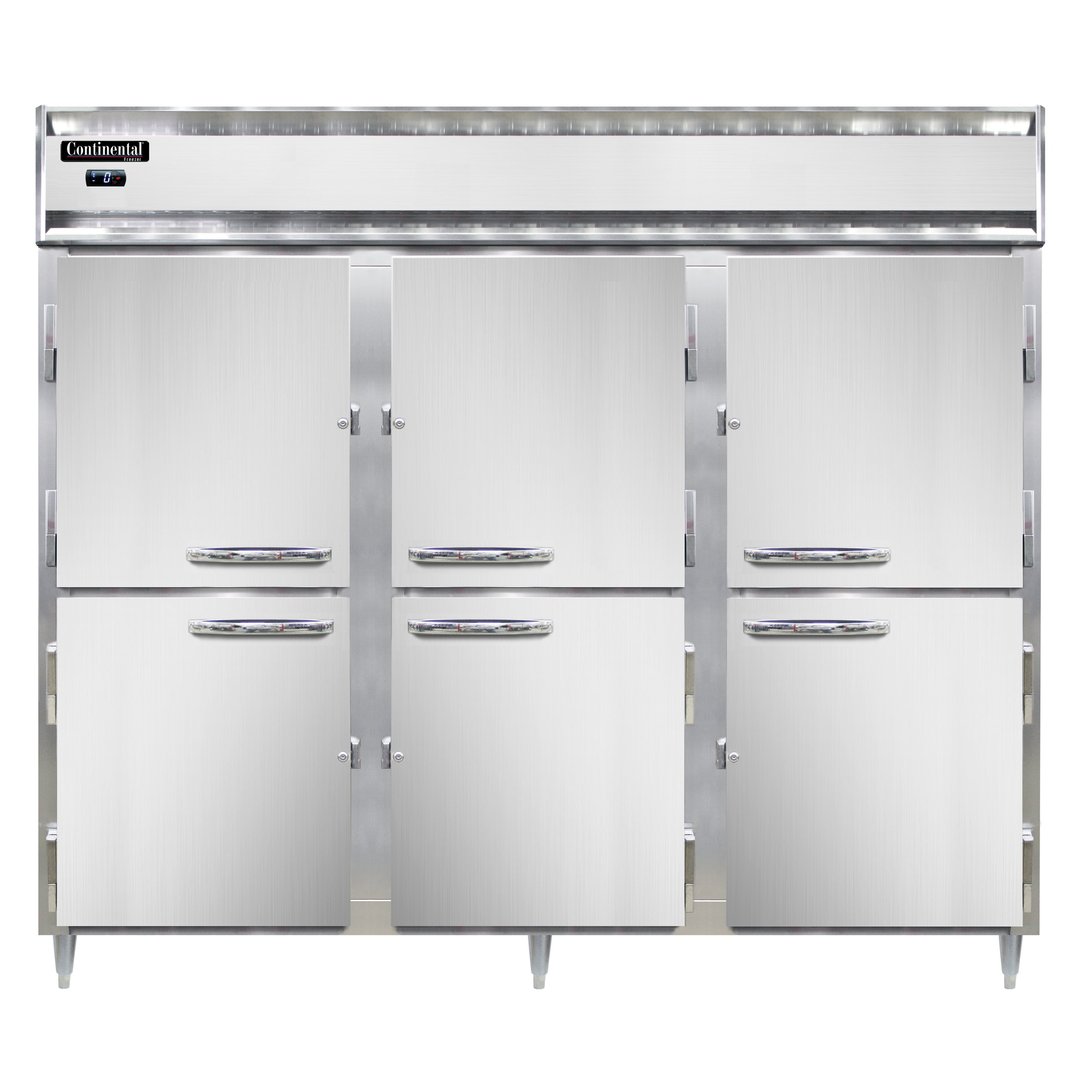

Name: Continental Refrigerator DL3FE-PT-HD 86" Three Section Pass-Thru Freezer w/ 12 Half Solid Doors, 72 cu. ft.
Brand: Continental Refrigerator
SKU: CON-DL3FE-PT-HD
Price: 16853.52 USD
Availability: InStock

The Continental Refrigerator DL3FE-PT-HD Designer Line 3-Section Extra Wide Pass-Thru Freezer (0°F) with Half Doors

Why Use Continental Refrigerator Refrigerators, Freezers & Warmers?

Continental Refrigerator has one of the most diversified commercial Reach-In product lines in the industry with standard features not found on other units. Continental Refrigerator's Designer Line models are equipped with both top and side air distribution ducts which allow for constant, uniform temperature throughout the cabinet.

Functionality

The refrigeration/heating systems on Continental Refrigerator's Designer Line ReachIns & Pass-Thrus are accessible on top of the cabinet and separate from the food zone, increasing food storage capacity.

Performance & Reliability

Performance-run tested for a minimum of 12 hours providing a highly sophisticated temperature analysis recording, exclusive to each cabinet.

Air Flow

All models are equipped with both top and side air distribution ducts to keep product load at a uniformly constant temperature.

“Plug” Refrigeration

Designer Line Refrigerators and Freezers utilize a “Plug” refrigeration system where the assembly is outside the food storage zone. The “Plug” system can be removed for servicing, cleaning or converting from a refrigerator to freezer in the field. Condensate water goes into a drain pan constructed with corrosion resistant 300 Series stainless steel. The condensate water is then evaporated by a non-electric, corrosion resistant 300 Series stainless steel hot gas discharge condensate loop.

Continental Refrigerator DL3FE-PT-HD Standart Features

DL3FE-PT-HD - Stainless steel front, aluminum end panels and interior
Self contained, performance-rated “plug” refrigeration system
Environmentally-safe R-404A refrigerant
Refrigeration system is accessible on top of cabinet, separate from the “food zone”
Automatic, hot gas condensate evaporator
3” non-CFC polyurethane foam insulation
Smooth, polished chrome workflow door handle
Cam action, lift off hinges
Self-closing door
Magnetic Snap-in door gasket
Cylinder lock in door
Heavy-duty, epoxy-coated steel shelves
Adjustable 6” stainless steel legs
LED interior lighting
Electronic controller w/digital display & hi-low alarm
Top and side air distribution ducts
Cabinet upper side panels and refrigeration “plug” system can be removed and reinstalled at job site
Automatic electric defrost

Continental Refrigerator DL3FE-PT-HD Option & Accessories

Stainless steel case back
Add’l epoxy-coated steel shelves
Chrome or stainless steel shelves
Expansion valve system
Custom laminates
Pan slide assemblies
Custom laminates
Full doors

From The Manufacturer

Designer Line Wide Freezer, pass-thru, 85-1/2"W, three-section, self-contained refrigeration, aluminum exterior & interior, stainless steel front, standard depth cabinet, wide half-height solid doors, cylinder locks, electronic control with digital display, hi-low alarm, 6" stainless steel legs, 1 HP, cETLus, NSF

Manufacturer	Continental Refrigerator
Model Number	DL3FE-PT-HD
Weight	960 lbs
Depth	39″
Height	87.25″
Door Type	solid door
Size	3 section
Refrigeration	self-contained, top mounted
Exterior Finish	stainless steel front, aluminum sides
Compressor HP	1 HP
Interior Finish	aluminum
Door Style	half hinged, wide
Width	85.5″
Door Quantity	12
Refrigerator Type	Pass-Thru
Capacity (Cu. Ft.)	72
Supports	legs
