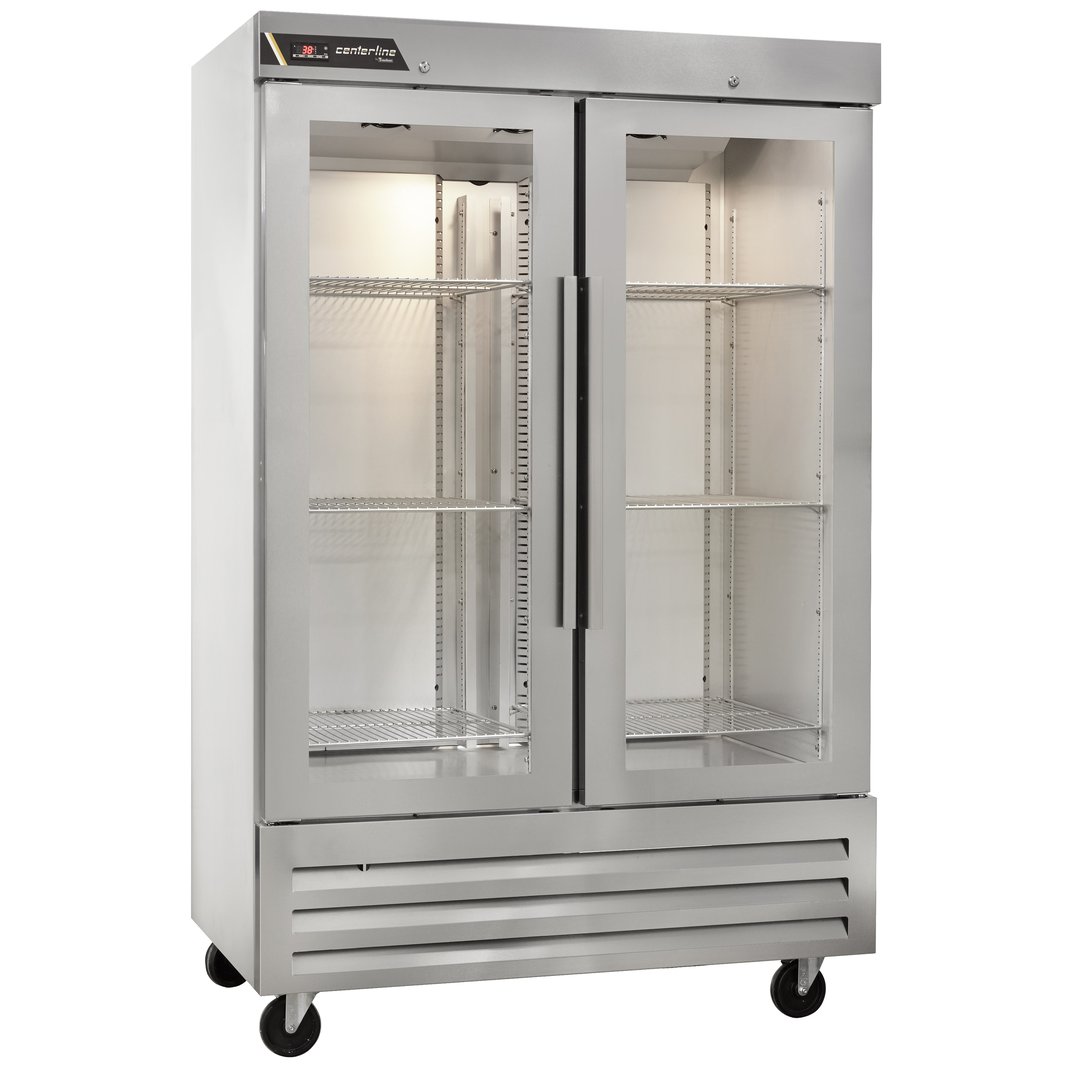

Traulsen CLBM-49R-FG-LR Two Section Bottom Mounted Reach-In Refrigerator-Glass Doors

General Info

Centerline™ by Traulsen brings foodservice professionals the reliability expected from the leading brand in commercial refrigeration, while providing long lasting performance at a budget friendly price.

Controller

The easy to use electronic digital control is supplied standard. It includes a 3-Digit LED display, and a Fahrenheit or Celsius temperature scale display capability.

Interior

Standard interior arrangements include three (3) epoxy coated wire shelves per section, mounted on pins. Recommended load limit per shelf should not exceed 150 lbs.

Traulsen CLBM-49R-FG-LR Standard Features

Stainless Steel Door(s) & Louver
Anodized Aluminum Sides & Interior
Metal Door Handle(s)
Positive Seal Self-Closing Door with Stay Open Feature at 110°
LED Display Control for Accuracy and Easy Monitoring
Capillary Tube Metering Device
Three (3) Adjustable, Heavy Duty Epoxy Coated Shelves Per Section
Set of Four (4) 4" High Casters with Locks Standard on Front Casters
Bottom-Mounted Refrigeration System
High-Density, Non-CFC Foamed in Place Polyurethane Insulation
Easily Accessible Condenser Coil for Cleaning
Ergonomically Friendly Lower Shelf
Storage on Top of Cabinet
3 Year Parts & Labor Warranty, Additional 2 Years on Compressor Parts

Traulsen CLBM-49R-FG-LR Specifications

Model Hinging : Full Glass Doors, Left/Right
Doors : 2
Shelves : 6
Dimensions L x D x H (in.): 53.75 x 33.5 x 78*
Ship Wt.(lbs.) : 790
Cu. Ft. : 45.13
Other Deatils : See spec. sheet

From The Manufacturer

Centerline™ Refrigerator, Reach-in, two-section, 45.13 cu. ft., self-contained bottom mount refrigeration, (1) left hinged/(1) right hinged full-height glass doors (field reversible), electronic control with LED display, (3) epoxy coated shelves per section, stainless steel front, anodized aluminum sides and interior, (4) casters, R450A refrigerant, 1/2 HP, 115v/60/1-ph, 6.7 amps, NEMA 5-15P plug, cETLus, ETL-Sanitation

Manufacturer	Centerline by Traulsen
Model Number	CLBM-49R-FG-LR
Weight	575 lbs
Width	33″
Depth	55.75″
Height	78″
Capacity (Cu. Ft.)	45
Hinge Location	left / right
Supports	casters
Refrigerator Type	Reach-In
Size	2 section
Door Type	glass door
Door Style	swing / full
Door Quantity	2
Refrigeration	self-contained, bottom mounted
Compressor HP	1/2 HP
Exterior Finish	stainless steel front, aluminum exterior
Interior Finish	all aluminum interior
Certifications	cETLus
