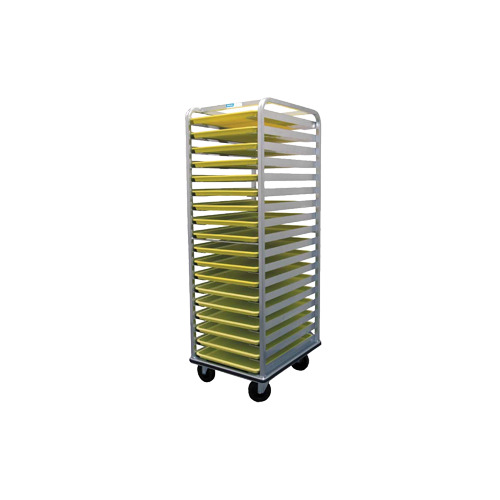

SecoSelect ORV-3-1818-X 10 Pan Aluminum End Load Versatile Tray Rack with 3" Bottom Load Slides

Why use SecoSelect ORV-3-1818-X Versatile Tray Rack ?

For 12” X 20” Pans and 18” X 26” and 14” X 18” Trays

SecoSelect ORV-3-1818-X Standard Features

• All Welded Aluminum Construction with 1” Square 6063-T5 aluminum alloy tubing with a wall thickness of .065”.
• Welded reinforcement rods between side frames for added strength and rigidity.
• One Piece Side Frames for added strength and durability.
• Rolled corners on side frames for easy installation of rack covers.
• Extruded 1/8” thick 6063 T-5 Aluminum Alloy Versatile Tray Slides with raised bearing surface for ease in loading and unloading pans.
• 2 1/8”, 3 1/8” or 5” Slide spacing available.
• All Welded 6063-T5 Solid Aluminum .100” thick bottom with .100” thick aluminum welded hat channels for casters and a perimeter non-marking bumper.
• 5” plate type casters, two rigid and two swivel with brakes.
• Lifetime warranty, excluding casters.

SecoSelect ORV-3-1818-X Specifications

• GENERAL: Rack shall be all aluminum construction and shall be fully welded.
• BASE: Base shall be .100 Aluminum and shall be reinforced with .100 aluminum hat-channels. Casters through bolt base and hat-channels.
• POST: Posts shall be constructed using 1” square tubing of 6063 – T1 alloy. This alloy shall have a wall thickness of .065”. Two 3/4” reinforcement rods are welded between the posts for rigidity. Each post is arched for maximum strength.
• SLIDES: Slides shall be constructed using .100” thick aluminum with a raised bead. Slides are welded to rack posts.
• CASTERS: Rack shall come complete with 4-5” nonmarking plate casters, 2 rigid and 2 swivel. Casters shall have a weight capacity of 200 lbs each.
• TRAY CAPACITY 18” X 26” / 18” X 14” : 18 / 36
• PAN CAPACITY 12” X 20”: 17
• HEIGHT DIM: 64 1/2”
• WIDTH DIM: 20 5/8”
• DEPTH DIM: 26 1/4”
• SHIP WEIGHT : 65
