NORLAKE Fast-Trak® Walk-ins
STANDARD FEATURES:
- Unlimited lengths in 1' increments
- Available in widths of 6’, 7’, 8’, 9’, 10’, 11’ & 12’
- Heights: 6'7", 7'7" and 8'7" with floor, 7'4" and 8'4" floorless for single compartment and combinations
- Heights: 7’7” and 8’7” combination with floor freezers and less floor coolers with 4-3/8” foam sealers
- Indoor or outdoor models
- Split Pak™ Pre-Assembled Remote Refrigeration Systems (ordered separately)
- Temperatures:+35˚F, -10˚F, -20°F
- Full 4” thick panels foamed-in-place with EPAcompliant polyurethane insulation
- 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
- Smooth aluminum interior floor (models with floor)
- Floorless models supplied with NSF listed vinyl sealers
- 26”, 30” or 36” wide self-closing doors with FastTrak® door frame
- Deadbolt locking handle with independent key/pad lock feature and inside safety release
- Two heavy duty cam-lift hinges per door, top hinge field adjustable with locking set screw
- Spring loaded hinge
- Spring actuated door closer
- Magnetic gasket
- Digital thermometer and light switch
- Floor double sweep gasket
- Perimeter door heater wire
- Heated air vents standard in freezer door sections
- High output low profile LED light positioned above door to prevent interference with shelving or product
- NSF, UL flame spread 25 or less for all foam cores on all panels; UL and CSA electrical listing on door sections
- UL & C-UL electrical listing on refrigeration systems **
- City of Houston listed
- CN UL flame spread listed
- California State listed
- Oregon State listed
- USDA accepted
- 15 year panel warranty
- 18 months parts and labor warranty
OPTIONAL FEATURES:
- Outdoor membrane roof systems
- Door rain hoods
- Interior and/or exterior 30” high stainless steel or 1/8" aluminum diamond tread door kick plates
- Exterior ramp for floor models
- Interior ramps (30" & 36" wide) for floor models
- Leak detector/alarm (may be a requirement in some areas)
- Extra LED lights (shipped loose)
- Secure Guard™ Lock high security locking system
- Strip curtains (shipped loose)
- Non-skid floor strips (shipped loose)
- Shelving systems
- 1-5/8" screed for use with 5/8" tile after walk-in installation
- 14" x 24" viewport
From The Manufacturer

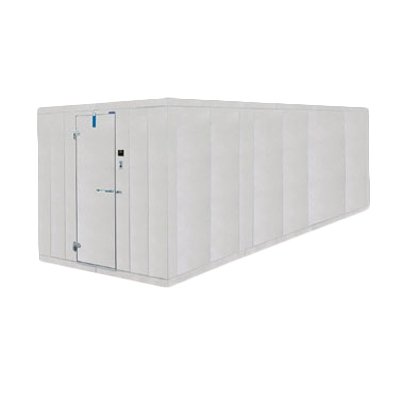

Fast-Trak™ Outdoor Walk-In, 10' x 12' x 8'-7" H, smooth aluminum interior floor, 26 gauge embossed coated steel interior & exterior finish, membrane roof, self-closing door, locking deadbolt handle
