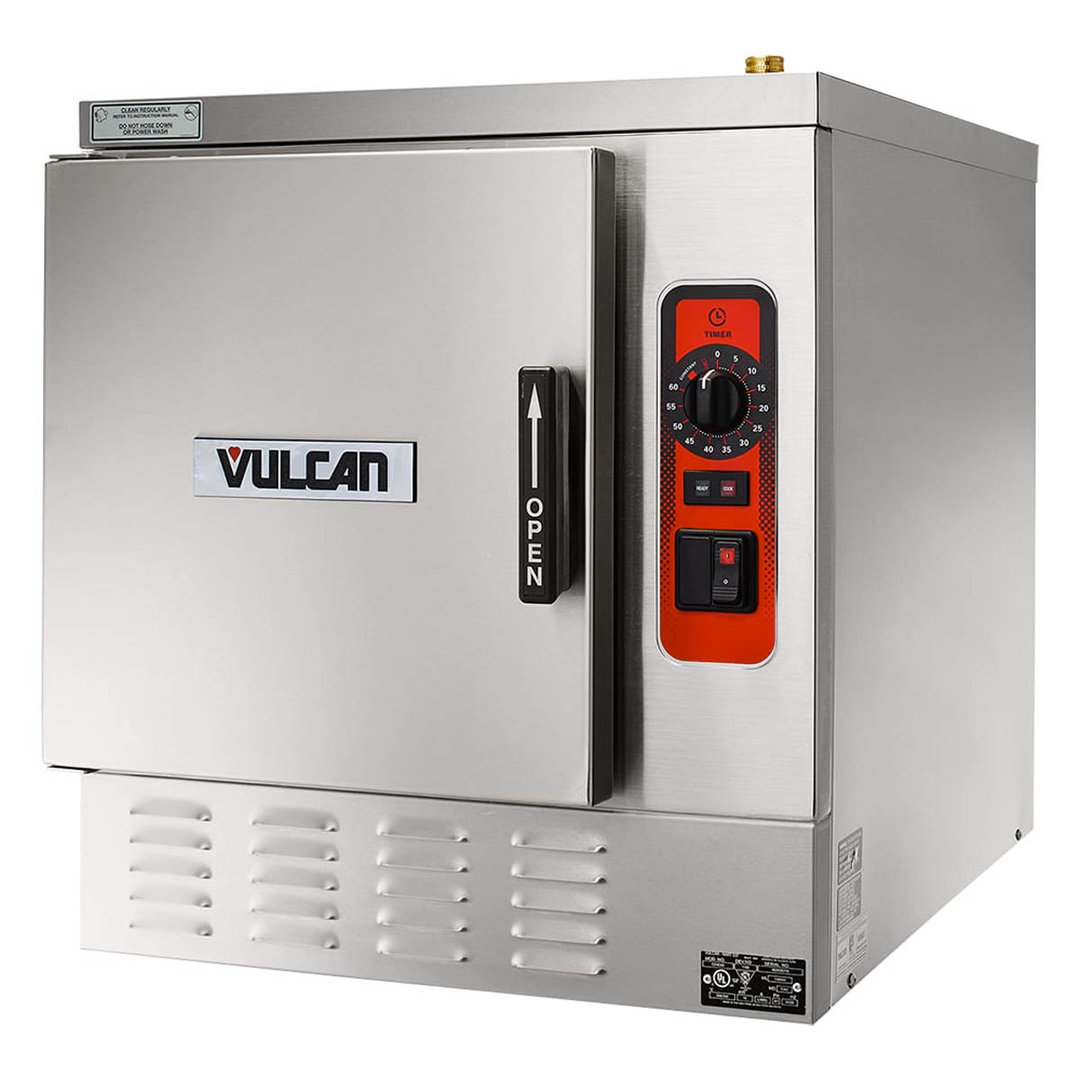

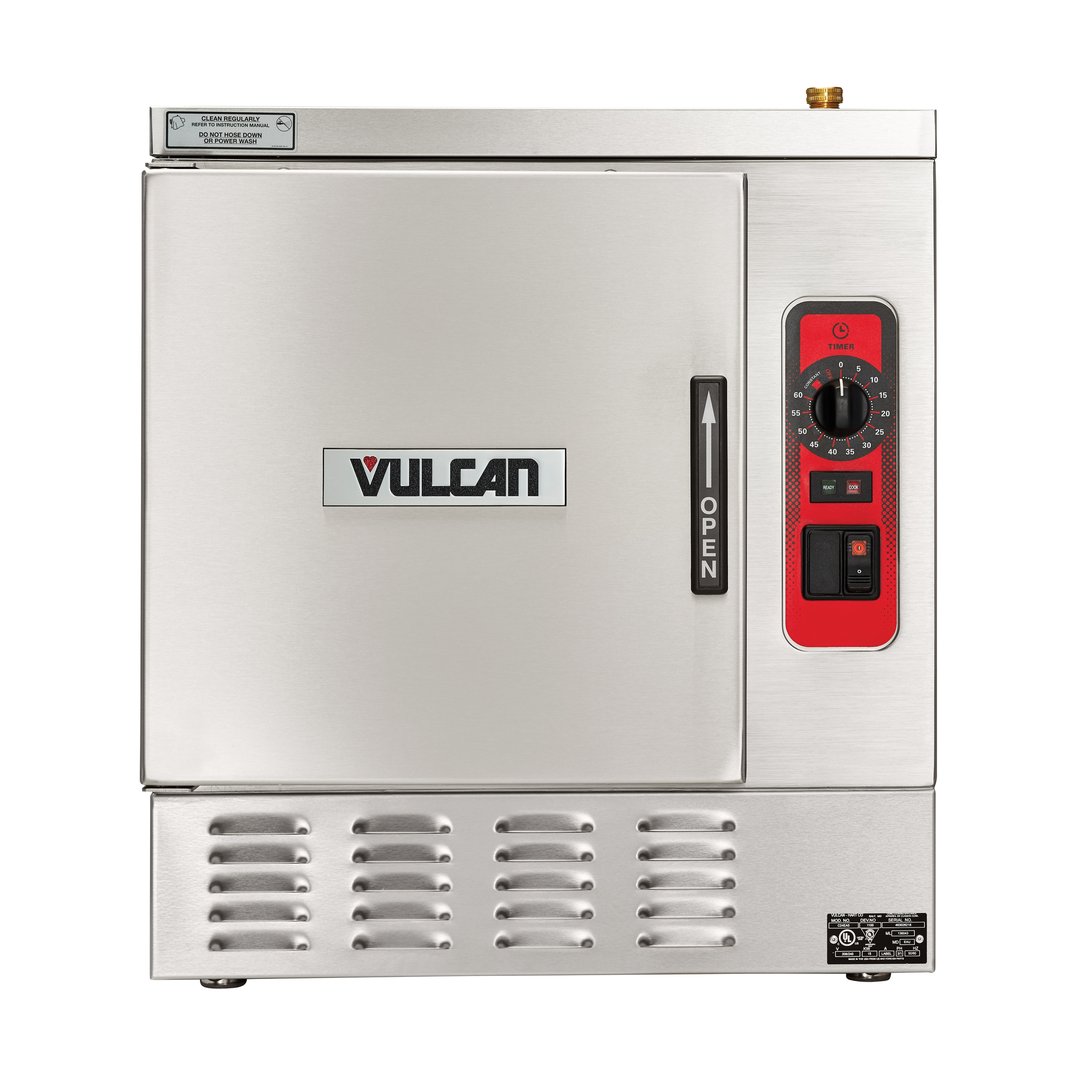

Vulcan C24EA PLUS SERIES ELECTRIC COUNTER CONVECTION STEAMER
SPECIFICATIONS
Single compartment electric convection steamer. Professional
Controls with 60-minute timer, buzzer and constant steam feature,
cook/ready lights and power switch. High output stainless steel
generator with SmartDrain and Powerflush along with 2-speed
staged water fill for superior heat-up and steam quality. Stainless
steel exterior and cooking compartment with coved interior
corners. Heavy duty door and door latch mechanism with door
gasket guard. Shipped for 208/60-50/3 electrical service. Can
be field converted to 208/60-50/1, 240/60-50/3 and 240/60-50/1.
Split water line connection. 1 1⁄2" NPT drain connection.
Exterior Dimensions:
C24EA3-LWE: 3 pan: 24"w x 33"d x 19 1⁄2"h.
C24EA5-LWE: 5 pan: 24"w x 33"d x 26"h.
STANDARD FEATURES
High output stainless steel steam generator.
Shipped for 208/60-50/3 electrical service. Can be field converted
to 208/60-50/1 and 240/60-50/3 and 240/60-50/1.
Smart Drain System (timed drain) with PowerFlush.
Professional controls with 60-minute timer, buzzer and constant
steam feature, cook/ready lights and power switch.
Illuminated power switch with cook and ready lights
Cord strain relief.
Stainless steel exterior and cooking compartment with coved
interior corners.
Heavy duty door and door latch mechanisms with gasket guard.
Split water line connection. 1 1⁄2" NPT drain connection.
One year limited parts and labor warranty.
OPTIONS
SonicSafe™ Ultrasonic Scale Prevention for automatic protection
against mineral buildup, includes second year extended limited
parts and labor warranty.
Second year extended limited parts and labor warranty contract.
SERVICE CONNECTIONS:
ELECTRICAL CONNECTIONS: Field Wire Electrical
Connection 1 1⁄4" (32 mm) K.O. service entrance.
DRAIN: 1 1⁄2" IPS piped to open drain. No solid connections.
60" length before open air gap opening and not more than two

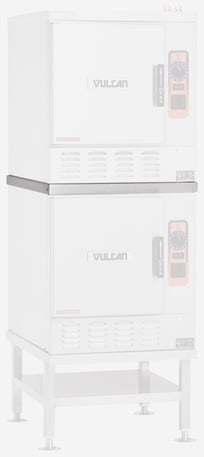

bends or elbows. Note: Stacked units must have independent
drains, do not connect together.
GENERATOR WATER SUPPLY: 3⁄4" (19 mm) male NSHT to
generator, flow rate 4 gpm @ minimum 20 to maximum 60 psi.
(138-414 kPa) treated water.
CONDENSING WATER SUPPLY: 3⁄4" (19 mm) male NSHT to
condenser, flow rate 4 gpm @ minimum 20 to maximum 60 psi.
(138-414 kPa) untreated water.
From The Manufacturer
Convection Steamer, countertop, electric, 1 compartment, 24" wide, (5) 12" x 20" x 2-1/2" pans capacity, high output stainless steel steam generator with Timed Smart Drain & Powerflush, professional controls with 60-minute timer, buzzer & constant steam feature, cook/ready lights & power switch, split water lines, stainless steel interior & exterior, leveling feet, UL EPH Classified, cULus
