A Hoshizaki ice machine started sounding its 3-beep alarm within minutes of being reconnected after a construction crew moved it out of the way and then moved it back. The compressor ran, the fan ran, water flowed continuously, and no ice formed.
A construction crew moved a Hoshizaki ice machine out of a room, reconnected it when the work was done, and left the site. Within minutes, the unit started beeping three times and kept running water that never turned into ice. What followed was a real diagnostic case that ended, honestly, without every question fully answered.
TL;DR
- A Hoshizaki 3-beep alarm means the freeze cycle ran too long for 2 consecutive cycles, and the control board locked the unit out as a safety measure. It’s a backup timer alert, not a diagnosis of one specific part.
- Water that keeps flowing continuously through the freeze cycle and never stops narrows the cause to a short list: an inlet water valve that isn’t sealing shut, or a faulty control board.
- If a machine was recently moved, tilted, or laid on its side, it needs time to rest upright before restarting; confirm the exact wait time for your model with Hoshizaki support.
- To reset the alarm, press the physical reset button on the control board while the power stays on. Beeping alone won’t clear itself.
The Incident: A Machine Moved for Construction, Then 3 Beeps
The incident started with a straightforward equipment move. A construction crew relocated a Hoshizaki ice machine out of a room to complete concrete work, moved it back into position afterward, reconnected the water line and power, and left the site.
The unit sounded a 3-beep alarm within minutes. An inspection turned up an unusual combination of symptoms: the compressor ran, the condenser fan ran, and water flowed continuously, yet no ice ever formed, and the machine never made it through a complete freeze cycle.
One detail matters before the real diagnostic work starts. The operator kept the machine clean, vacuuming the condenser and air filter on a routine schedule. That rules out the most common cause of ice machine trouble, a dirty condenser restricting airflow. This combination of issues pointed the investigation toward something more specific: the freeze-cycle symptoms that followed.
What “3 Beeps” Officially Means (and What It Doesn’t)

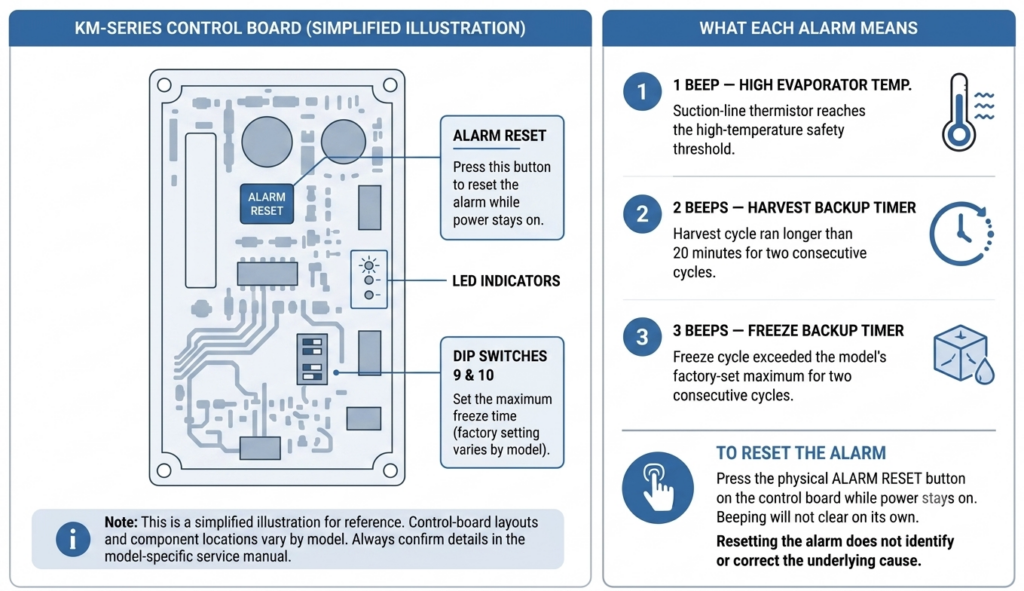

The official meaning of “3 beeps” comes straight from Hoshizaki’s own control-board documentation, not from guesswork. The alarm buzzer communicates in a fixed code on Hoshizaki KM-series crescent cubers built around Hoshizaki’s standard solid-state control board.
| Beeps | Alarm | What Triggers It |
| 1 beep | High Evaporator Temperature | Suction-line thermistor reads approximately 127°F (±7°F) (52.778°C (± 3.89°C) tolerance, per Hoshizaki’s official specification) at the evaporator outlet |
| 2 beeps | Harvest Backup Timer | Harvest cycle exceeds 20 minutes for 2 consecutive cycles |
| 3 beeps | Freeze Backup Timer | Freeze cycle exceeds the model’s factory-set maximum for 2 cycles in a row |
Hoshizaki America’s own training documentation confirms this same breakdown.
- 1 beep every 3 seconds signals the high evaporator temperature safety.
- 2 beeps signal the harvest cycle backup timer: the harvest cycle ran over 20 minutes for 2 consecutive cycles.
- 3 beeps signal the freeze cycle backup timer: the freeze cycle ran longer than the model’s factory-set maximum, which can be 50, 60, 70, or 75 minutes, depending on the model and its DIP-switch setting.
The key point is that a 3-beep alarm is a backup safety timer, not a diagnosis of one specific component. It tells you that the freeze cycle failed to complete within the permitted time on 2 consecutive cycles. It narrows the search from “something is wrong” to “the freeze cycle is the problem.”
Hoshizaki’s service manual lists several possible causes of a 3-beep freeze-timer alarm: a float switch stuck closed, an inlet water valve leaking, a hot gas valve leaking, a pump not pumping, an expansion valve not feeding properly, a low refrigerant charge, or an inefficient compressor.
One terminology point is also worth keeping straight. Technician discussions sometimes use informal names such as “harvest solenoid.” Still, Hoshizaki’s official documentation identifies the relevant components by their specific names, including the Inlet Water Valve, Hot Gas Valve, Drain Valve, or Pump Motor. Using the manufacturer’s terminology is preferable when diagnosing a machine or communicating with a service technician.
Diagnostic Path #1: Water That Never Stops Flowing
Diagnostic path #1 begins with the specific symptom that distinguishes this case from a generic 3-beep call: water continued to flow through the freeze cycle, even though the compressor and fan were running normally, and no ice ever formed.
Hoshizaki’s troubleshooting chart for continuous water supply during the freeze cycle narrows the likely causes to two. The first is the inlet water valve diaphragm failing to seal shut; check for water leaking past the valve with the ice maker powered off, and replace the valve if you confirm a leak. The second is a defective control board.
This makes the continuous-water symptom far more actionable than the 3-beep code alone. The beep code establishes that the machine failed to complete its freeze cycle within the permitted time on 2 consecutive cycles. The additional observation that water kept flowing during freeze points the technician toward 2 specific components: the Inlet Water Valve and the Control Board.
The distinction matters because the 3-beep alarm itself does not prove that either component has failed. It identifies the failed cycle; the continuous-water symptom provides the more specific diagnostic direction.
Diagnostic Path #2: Did Moving the Machine Cause This?
Diagnostic Path #2: Did Moving the Machine Cause This? Moving, tilting, or laying a compressor-based ice machine on its side can create a refrigeration-system risk. However, the available evidence does not prove that the construction move caused this Hoshizaki 3-beep alarm.
The key concern behind the moving-based refrigeration issues is compressor oil migration: tilting can move lubricating oil away from the compressor sump, and restarting the compressor before the oil returns to its proper location can result in inadequate lubrication and possible compressor damage.
General refrigeration guidance recommends allowing a moved or tilted compressor-based unit to stand upright before restarting it. The appropriate rest period depends on the equipment and how far or how long it remained tilted.
Typical waiting times range from several hours to 24 hours, but those figures do not represent Hoshizaki-specific requirements. Operators who need an exact restart procedure for a Hoshizaki ice machine should confirm the manufacturer’s instructions for the specific model or contact Hoshizaki Technical Support (1-800-233-1940).
The move also changes the troubleshooting context. Construction crews or movers aren’t required to have refrigeration-specific training to transport and restart commercial ice machines correctly. An accurate diagnosis is easier to reach when the equipment owner keeps a well-documented relocation process. It’s worth involving the owner or Hoshizaki support before relating a failure to the moving process.
The move remains a relevant diagnostic clue in this case, not a confirmed cause. The machine developed the 3-beep alarm after relocation, but the documented symptoms don’t point to compressor oil migration. The stronger diagnostic evidence came from the continuous water flow during the freeze cycle, which Hoshizaki’s troubleshooting chart links to the Inlet Water Valve or Control Board.
The Ending: Sometimes It’s Leveling
The ending of this case is honest: a technician resolved the problem by leveling the machine, but the available evidence does not explain why that worked. A full teardown found nothing conclusively wrong. Leveling fixed the issue, even though the operator had checked the machine with a leveling tool beforehand. Word passed along afterward was simply that the unit needed leveling.
No confirmed mechanism explains why leveling worked. Hoshizaki’s troubleshooting documentation for this control-board family does not list an out-of-level machine as a cause of either the 3-beep freeze timer alarm or continuous water flow during the freeze cycle. That absence is worth stating plainly rather than filling the gap with speculation.
One possible explanation, offered here as a hypothesis and not a documented fact, involves the float switch: a slightly out-of-level machine changes the water level the float switch sees during the freeze cycle, which changes when the control system recognizes that the freeze cycle finished. Hoshizaki’s documentation does not describe this mechanism, and nothing from this specific service call confirms it.
Sometimes a repair succeeds while the exact mechanism remains uncertain. That’s a normal part of field troubleshooting, not a weakness in the diagnostic process. The most accurate conclusion in this case is also the simplest one: leveling resolved the problem, but the available evidence does not establish why.
What to Check Before Calling a Technician
The checks before calling a technician follow a logical order, moving from the simplest steps to those that require diagnostic equipment.
- Step 1: Reset the alarm correctly. To reset the Hoshizaki ice machine, press the alarm reset button on the control board while the unit stays powered on. The beeping won’t clear on its own.
- Step 2: Check the float switch. Make sure the float switch moves freely through its full range and shows correct continuity as it travels. Clean off any scale buildup.
- Step 3: Inspect the inlet water valve if water never stops flowing during the freeze cycle. Check for a diaphragm that fails to seal shut, with the unit powered off.
- Step 4: Confirm adequate rest time if the unit was recently moved or tilted. Let the machine stand upright for an appropriate period, following the manufacturer’s guidance for the specific model. Don’t assume a parts failure immediately.
- Step 5: Make sure that the machine is level, even though Hoshizaki’s troubleshooting documentation does not identify an out-of-level unit as a documented cause of the 3-beep alarm.
Work through these checks in order, starting with the simplest observations, before moving on to components that may require more technical evaluation.
When to Call a Technician
Call a technician if any of these 3 situations appear:
- The 3-beep alarm returns after a proper reset and you’ve completed the checklist above.
- The float switch and inlet water valve appear to be operating normally, but the machine still triggers a freeze timer alarm. These symptoms point toward the control board or a refrigerant-side issue that needs gauges and diagnostic equipment to isolate.
- The machine was recently moved, tilted, or transported, and you are unsure whether it was restarted correctly or whether internal damage may have occurred.
None of these situations automatically indicate a major failure. They require testing that goes beyond routine operator checks.
Preventing This After Future Moves
You can prevent relocation-related problems after future moves with 2 simple practices. Both are cheaper than a service call.
- Loop in a qualified refrigeration technician or the equipment owner before a non-refrigeration crew reconnects and restarts a compressor-based unit. Don’t assume “unplug, move, replug” is safe on its own.
- Treat every move as a controlled restart. Build in a deliberate rest period before powering on any time a unit gets tilted or moved. Follow the manufacturer’s model-specific rest time rather than relying on generic appliance guidance.
FAQs About 3 Beeps and No Ice Troubleshooting
What do 3 beeps mean on a Hoshizaki ice machine?
Three beeps mean the freeze cycle ran longer than the machine’s maximum allowed time for 2 cycles in a row, and the unit locked itself out as a safety measure. It’s a backup-timer alarm, not a diagnosis of one specific failed part.
Why did leveling fix a problem that looked electrical?
It isn’t fully clear, and Hoshizaki’s own documentation doesn’t list leveling as a cause for this alarm. Sometimes a fix works in the field without a confirmed mechanism, which is a normal, if unsatisfying, part of troubleshooting.
How do I reset a Hoshizaki 3-beep alarm?
Press the physical alarm reset button on the control board while the unit’s power stays on. The alarm won’t clear on its own.
Can moving an ice machine cause it to stop working?
Yes, potentially. Tilting or laying a compressor-based unit on its side can displace the oil that lubricates the compressor, and restarting it before that oil settles back can cause problems. Letting the unit rest upright before restarting it is standard practice for compressor equipment. Confirm the exact wait time with Hoshizaki support before restarting a moved unit.
Conclusion: When the Fix Doesn’t Match the Diagnosis
This case worked because the process stayed disciplined, not because every question got answered. The beep code narrowed the problem to a failed freeze cycle. The continuous water flow narrowed it further to the inlet water valve or the control board. The recent move raised a real, documented risk- compressor oil migration- without ever being confirmed as the actual cause here. And the repair that ultimately worked, leveling the machine, isn’t something Hoshizaki’s own documentation connects to this alarm at all.
That’s the honest takeaway: a correct diagnostic process doesn’t always end in a fully explained mechanism, and that’s not a failure of the process. What matters is working through the checks in order, reaching for the manufacturer’s documentation instead of guesswork, and knowing when a symptom calls for a technician with gauges rather than another reset. If your machine was just moved and it’s doing anything similar- beeping, running water that won’t stop, or simply not making ice- start with the checklist above before assuming the worst, and don’t hesitate to confirm the specifics with Hoshizaki support for your exact model.
