A Hoshizaki ice machine that keeps jamming during harvest usually isn’t failing in one place. Four unrelated mechanical issues on a Crescent Cubers can produce the same visible symptom, and each one needs a completely different repair. These 4 root causes include spray tube misalignment, harvest timing set too short, a leaking drain valve, and evaporator plate separation.
TL;DR
- Four unrelated failures can cause harvest jamming on a Hoshizaki Crescent Cuber, and mistaking them for one problem can waste a service call.
- Water streaming unevenly across the plates during harvest often points to spray tubes that are misaligned, clogged, or both, most common right after cleaning or a parts swap.
- Ice that comes out thin, hollow, or uneven despite clean, aligned spray tubes points to a harvest timer cutting the cycle short.
- Water leaving the drain steadily while the machine sits in freeze, not harvest, points to a leaking drain valve, often called a “dump valve.”
- A physical gap in the evaporator plate itself points to a disputed cause that Hoshizaki’s own documentation doesn’t currently confirm.
Why “Ice Jamming” isn’t One Problem
Ice jamming isn’t one problem, because it can come from 4 mechanically unrelated causes, each producing the same visible symptom during harvest.
- Spray tube misalignment or blockage keeps water from distributing evenly across the plate.
- A short harvest timer cuts the release window before the ice lets go.
- A leaking drain valve allows water to escape at the wrong point in the cycle.
- A separated evaporator plate is a physical, field-reported possibility, not a confirmed Hoshizaki-documented failure mode.

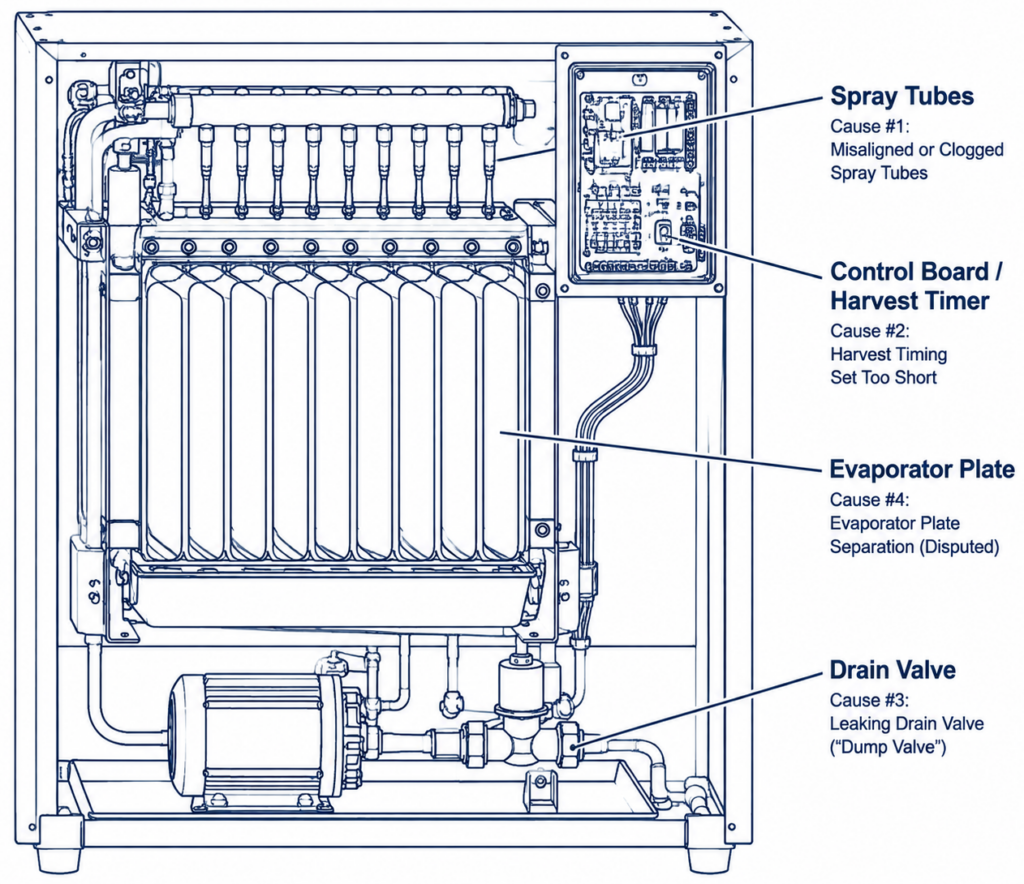

This 4-cause framework covers 4 technical areas: spray tubes, harvest timing controlled by the control board, the drain valve, and the evaporator plate. None of the four causes points to the same repair. Match the machine’s behavior to each cause, then use the Quick Diagnosis Table for a fast lookup.
Cause #1: Misaligned or Clogged Spray Tubes
Misaligned or clogged spray tubes disrupt the even water coverage that lets ice release cleanly off the evaporator plate during harvest. Both problems produce the same symptom, but they develop through different mechanisms and are diagnosed the same way: by watching how water flows during an active harvest cycle.
Why This Happens: Alignment problems most often appear after routine service. A tube removed for cleaning, or replaced with a sanitized spare during turnover, can be reinstalled slightly out of position. This misplacement can send water down the outer face of the evaporator plate instead of distributing it evenly across the freezing surface.
Clogging creates a similar problem through a different mechanism. Mineral scale or trapped debris narrows the spray openings, leaving part of the evaporator plate with reduced water coverage so that the section of ice cannot release evenly with the rest.
Hoshizaki officially refers to this component as Spray Tubes, as shown in the Modular Crescent Cuber Service Manual’s construction diagrams for the MAJ, MWJ, and MRJ model families, including the current KM-520MAJ.
How to Diagnose It: Watch the machine during an active harvest cycle. Check whether water reaches the full evaporator plate evenly across its surface. Suspect misalignment or clogging if water consistently sheets down the outer face of the plate or leaves part of the freezing surface with noticeably less coverage, especially after cleaning, descaling, or replacing spray tubes.
For the complete diagnosis, fix, and prevention steps for this specific cause, see Ice Machine Jamming After Cleaning? Check Your Spray Tube Alignment First.
Cause #2: Harvest Cycle Timing Set Too Short
A harvest cycle timed too short ends the release window before ice fully separates from the evaporator plate, even when the spray tubes and drain valve are working properly.
Why This Happens: Ending the harvest period before the cubes fully release can cause the remaining ice to jam the next harvest cycle, even though the water system is operating normally.
Hoshizaki controls harvest timing through the S4 DIP switch bank on the control board (Section III.C.2, Harvest Time). Its Freeze-Up Diagnostic Table also identifies a Harvest Timer (S4 DIP switch 1 & 2) set too short as a documented cause and separately lists a Harvest Pump Timer not in factory default position as another possible contributor.
How to Diagnose It: Rule out spray tube problems first. Compare water coverage during harvest before suspecting a timing issue because spray tube misalignment and clogging are both more common and easier to correct. Confirm the current S4 harvest timer setting before making any adjustment. Verify it against the factory setting for your specific model or consult Hoshizaki Technical Support.
Cause #3: A Leaking Drain Valve (the “Dump Valve”)
A leaking drain valve allows water to escape during the freeze cycle instead of sealing completely until harvest begins. The machine produces thin, hollow, or uneven ice that repeatedly jams during harvest as water slowly leaves the system.
Why This Happens: The Modular Crescent Cuber Service Manual (Section II.B, Short Freeze Cycle Diagnosis) links a short freeze cycle directly to drain-valve leak-by. Hoshizaki instructs technicians to check the drain valve for leakage before cleaning or replacing it if the water tank empties before the 5-minute minimum freeze timer finishes.
Hoshizaki officially identifies this component as the Drain Valve (DV). Many technicians and operators search for the term dump valve.
How to Diagnose It: Look for water continuously leaving the drain while the machine remains in the freeze cycle. Ignore the normal drain flow during harvest and focus instead on water escaping when the drain valve should be fully closed. That freeze-versus-harvest distinction is the clearest way to separate this cause from the others.
The companion guide, The Hoshizaki Dump Valve Failure Nobody Talks About, covers the complete diagnosis, repair sequence, and replacement procedure for this cause.
Cause #4: Evaporator Plate Separation (Disputed)
Evaporator plate separation remains a disputed, field-reported explanation for harvest jamming rather than a confirmed Hoshizaki-documented failure mode. You cannot identify it by watching a normal operating cycle, unlike the other 3 causes.
Why This Happens: Technicians who discuss this issue do not agree on how often it occurs. Some report seeing the two plate halves separate on relatively young machines, while others with decades of experience describe it as extremely uncommon and usually limited to much older equipment.
The Hoshizaki Modular Crescent Cuber Service Manual does not identify evaporator plate separation as a documented cause in the Service Diagnosis, Control Board Check, Diagnostic Tables, or Freeze-Up Checklist sections. The Freeze-Up Checklist separately includes a check for properly positioned evaporator separators, which refers to a different component than separation of the evaporator plates themselves.
How to Diagnose It: Inspect the evaporator plate during teardown rather than relying on cycle behavior. Look for a visible physical gap between the two plate halves. Eliminate this cause and continue diagnosing the documented water-distribution, harvest-timing, or drain-valve faults described above if no separation is present.
How to Tell Them Apart: A Quick Diagnostic Table

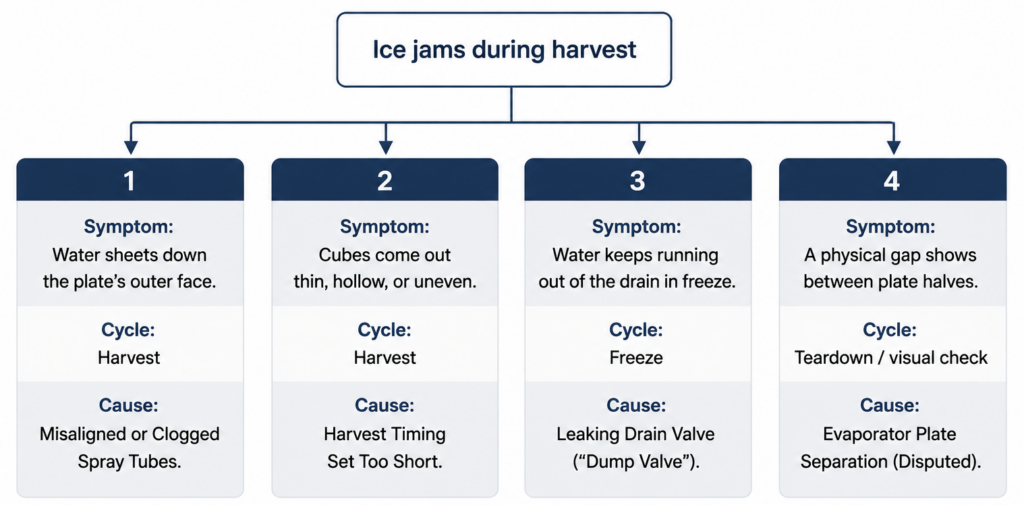

Telling the 4 causes apart comes down to matching one observed symptom to its most likely cause. Follow the symptoms illustrated in the flowchart below to narrow the diagnosis in seconds.
The quick diagnosis table expands each row from the flowchart with model-specific detail, then links to the relevant cause section for a closer look.
Hoshizaki Ice Jamming: Quick Diagnosis Table
| Symptom Observed | Cycle Where It Appears | Likely Cause |
| Water runs down the evaporator plate’s outer face instead of distributing evenly across it. | Harvest | Cause #1: Misaligned or Clogged Spray Tubes |
| Cubes remain thin, hollow, or uneven despite even water coverage and properly aligned spray tubes. | Harvest | Cause #2: Harvest Timing Set Too Short |
| Water keeps running out of the drain during the freeze cycle. | Freeze | Cause #3: Leaking Drain Valve (“Dump Valve”) |
| A visible physical gap appears between the evaporator plate halves during teardown. | Teardown / Visual check | Cause #4: Evaporator Plate Separation (Disputed) |
When to Call a Technician
Call a technician when the symptoms don’t line up with a single cause, more than one symptom appears at the same time, or the jamming continues after a repair that should have resolved it.
- Multiple symptoms appearing together signal that more than one cause is active, and the diagnostic table won’t identify that combination on its own.
- A repair that doesn’t stop the jamming after a few cycles points toward a second, unaddressed cause rather than the original diagnosis.
- Symptoms that don’t match any of the four patterns above, especially those involving the refrigerant circuit or the control board, require diagnostic tools beyond a visual inspection.
FAQs About Ice Machine Jamming During Harvest
What’s the difference between a spray tube problem and a drain valve problem?
The two point to different cycles entirely. Spray tube problems show up as water failing to distribute evenly across the evaporator plate during harvest; drain valve problems show up as water escaping during freeze.
Why does my Hoshizaki ice machine keep jamming during harvest?
Four unrelated mechanical issues produce this same symptom: spray tubes that are misaligned or clogged, a harvest timer cutting the cycle short, a drain valve leaking during freeze, or, less certainly, a disputed evaporator plate separation. Pinning down which one applies determines the actual fix.
Can more than one of these causes happen at the same time?
Yes. Nothing mechanically links these 4 causes so that a single unit can have misaligned spray tubes and an undersized harvest timer running at once. Fixing only one is why jamming sometimes continues after a repair that should work.
Is evaporator plate separation a common Hoshizaki problem?
There’s no settled answer. Technicians themselves disagree on how common it is. Hoshizaki’s reviewed service documentation doesn’t identify evaporator plate separation as a documented failure mode.
Conclusion
Identifying the underlying cause before any repair begins makes ice jamming during harvest easier to solve. Matching the machine’s behavior to the correct diagnostic pattern is the foundation of effective Hoshizaki ice machine troubleshooting. Spray tube alignment, harvest timing, drain valve condition, and evaporator plate separation each leave a distinct signature.
