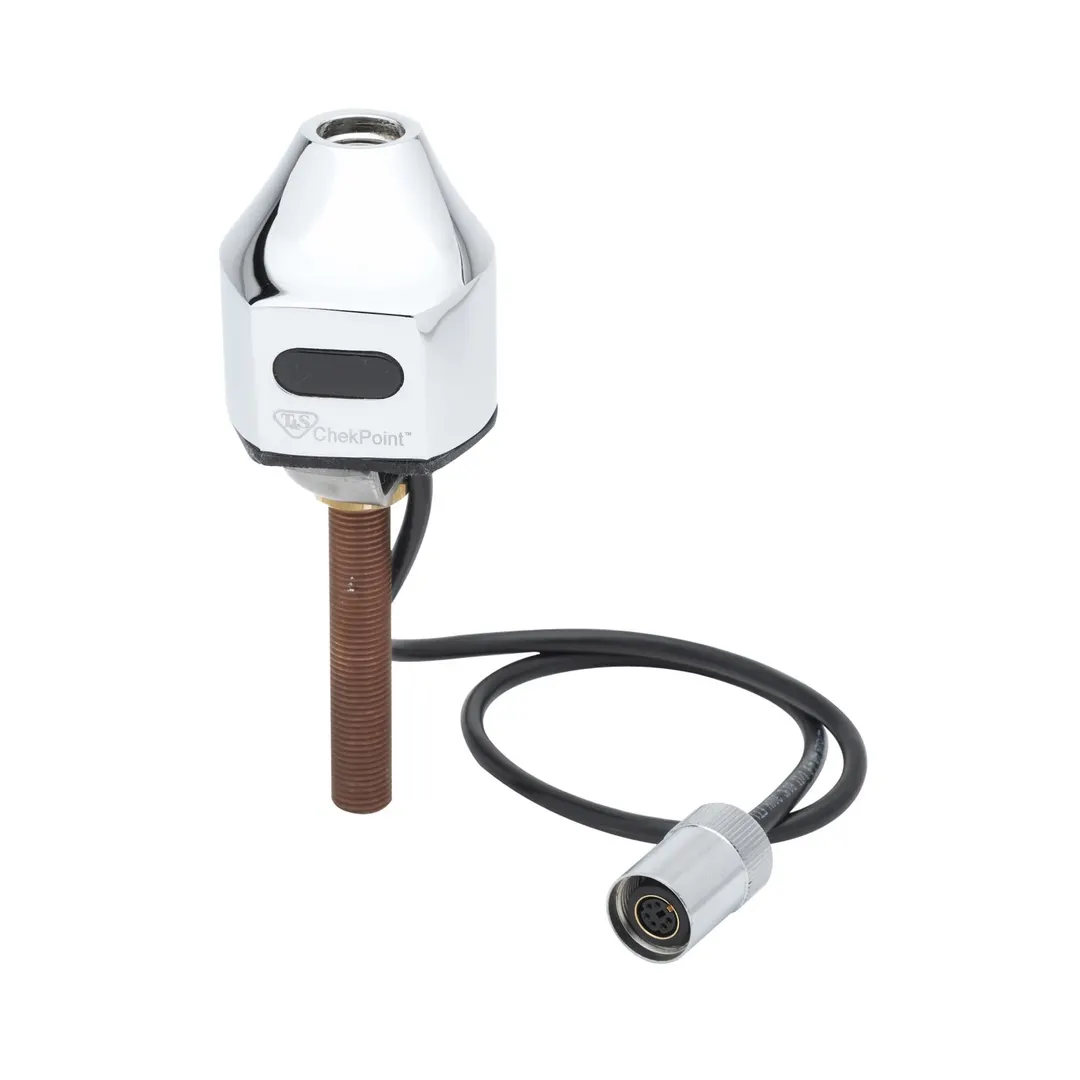

T&S Brass EC-3100-LN Electronic Sensor Faucet
General Info
Single hole deck mount electronic sensor faucet with polished chrome plated brass body, 3/8" NPT female outlet (less nozzle), AC/DC control module with internal flow control setting switches, temperature control mixing valve with check valves and 18" flexible stainless steel supply hoses with 3/8" compression connections.
T&S Brass EC-3100-LN Features
- Single hole deck mount Faucet w/ polished chrome plated brass body
- 3/8” NPT female outlet accepts T&S rigid goosenecks
- Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
- Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
- Optional metering mode
- Plug in AC tranformer or (4) AA batteries (DC) power options
- Mechanical temperature mixing valve w/ check valves
- 18” flexible stainless steel supply hoses w/ 3/8" compression connections
- Low battery LED indicator light
- Material: Polished chrome plated brass body & gooseneck
T&S Brass EC-3100-LN Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate : 4.5 GPM [17.0 L/min] @ 60 psi [4.14 bar]
- Water Consumption :
- @10 sec = .75 gal [2.84 L]
- @15 sec = 1.13 gal [4.26 L]
- Other Details : See spec. sheet
From The Manufacturer
ChekPoint™Electronic Faucet, deck mount, less nozzle, 100-240 VAC adapter
