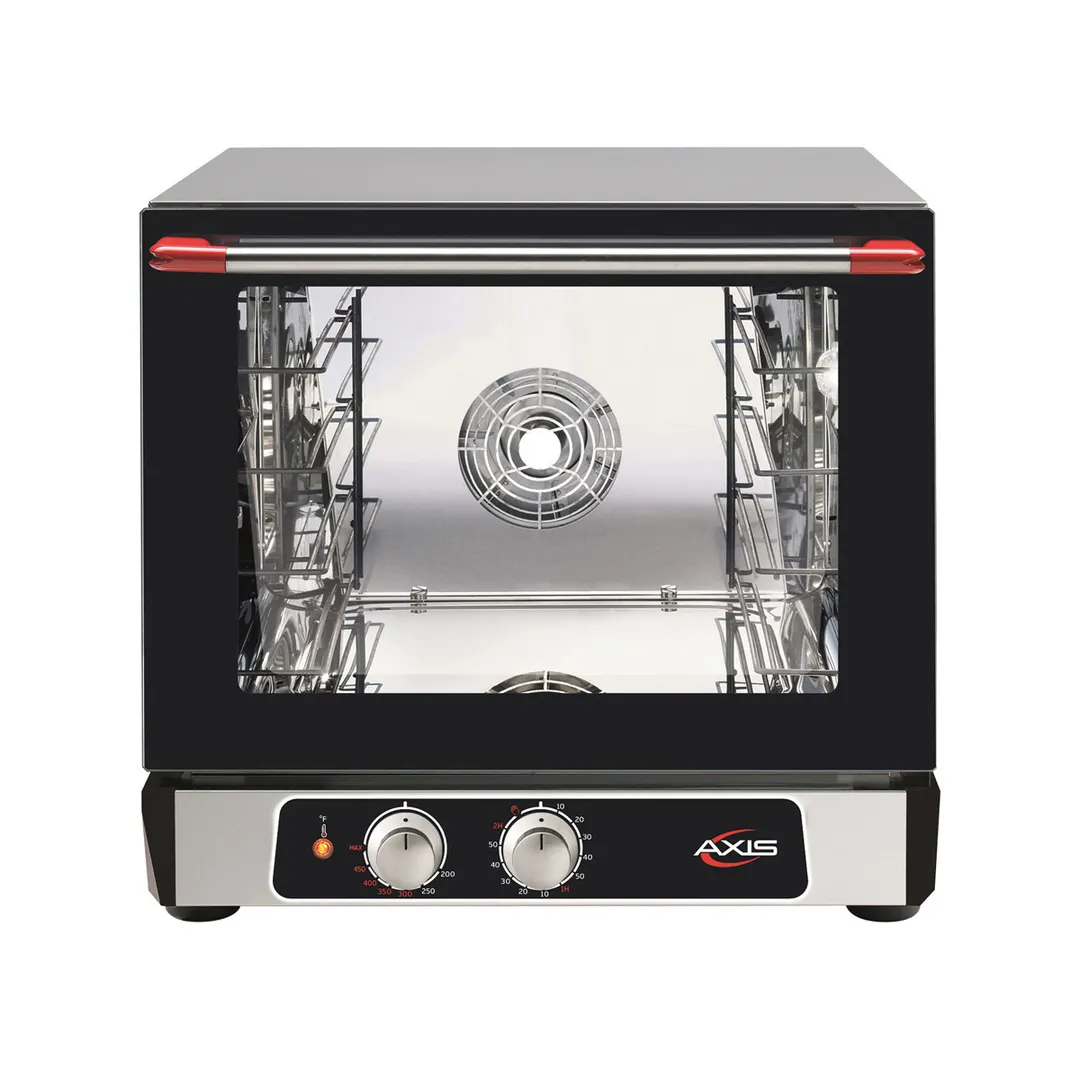

The Axis AX-514 Half Size Convection Oven
Axis AX-514 Features
- Advanced airflow design
- Manual control: 120 minute timer or continuous ON
- Interior halogen light
- Heavy duty stainless steel body construction
- “Cold Door” design with double pane glass
- Reinforced door hinges
- Oven door can support weight limit of 60 lbs.
- Oven cavity is insulated with ultra-high temperature fiberglass insulation
- 4 Stainless steel wire shelves
- Ovens can be staked (kit required)
- Warranty: 2 years parts & 1 year labor exclusive of lights, gaskets and glass
Axis AX-514 Specification
- Manual controls : Time, temperature
- Load capacity : 4 shelves for half size sheet pans
- High speed reversing fans : 1 (2,200 rpm)
- Space between shelves : 3" (75 mm)
- Power requirements : 2,700 Watts / 208-240 V / 60 / 1 Oven supplied with power cord only no plug
- Temperature : 86° - 500° F
- Equipped with : 120 minute timer - Signal at end of cycle
- Cavity size (inches) : 18.7" x 15.9" x 12.6" (WxDxH)
- Unit dimensions (inches) : 22.05” x 25.48” x 20.85” (WxDxH)
- Shipping dimensions (inches) : 23.63” x 26.77” x 21.65” (WxDxH)
- Net / Ship weight : 69 lb / 75 lb
From The Manufacturer
Axis Convection Oven, electric, countertop, 22-1/20'W x 25-12/25"D x 20-17/20"H, manual controls,120 minute timer, 86°-540°F temperature range, accommodates (4) half-size pans, 3" spacing, double-wall glass oven door, interior halogen light, (1) 2200 rpm fan, 2700 watts, 208-240v/60/1-ph, cord with NEMA 6-20P, ETL-Sanitation, cETLus
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
