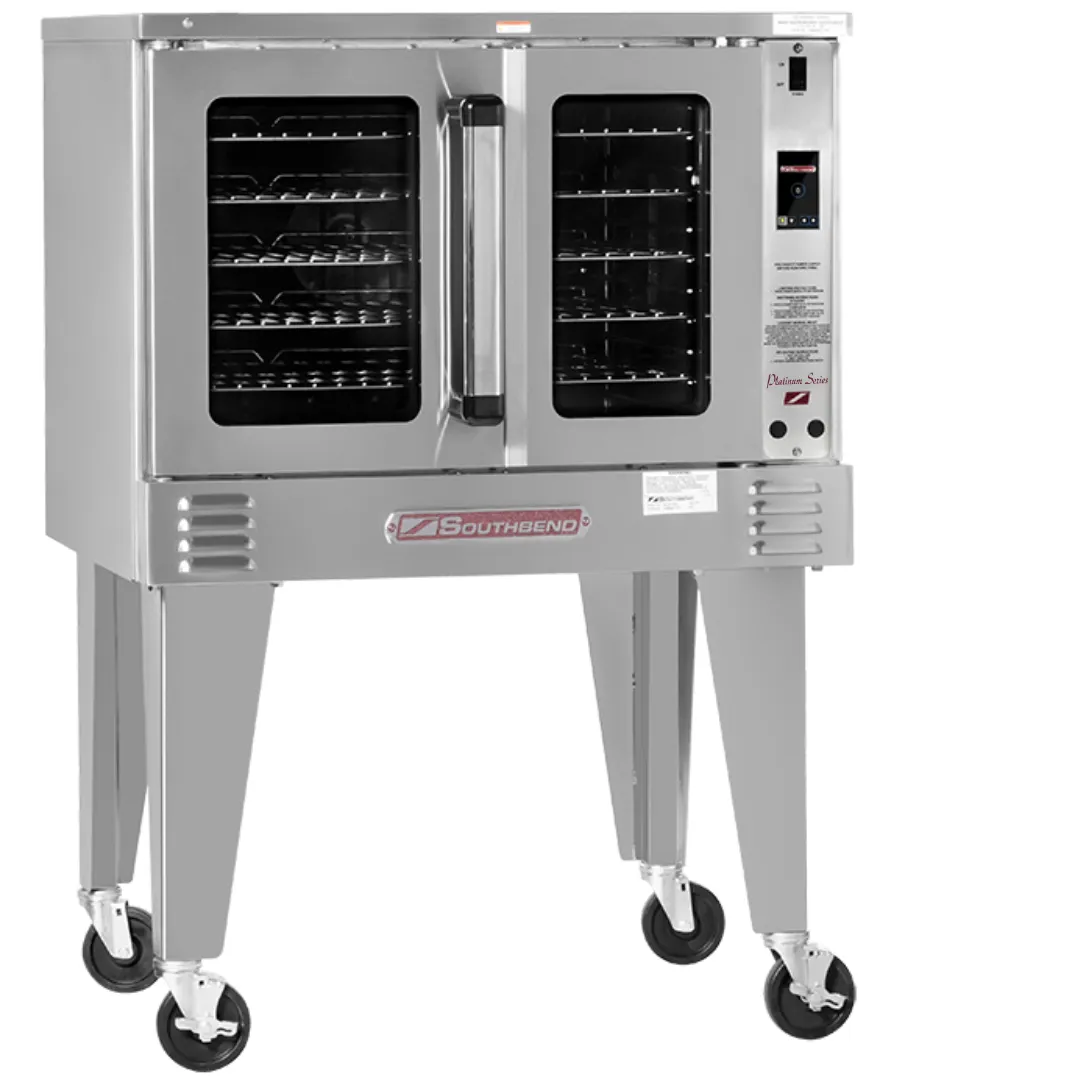

Southbend Gas Convection Oven

Patented, high efficiency, inshot burners
Touchscreen Controls : 150°F to 550°F temperature controller with 140°F to 200°F “Hold” thermostat. Digital display shows time and temperature. A fan cycle timer pulses the fan. Recipes can be created and used in oven group 'Rack' mode to cook multiple items at once on different timers.
Patented “plug-in, plug-out” control panel - easy to service
Slide out control panel for full view servicing
Stainless steel front, sides and top
Dependent doors with windows (Full 180° opening)
Energy saving high efficiency glass windows
Heat keeping dual door seal system
Coved, fastener-free, porcelain enamel finish interior
Stay cool heavy duty door handle
Soft Air, two speed, 1/2 hp, fan motor
11-position rack guides and 5 plated oven racks
Electronic ignition
Forced cool down fan mode
Interior oven lights
(1) year limited parts and labor warranty

Exterior Finish: Stainless steel front, sides, top and rear jacket.
Doors: Dependent doors with windows. Low emission glass, stainless steel construction, heavy-duty welded steel frame and 5/8” diameter full-length hinge pin.
Oven Interior: Porcelain enamel finish, coved, fastener free.
Rack and Rack Guides: Heavy-duty removable wire rack guides spaced on 1-5/8” centers offer 11 different rack positions. 5 wire racks provided with each oven.
Blower Fan and Motor: 1/2hp, 2-speed motor, 1710/1120 r.p.m
Oven Heating: The oven’s heating is regulated by an adjustable solid state thermostat control. Jet stream style burners direct flame towards rear of combustion chamber. Combustion products are drawn into oven interior and recirculated prior to venting.
Electronic Ignition: Hot surface ignitor with flame safety device.
Control Panel: Located on front, at right side of oven, away from heat zone. Slide out panel extends over 17” for easy servicing.
Interior Lights: Two 40 watt high temperature recessed lamps located within the oven cavity.
Legs: 26” Stainless steel, triangular legs standard.

“Do you need service? Is your product under warranty? Please fill out the form at the link below.”

Platinum Single Convection Oven, Gas 90,000 BTU's, Standard Depth, Touch Controls, Independent Doors
