High‑Velocity Grease Fan for Restaurant Ventilation
Keep your kitchen air clear and compliant with the GSV200, a robust grease fan that delivers up to 1,729 FPM of vertical discharge while maintaining negative pressure across the duct system.
Key Features
- Single‑phase, 1/5HP motor with 1,600 RPM and 1600 W power rating
- Cast aluminum housing, 3/16” thick, with grey hammerpaint finish for corrosion resistance
- Variable speed control and thermal overload protection for energy efficiency
- IP54 protection class and sealed ball bearings for reliable operation
- ETL‑listed (File No. 514733) and CE compliant, meeting UL 705 and ULC‑S645 standards
From The Manufacturer

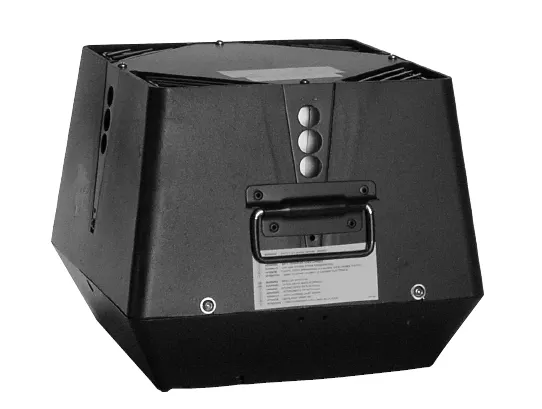

Enervex Grease Fan, 1x120VAC, 1600 RPM, 1/5HP (UL762), Item No: 133.0400.1200 - The GSV is part of a mechanical draft fan for intended use as part of a restaurant kitchen exhaust system and grease application. Ensures a negative pressure in the entire duct or vent system. Discharges vertically (horizontally, if side-wall mounted) at a high velocity. The fan housing is hinged and the top can be opened for easy service and access to stack. The GSV model is approved for temperatures up to 575°F (300°C). Exhaust fan for installation at the duct or vent termination point, vertical or side-wall mounted.
GSV 200-250-315: Single phase, split capacitor, totally enclosed, Class F insulated, IP54 Protection Class. Sealed ball bearings. Variable Speed. Thermal overload protection.
GSV 400-450: Three phase totally enclosed TEFC motor, Class H insulated. Sealed ball bearings. Variable Speed. Thermal overload protection.
The GSV 200-450 Grease Fan is ETL Listed in the U.S. and Canada under File No: 514733
