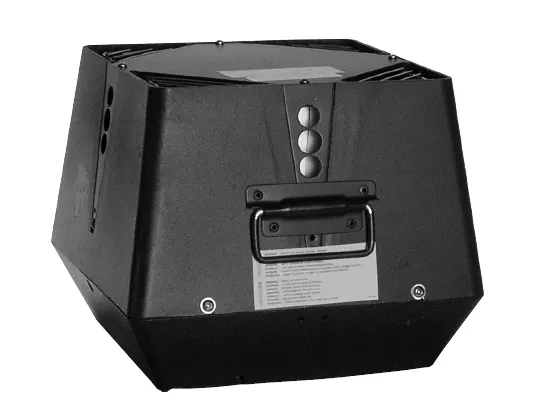

High‑Velocity Grease Fan for Restaurant Ventilation
The Enervex GSV250 delivers 2,222 FPM of clean, high‑velocity airflow, ensuring negative pressure throughout your kitchen ductwork and keeping grease‑laden air out of your workspace.
Key Features
- 1 × 120 VAC, 1600 RPM, 0.20 HP motor for efficient power use
- Cast aluminum housing with 3/16" thickness and grey hammerpaint finish for corrosion resistance
- IP54 protection class and sealed ball bearings for reliable operation in damp kitchen environments
- Variable speed control and thermal overload protection for customizable airflow and safety
- ETL listed (File No. 514733) and CE compliant, meeting U.S. and Canadian safety standards
From The Manufacturer
Enervex Grease Fan, 1x120VAC, 1600 RPM, 1/5HP (UL762), Item No: 133.0600.1200 - The GSV is part of a mechanical draft fan for intended use as part of a restaurant kitchen exhaust system and grease application. Ensures a negative pressure in the entire duct or vent system. Discharges vertically (horizontally, if side-wall mounted) at a high velocity. The fan housing is hinged and the top can be opened for easy service and access to stack. The GSV model is approved for temperatures up to 575°F (300°C). Exhaust fan for installation at the duct or vent termination point, vertical or side-wall mounted.
GSV 200-250-315: Single phase, split capacitor, totally enclosed, Class F insulated, IP54 Protection Class. Sealed ball bearings. Variable Speed. Thermal overload protection.
GSV 400-450: Three phase totally enclosed TEFC motor, Class H insulated. Sealed ball bearings. Variable Speed. Thermal overload protection.
The GSV 200-450 Grease Fan is ETL Listed in the U.S. and Canada under File No: 514733
