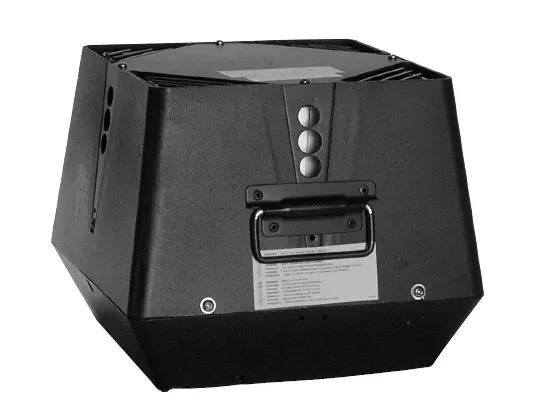

High‑Velocity Grease Fan for Restaurant Ventilation
The Enervex GSV315 delivers 2,771 FPM of vertical discharge, creating a powerful negative pressure that keeps kitchen air clean and compliant with UL and CE standards.
Key Features
- 1600 RPM, 0.35 kW / 0.5 HP motor with variable speed control
- Cast aluminum housing, 3/16” thick, gray hammerpaint finish for corrosion resistance
- IP54 protection class, sealed ball bearings, and thermal overload protection
- Approved for temperatures up to 575 °F (300 °C) and ETL listed under file no. 514733
- Dimensions: 16.94 in × 25.61 in × 18.32 in (430 mm × 650 mm × 465 mm), weight 92 lbs (42 kg)
From The Manufacturer
Enervex Grease Fan, 1x120VAC, 1600 RPM, 1/2HP (UL762), Item No: 133.0800.1200 - The GSV is part of a mechanical draft fan for intended use as part of a restaurant kitchen exhaust system and grease application. Ensures a negative pressure in the entire duct or vent system. Discharges vertically (horizontally, if side-wall mounted) at a high velocity. The fan housing is hinged and the top can be opened for easy service and access to stack. The GSV model is approved for temperatures up to 575°F (300°C). Exhaust fan for installation at the duct or vent termination point, vertical or side-wall mounted.
GSV 200-250-315: Single phase, split capacitor, totally enclosed, Class F insulated, IP54 Protection Class. Sealed ball bearings. Variable Speed. Thermal overload protection.
GSV 400-450: Three phase totally enclosed TEFC motor, Class H insulated. Sealed ball bearings. Variable Speed. Thermal overload protection.
The GSV 200-450 Grease Fan is ETL Listed in the U.S. and Canada under File No: 514733
