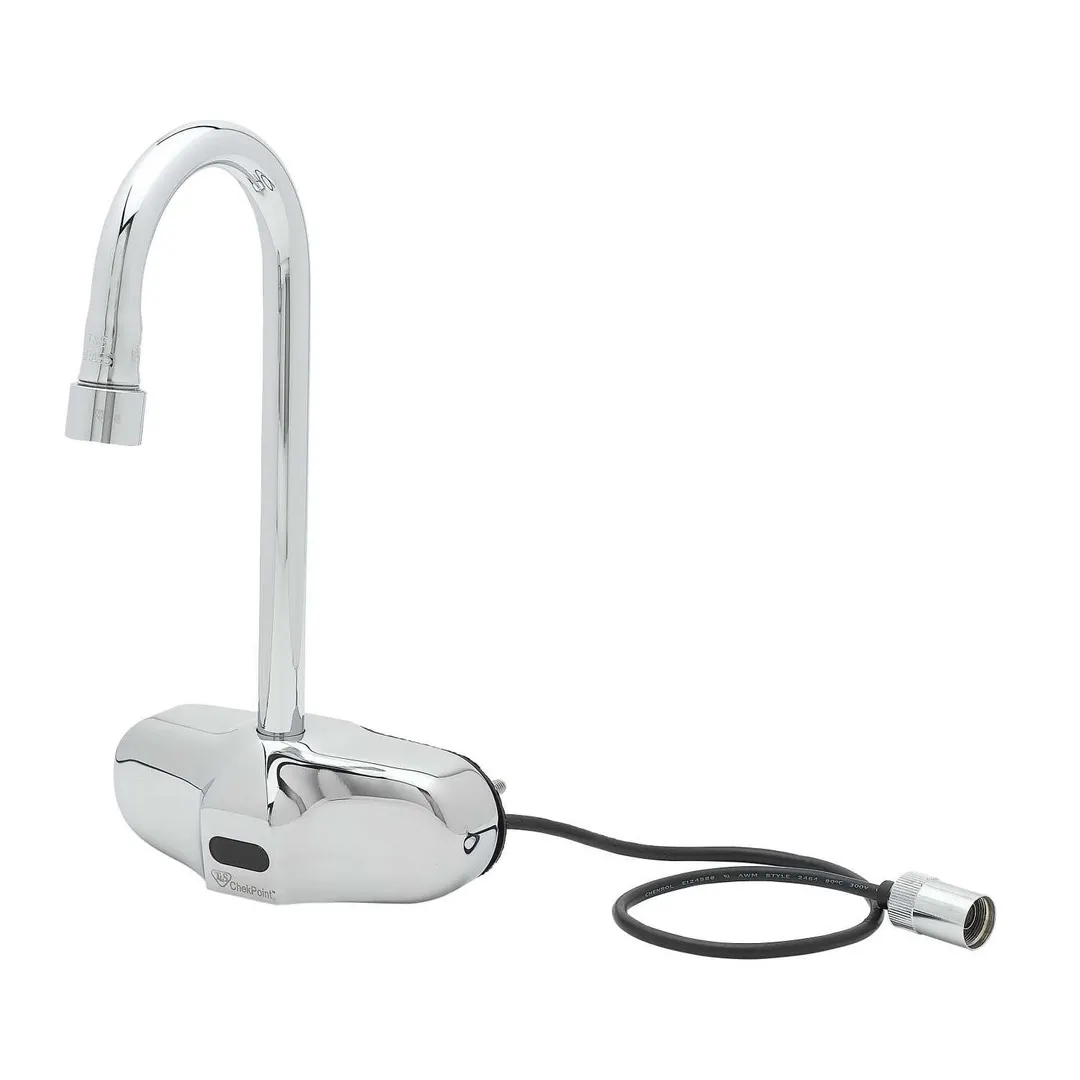

T&S Brass EC-3105-LN Electronic Sensor Faucet
General Info
4" wall mount electronic sensor faucet with polished chrome plated brass body, 3/8" NPT female outlet (less nozzle), AC/DC control module with internal flow control setting switches, temperature control mixing valvewith integral check valves and 18" flexible stainless steel supply hoses with 3/8" compression connections.
T&S Brass EC-3105-LN Features
- 4" c/c wall mount faucet w/ polished chrome plated brass body
- Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
- Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
- Optional metering mode
- Plug in AC tranformer or (4) AA batteries (DC) power options
- Mechanical temperature mixing valve with integral check valves
- 18” flexible stainless steel supply hoses with 3/8" compression connections
- Low battery LED indicator light
- Material: Polished chrome plated brass body
T&S Brass EC-3105-LN Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate : 3.29 GPM [12.5 L/min] @ 60 psi [4.14 bar]
- Water Consumption :
- @10 sec = .55 gal [2.08 L]
- @15 sec = .82 gal [3.10 L]
- Other Details : See spec. sheet
From The Manufacturer
ChekPoint™ Electronic Faucet, wall mount, 4" centers, less gooseneck & aerator, AC/DC control module with internal flow control, temperature control mixing valve with integral check valves, chrome-plated brass, flexible stainless steel supply hoses, ADA Compliant
