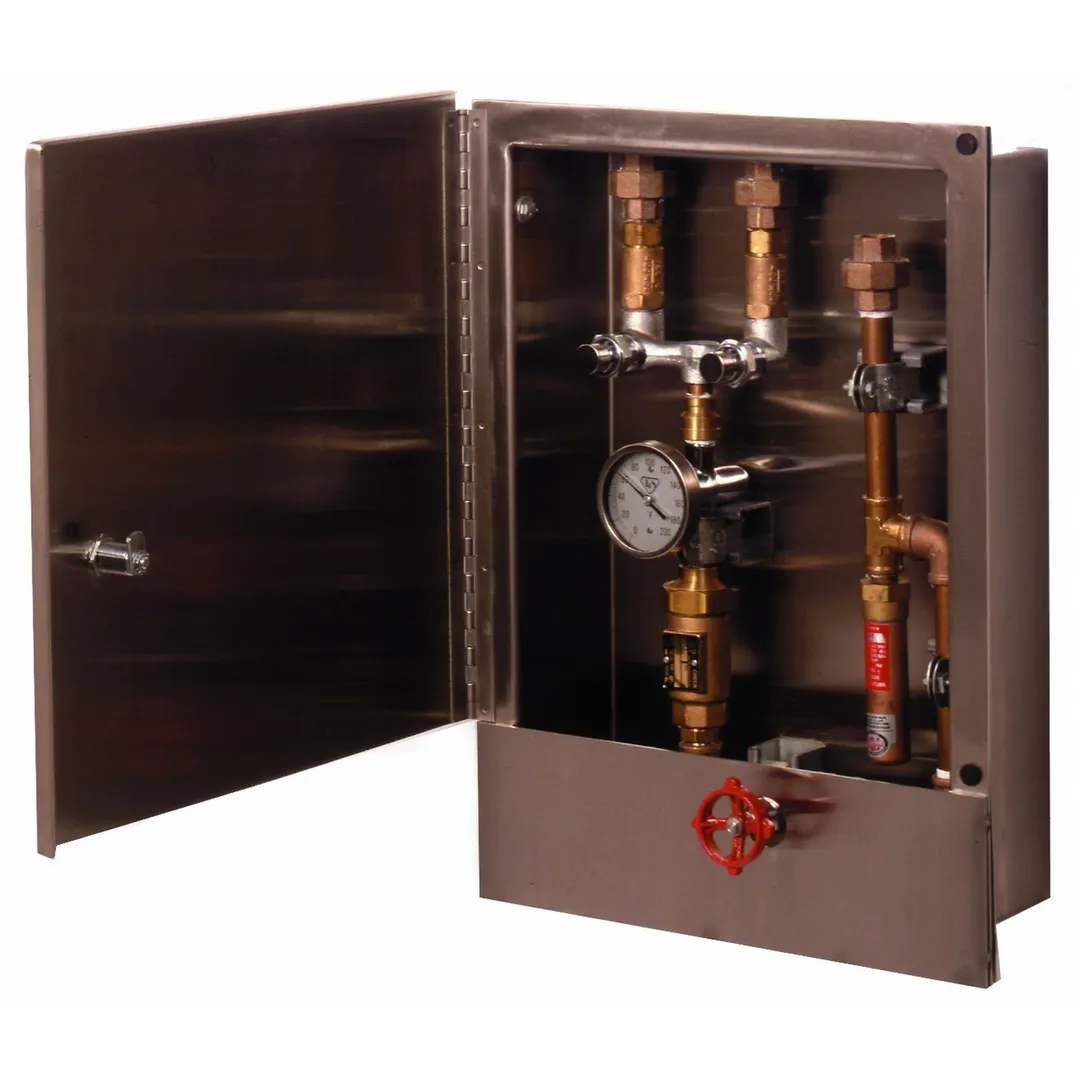

T&S Brass B-2339-LR Hose Reel Control Cabinet

General Info

Water control unit with stainless steel water control cabinet containing 1/2" union inlets and outlet, 1/2" check valves, loose key mixing valve with compression spindles, bi-metallic thermometer, dual check valve backflow preventer, shut-off valve and water hammer arrestor.

T&S Brass B-2339-LR Features

• Flush mount stainless steel control cabinet with locking latch contains water control system
• 1/2” NPT female union inlets (2) and outlet
• 1/2” in-line check valves
• Loose key mixing valve with Eterna compression cartridges, tee handles and screws
• Bi-metallic thermometer with 3” dial face
• Dual check valve backflow preventer
• Shut-off valve with 4-arm handle operable from outside of closed cabinet
• Material: Stainless steel cabinet, chrome plated metal handle and brass control unit components.

T&S Brass B-2339-LR Specifications

• Pressure Min/Max : 20 - 125 psi
• Temperature Min/Max : 40 F - 140 F
• Flow Rate :12.90 GPM [8.3 L/min] @ 60 psi [4.14 bar]
• Other Details : See spec. sheet
