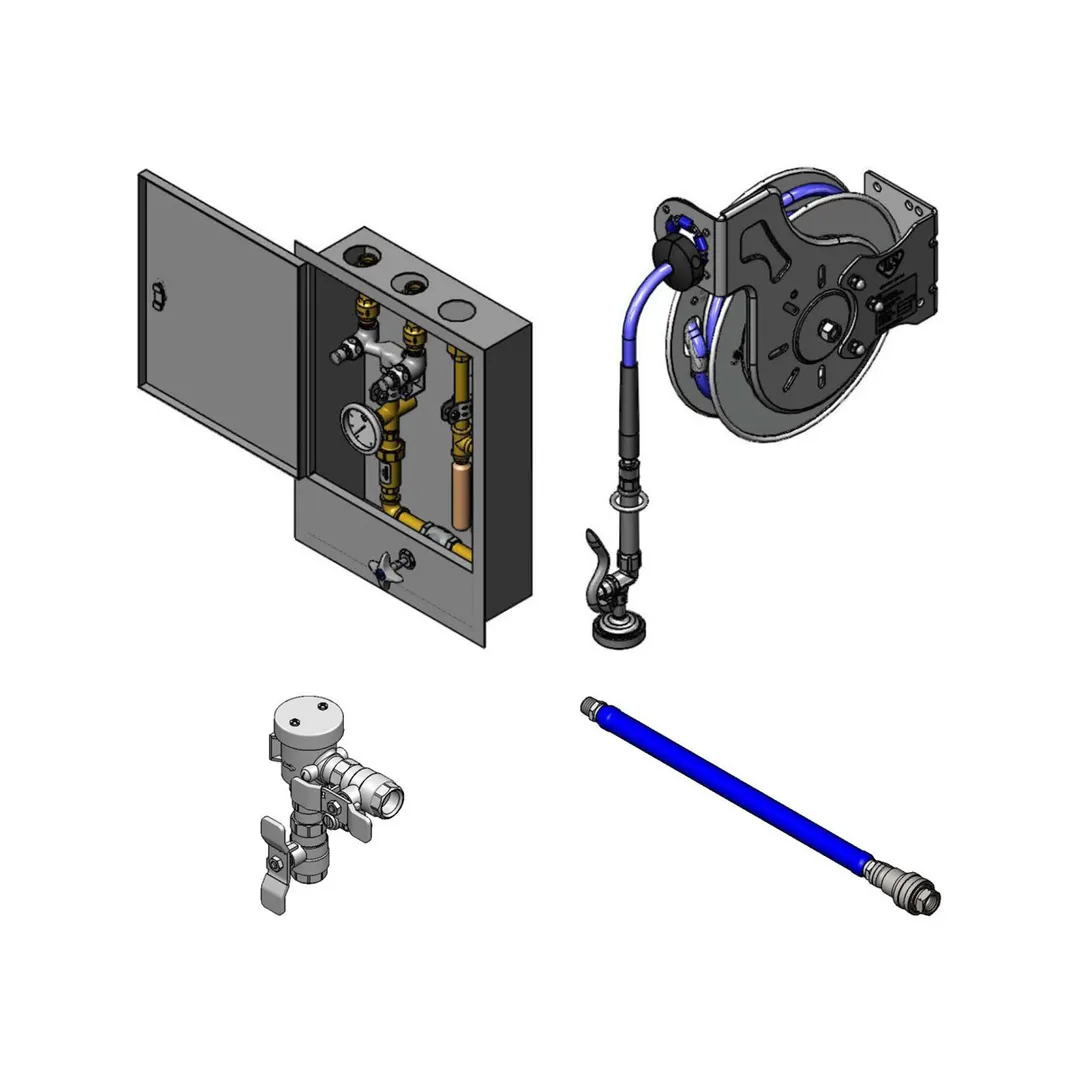

T&S Brass B-2339-7132MVBH Control Unit And Hose Reel Assembly
General Info
Hose reel control unit, stainless steel water control cabinet containing 1/2" union inlets and outlet, 1/2" check valves, loose key mixing valve with compression spindles, bi-metallic thermometer, dual check valve backflow preventer, shut-off valve and water hammer arrestor...
T&S Brass B-2339-7132MVBH Features
- Flush mount stainless steel control cabinet with locking latch contains water control system
- 1/2” NPT female union inlets (2) and outlet
- 1/2” in-line check valves
- Loose key mixing valve with compression spindles, tee handles and screws
- Bi-metallic thermometer with 3” dial face
- Dual check valve backflow preventer
- Shut-off valve with 4-arm handle operable from outside of closed cabinet
- Continuous pressure vacuum breaker (included)
- 36" flexible water hose connector w/ stainless steel quick disconnect (included)
- Open stainless steel hose reel with 3/8” NPT female inlet
- 1.15 GPM spray valve w/ heat resistant grey handle, swivel and hold down ring
- 3/8” x 30’ heavy-duty non-marking hose rated to 300 PSI
- Ratcheting system holds the length of hose until a slight tug to retract automatically
- Adjustable hose bumper
T&S Brass B-2339-7132MVBH Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 1.15 GPM [4.35 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
Hose Reel Assembly, with rinse control cabinet, control valve, check valves, open reel, 35' hose with EB-0107 spray valve, vacuum breaker, thermometer, water hammer arrestor
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
