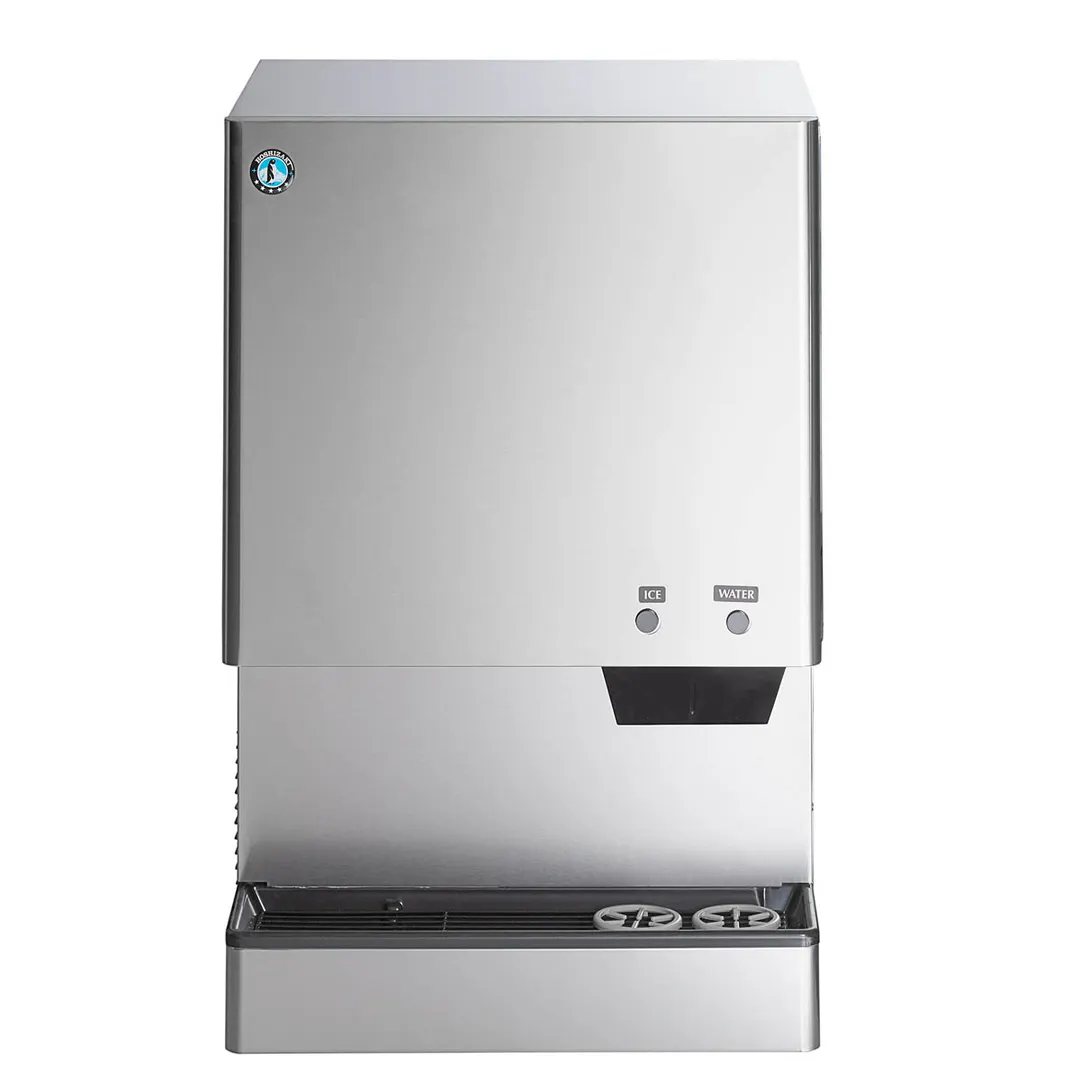

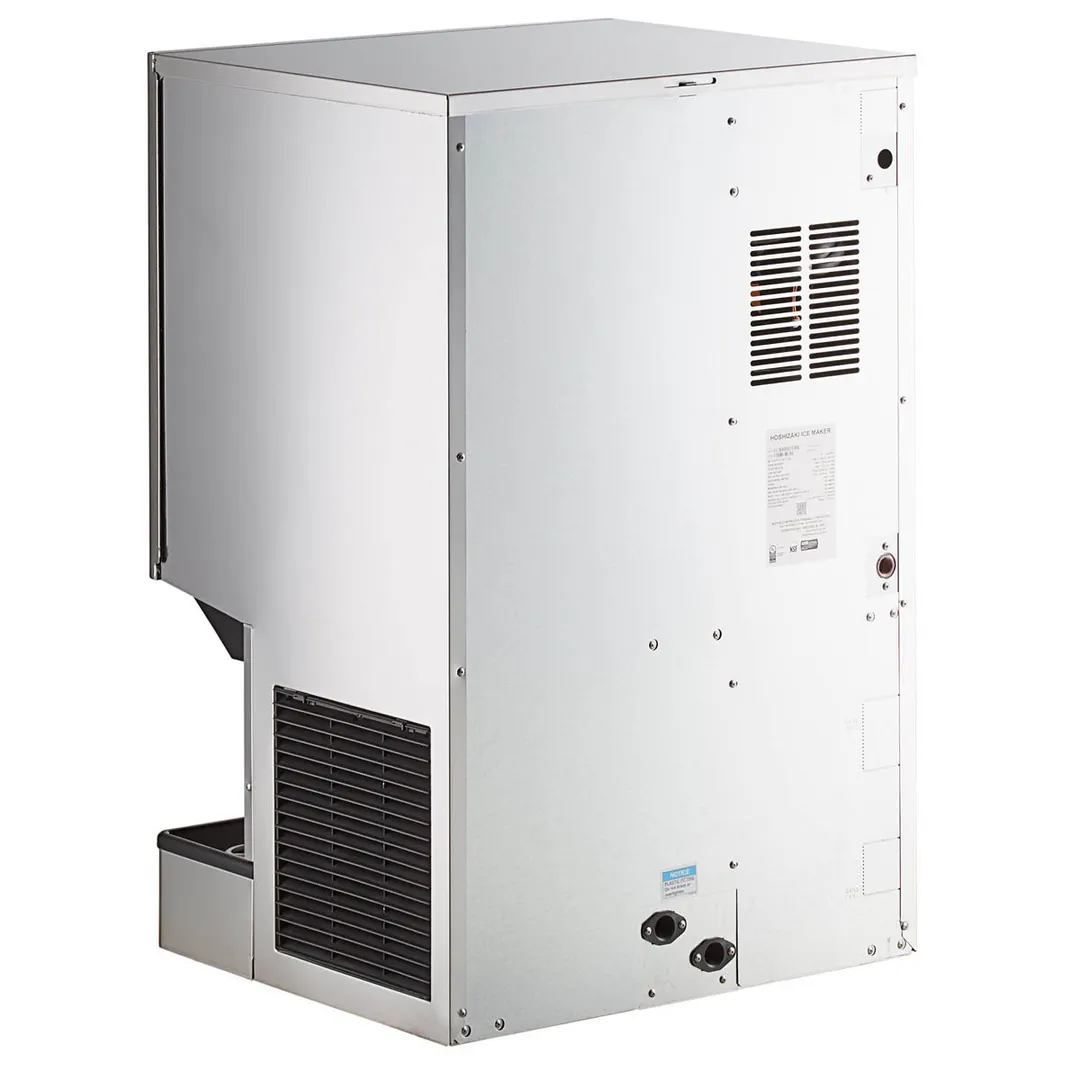

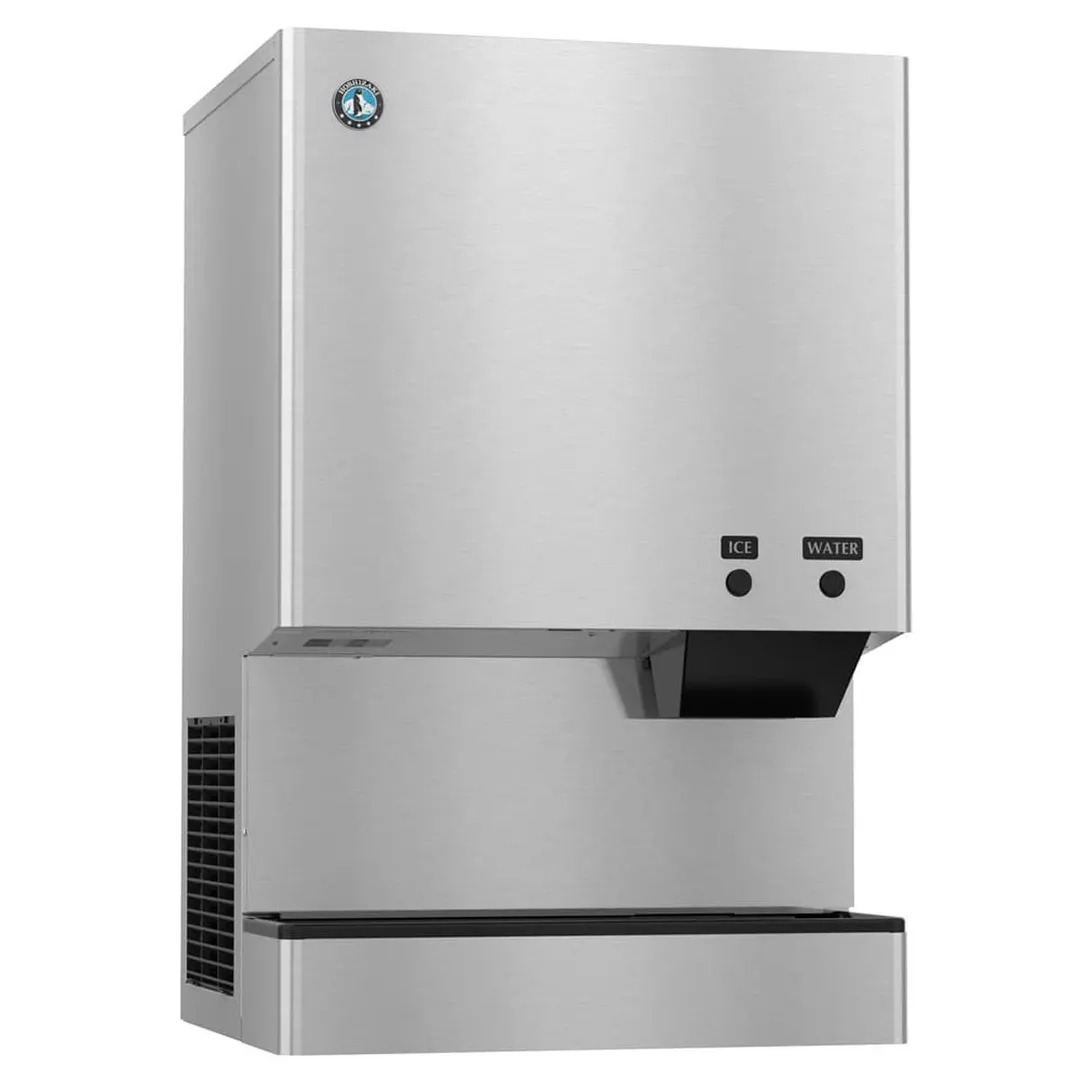

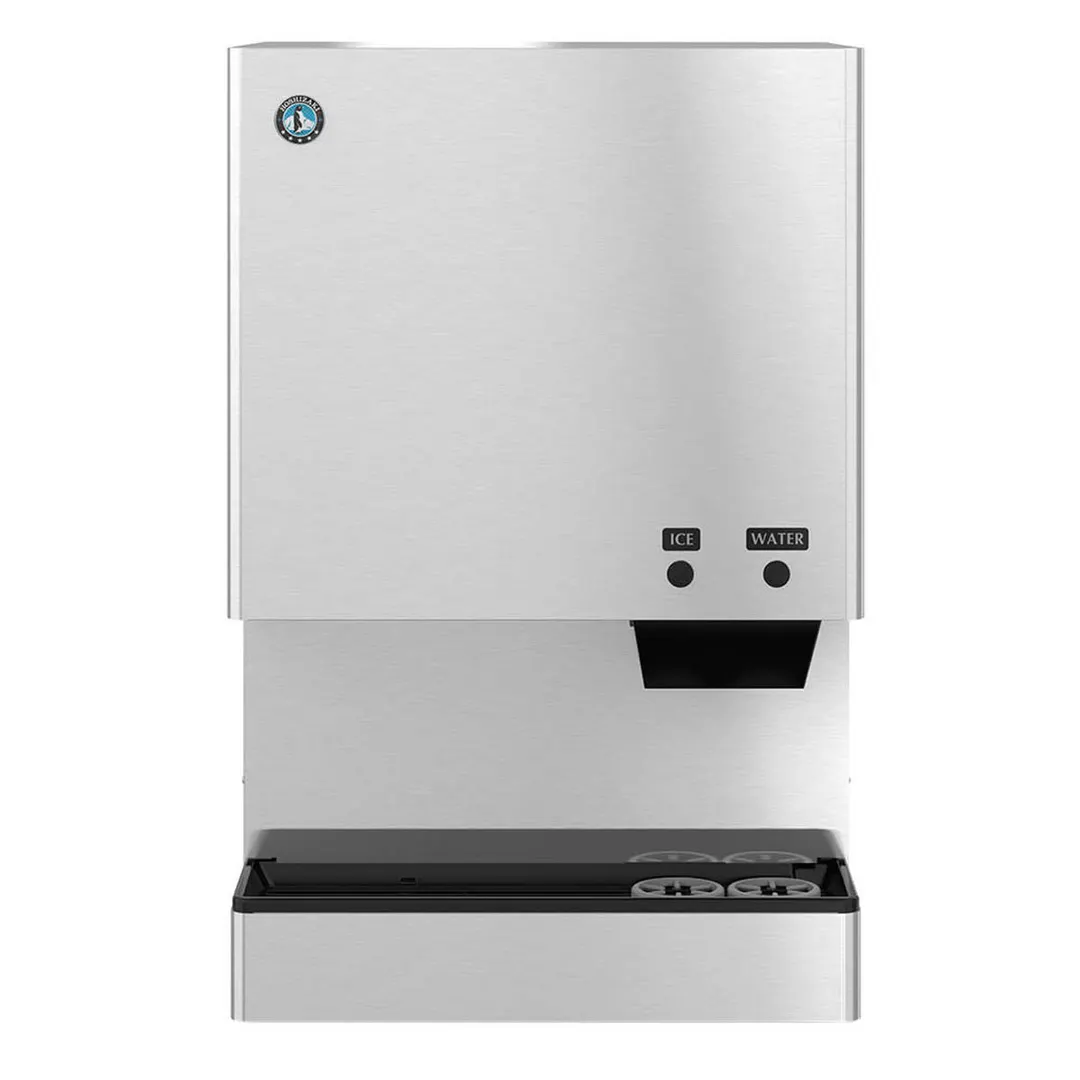

Hoshizaki DCM-500BAH Sanitary Cubelet Icemaker (Air-Cooled, Built in Storage Bin)

General Info And Benefits

The DCM-500BAH is capable of producing approximately 618 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 40 lbs of ice* at a time. This Air-cooled icemaker has an Push button operation that dispenses ice or water. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button.

Hoshizaki DCM-500BAH Features

Durable stainless steel exterior
Advanced CleanCycle24TM design
Stainless steel auger with greaseless bearing
Up to 618 lbs. of ice production per 24 hours
Built-in storage capacity of 1.3ft3/40 lbs.*
2 second flush cycle every hour
Corrosion resistant stainless steel exterior
Easy to chew, cubelet ice
Self-contained design reduces opportunities for cross contamination
Protected by H-GUARD Plus Antimicrobial Agent
Dispenses ice and water
R-404A Refrigerant

Hoshizaki DCM-500BAH Specifications

Condenser : Air-Cooled
Shipping Weight: 251/255 Lbs
Dimensions : 26″ W x 22-1/2″ D x 40″ H
Other Details : See spec. sheet

From The Manufacturer

Ice Maker/Water Dispenser, Cubelet-Style, air-cooled, self-contained condenser, production capacity up to 618 lb/24 hours at 70°/50° (450 lb AHRI certified at 90°/70°), 40 lb built-in storage capacity, counter model, push button operation, stainless steel bin & exterior, protected with H-GUARD Plus Antimicrobial Agent, R-404A refrigerant, 115v/60/1-ph, 12.9 amps, supplied without legs (optional stand sold separately), NSF, UL

Manufacturer	Hoshizaki
Model Number	DCM-500BAH
Weight	255 lbs
Width	26″
Depth	22.5″
Height	40″
Product Type	ice machines
Placement	countertop
Dispenses	Ice & Water
Dispenser Type	push button
Condenser Type	air-cooled
Ice Type	nugget ice
Special Features	antimicrobial
Voltage	115
Refrigerant Type	R-404A
Phase	1
Production per 24 hr (Lbs)	618
Bin storage capacity (Lbs)	40
