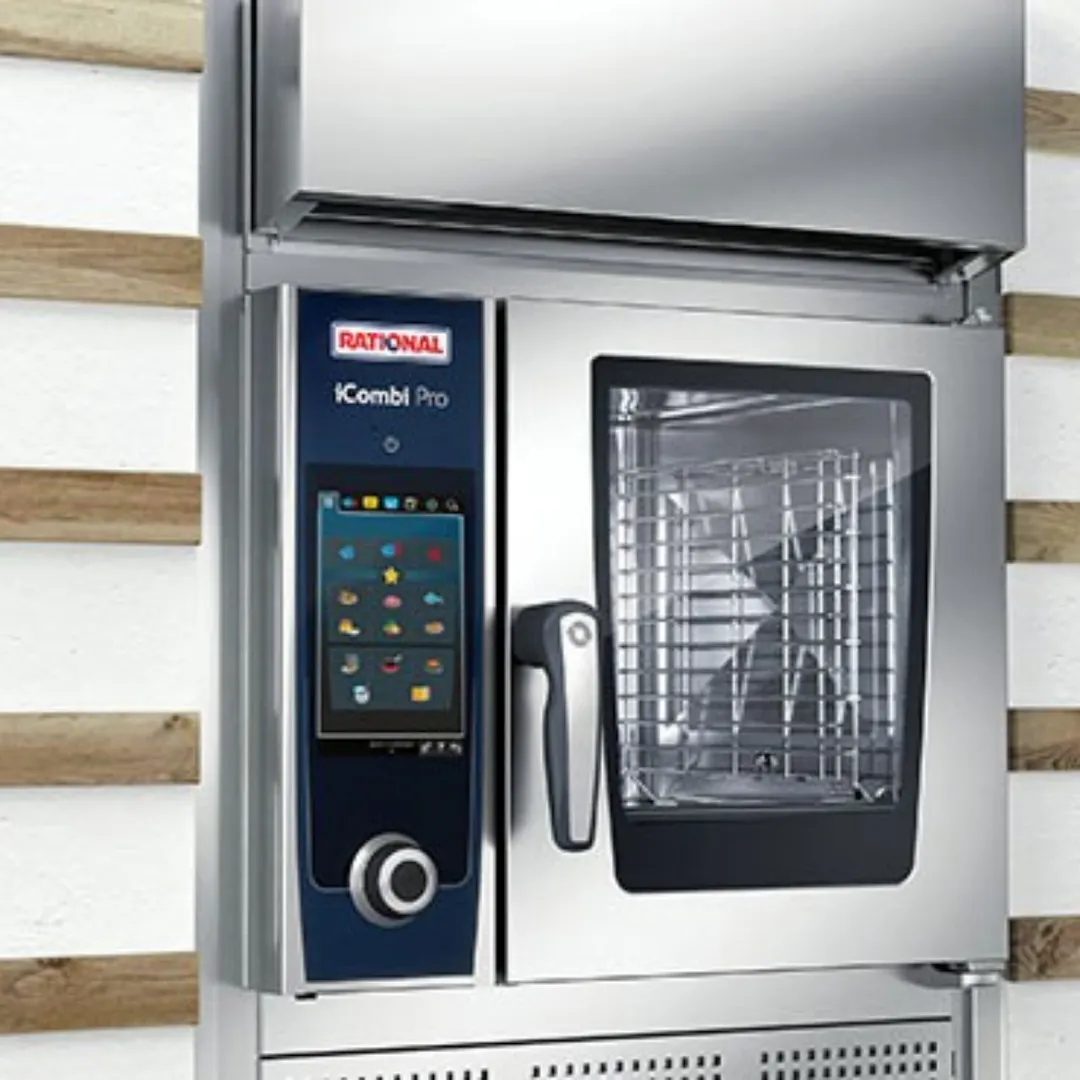

RATIONAL 60.74.408 Parts & Accessories Combi Oven
RATIONAL 60.74.408 Standard Features
- For hygienic integration of a XS model 6 2/3 into a wall unit
- Integrated UltraVent Plus XS with special filter technology. This prevents both vapours and the lingering smoke that builds up while grilling and roasting.
- Eliminates the need for laborious installation of separate air extraction technology
- Targeted air direction ensures necessary cooling of the unit
- Stainless steel trim kit fulfills even the most stringent hygiene requirements
- Attractive design creates a professional, harmonious overall appearance
- Prevents build-up of spoilage in difficult-to-reach places
- Easy to clean
- Easy-to-clean grease filter (CNS), dishwasher-safe
- High-performance extraction
- Proximity door contact switch
- Extraction rate automatically increased when cabinet door is opened
- Wastewater discharged by the device - no additional discharge line needed
- Stainless steel trim kit
- Waste water removal through the unit
RATIONAL 60.74.408 Specifications
- Connection: 100-125V 1 NAC 50-60 HZ
- Connected load: 160-215W
- Extraction power: 9,900-20,000 ft3/h 280-560 m³/h
- Operating noise level less than 67dBA
- For wall unit interiors 27 1/2'' (700 mm) wide, 37 3/8'' (950 mm) high, 23 5/8'' (600 mm) deep
- Certification: UL
- Weight: 73 lbs (33 kg)
- Stainless steel (CNS 1.4301)
From The Manufacturer
Integration Kit UltraVent Plus for XS - Includes specially designed UltraVent Plus for the XS with HEPA filters that allows for installation into cabinets by returning the air outside the cabinet at the front top of the hood. Kit also includes bottom venting and side trim panels. 120v/50/60Hz/1-ph, 170 watts, 6' cord, NEMA 5-15P
