Belshaw DOMIX 45A, 45AK
SPECIFIER STATEMENT
DOMIX 45A water meter is a complete option, built to last.Stainless steel structure, 80 programmable recipes, by-passoutlet and excellent precision to always assure the samequality levels throughout the dosing and mixing phase.
STANDARD FEATURES
- Microprocessor control
- Proprietary cast mixing valve
- S/S double net filters, in line s/s check valves & s/s inlet ball valve
- S/S housing
- Automatic bypass while water is coming to temperature.
- Dispenses through the main dispenser only when temperature is as programmed
- 8 foot hose with s/s fittings
- Highly accurate external temperature probe
- 80 program memory (with last setting kept over)
- 3 electronic displays
- Water volume remaining
- Discharge temperature
- All displays and programming in either U.S. or metric units
- Remote pump power supply plug
- Accuracy of ±1% For any volume above 1 gal (3.8 L)
- Microdosage capability – accuracy ±1% any volume above 10 oz (500mL)
- Certified to UL-3121, CSA 22.2 and NSF/ANSI 2-2022E
From The Manufacturer

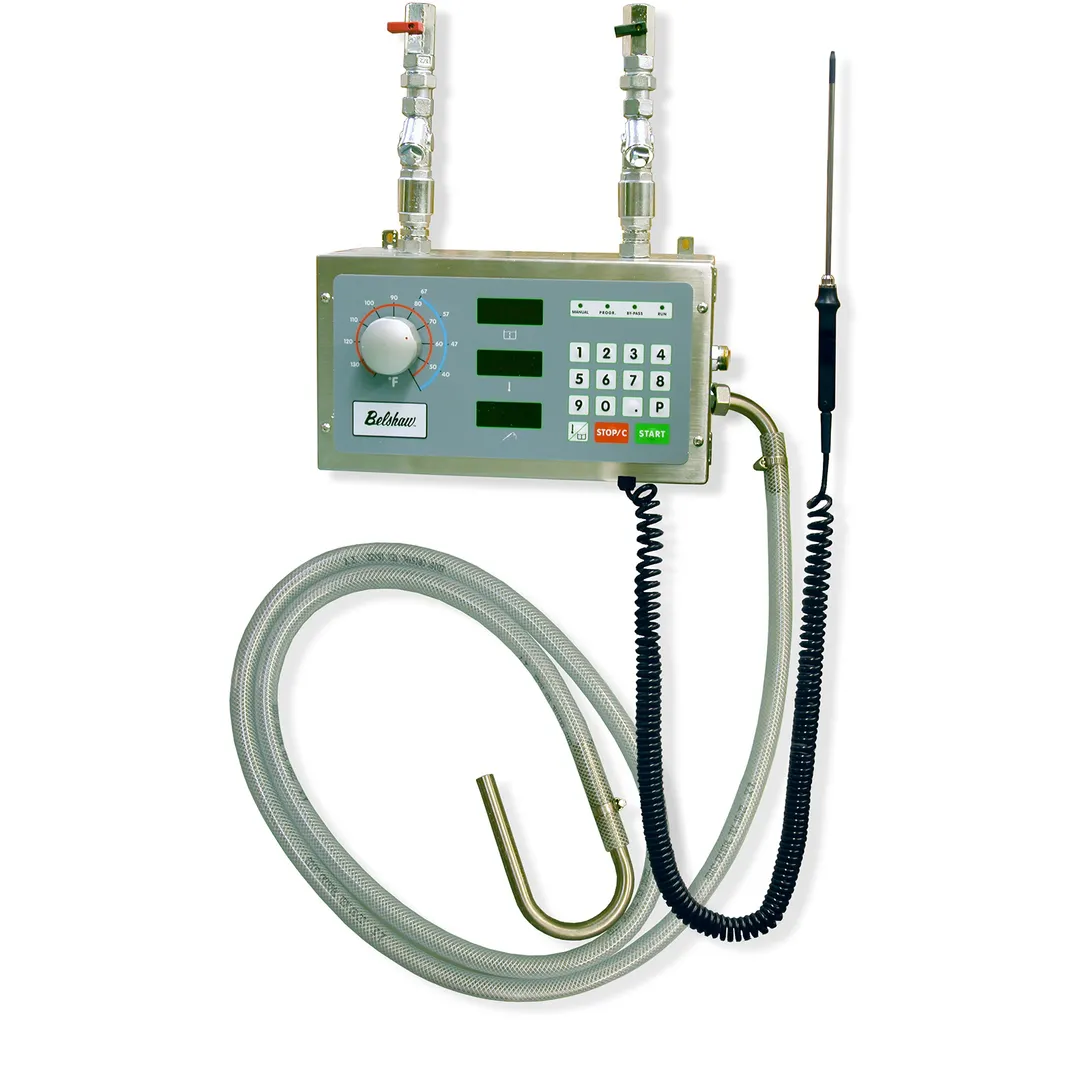

(21371) Water Meter-Mixer, microprocessor control with (3) electronic displays, 80 program memory, 10 ounces to 250 gallon capacity, 36°F to 150°F temp range, accurate up to 2°F, volume accurate 1% throughout range, automatic bypass while water reaches temp, external temp, 8 ft filling hoze with hook end, stainless steel double net filters, in-line check valves & inlet ball valves, stainless steel housing, 115v/60/1-ph, cETLus, NSF. Domix 45A Meter-Mixer, 120V/50/60/1
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
