Seamless Roof Integration for Commercial Hoods
The RCF18-24 curb delivers a quick, self‑flashing installation that eliminates extra roofing work, saving time and labor for busy kitchen operations.
Key Features
- 18GA galvanized steel construction for corrosion resistance
- Fully welded with liquid‑tight corner seams
- Flange fastening requires only roof material over flange
- Optional 1½" insulation for thermal protection and soundproofing
- Neoprene gasket secured on top for weather sealing
From The Manufacturer

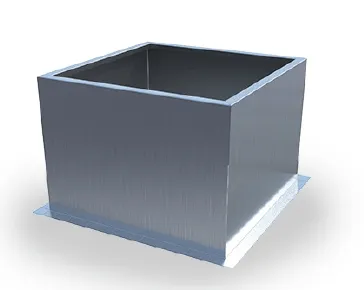

Enervex Galvanized Roof Curb for BEF200 - BEF250 - BEF300, Item No: 139.0100.1824 - The RCF Roof Curb is a self-flashing type of curb designed for use with GSV, EFV, RSV and BEF models on flat roofs. The design makes installation very easy and eliminates the need for securing roofing papers onto the side of the curb wall. A flange is provided for fastening into the roof deck, so roof material only needs to cover the flange. A neoprene gasket is secured onto the top of the curb. Wood nailers are not required but can be supplied as an option. The roof curb is made of 18GA Galvanized steel and is fully welded. All corner seams are liquid-tight due to the continuous weld. The standard curb is not insulated, but as an option it can be supplied with 1 1/2" thick insulation for thermal protection and soundproofing.
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
