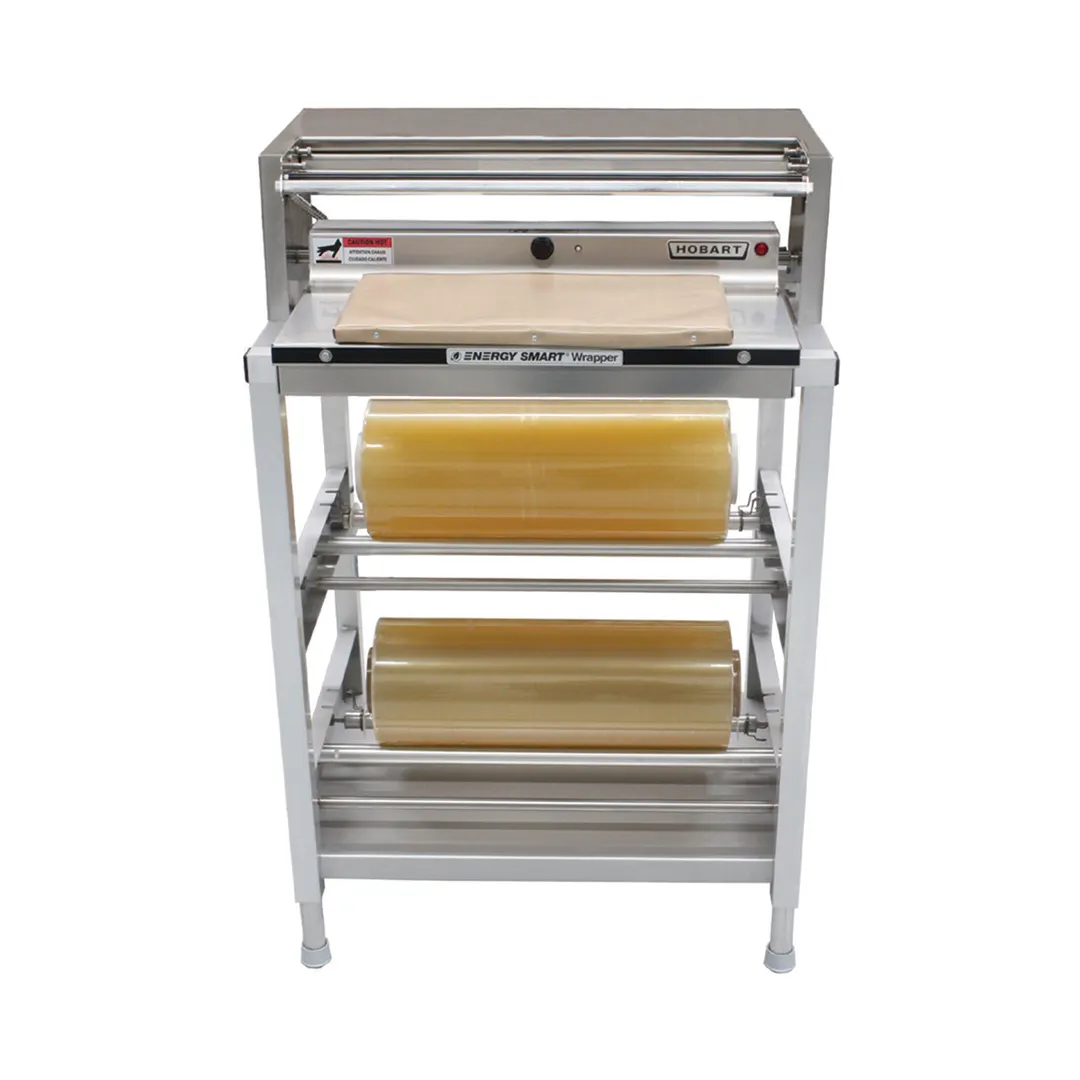

Hobart W32ES-1 Hand Wrap Station, 2‑Roll Film (20"×8"), LED, Height 33‑39", 8×15" Seal, Stainless, 115V

Specifier Statement

The model is most commonly used with the Hobart semi-automatic CLA system for hand wrapping. This 2-roll film capacity station is made of rugged construction including a stainless steel wrapping surface. The new W32ES-1 wrapper has proven to significantly reduce energy costs by up to 80%. The seal plate only consumes energy when you need to seal a package. The photo eye sees the product and actuates the seal cycle. The W32ES-1 has an 8" x 15" seal plate and 20" film capacity in a compact design.

Standard Features

• Film cradle mount for quick and easy film changeover
• Fixed distance photoeye to detect all tray colors
• Two color LED for photoeye indication is amber to convey seal plate heating, and red when seal plate reaches sealing temperature
• Self-regulating square rod for increased transversal rigidity and consistent cutting
• On-demand heated seal plate that significantly reduces power consumption by up to 80%
• Supplied with a replaceable non-stick cover to maintain a hygienic seal surface
• Thermistor controlled circuit that reduces power consumption as residual heat increases in seal plate
• GFCI for improved circuit integrity and protection
• Rigid stainless steel construction
• 2 roll film capacity - 20” maximum roll width, 8” maximum roll diameter
• 8” x 15” seal plate
• Rounded stainless steel front plate for easy wipe down
• Splash shield, lower shelf
• Adjustable height from 33” to 39”
• Operates in all ambient temperatures
• Used with Hobart semi-automatic CLA systems unless specified otherwise

Specifications

• Construction: Rigid stainless steel frame, wrapping surface, and film cradle mount
• Film Capacity: 20"
• Hot Plate: 8" x 15" Standard, 6" x 15" Optional
• Working Height: Standard 36", Adjustable Height 33"-39"
• Overall Dimensions: 24" D, 25" W, 36" H Standard; (61 D, 63.5 W, 92 H cm)
• Electrical Specifications: 115 Volt, 60Hz, 132 Watts
