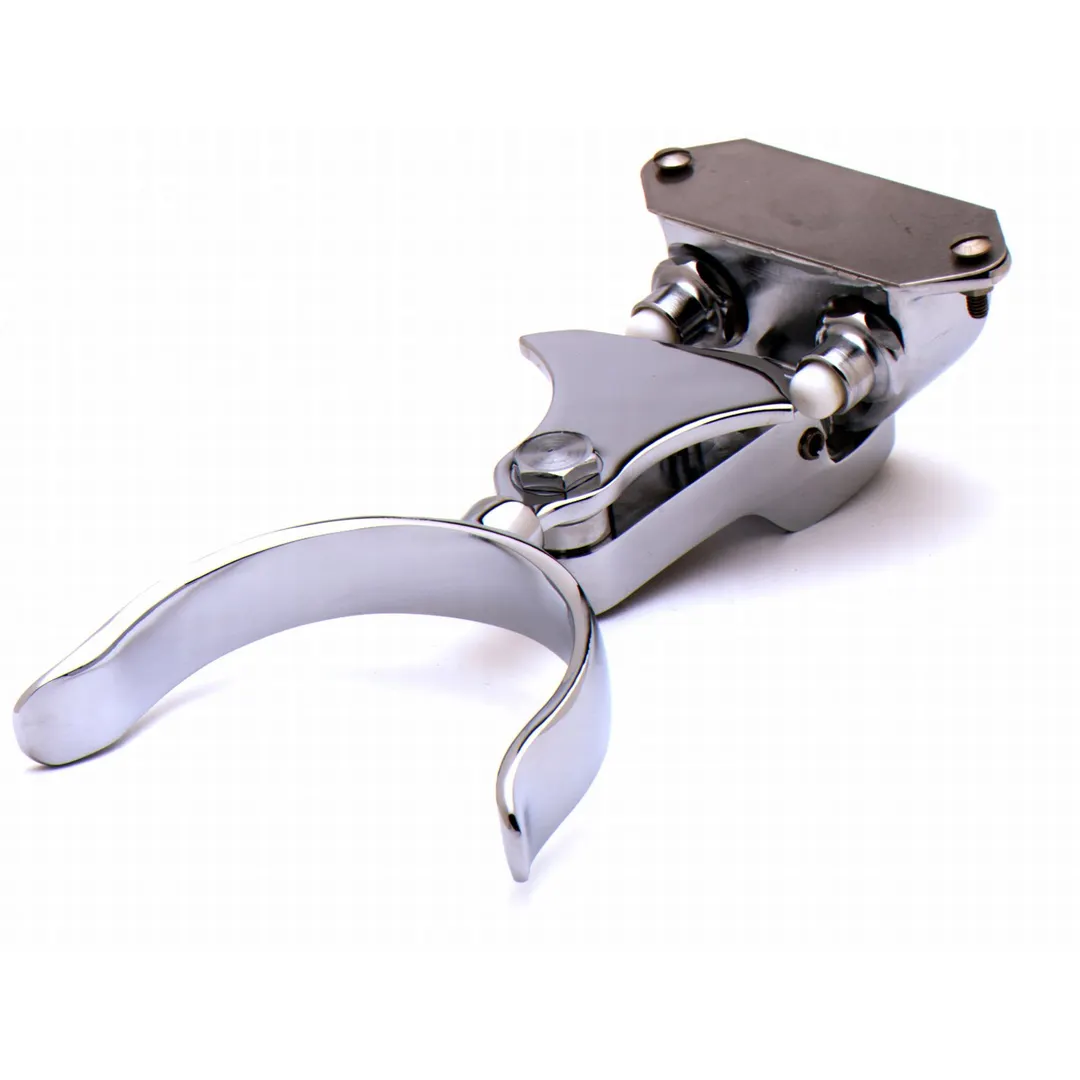

T&S Brass B-0475 Knee Action Valve
General Info
The B-0475, Knee action valve with polished chrome plated brass body, 1/2" NPT outlet, self-closing cartridges, polished chrome plated stirrup, 1/2" NPT hot and cold inlets.
T&S Brass B-0475 Features
- Knee action valve with polished chrome plated brass body (will remain in set position for hot, cold or mixed water)
- 1/2” NPT outlet
- Self-closing cartridges
- Polished chrome plated stirrup
- 1/2” NPT hot and cold inlets
- Material: Polished chrome plated brass body & stirrup
T&S Brass B-0475 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : : 4.26 GPM [16.12 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
Knee Action Valve, heavy duty, cam acting stirrup, valve will remain in set position for hot, cold, or mixed water, 1/2" IPS female inlets, 2-1/2" centers, 1/2" IPS female outlet
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
