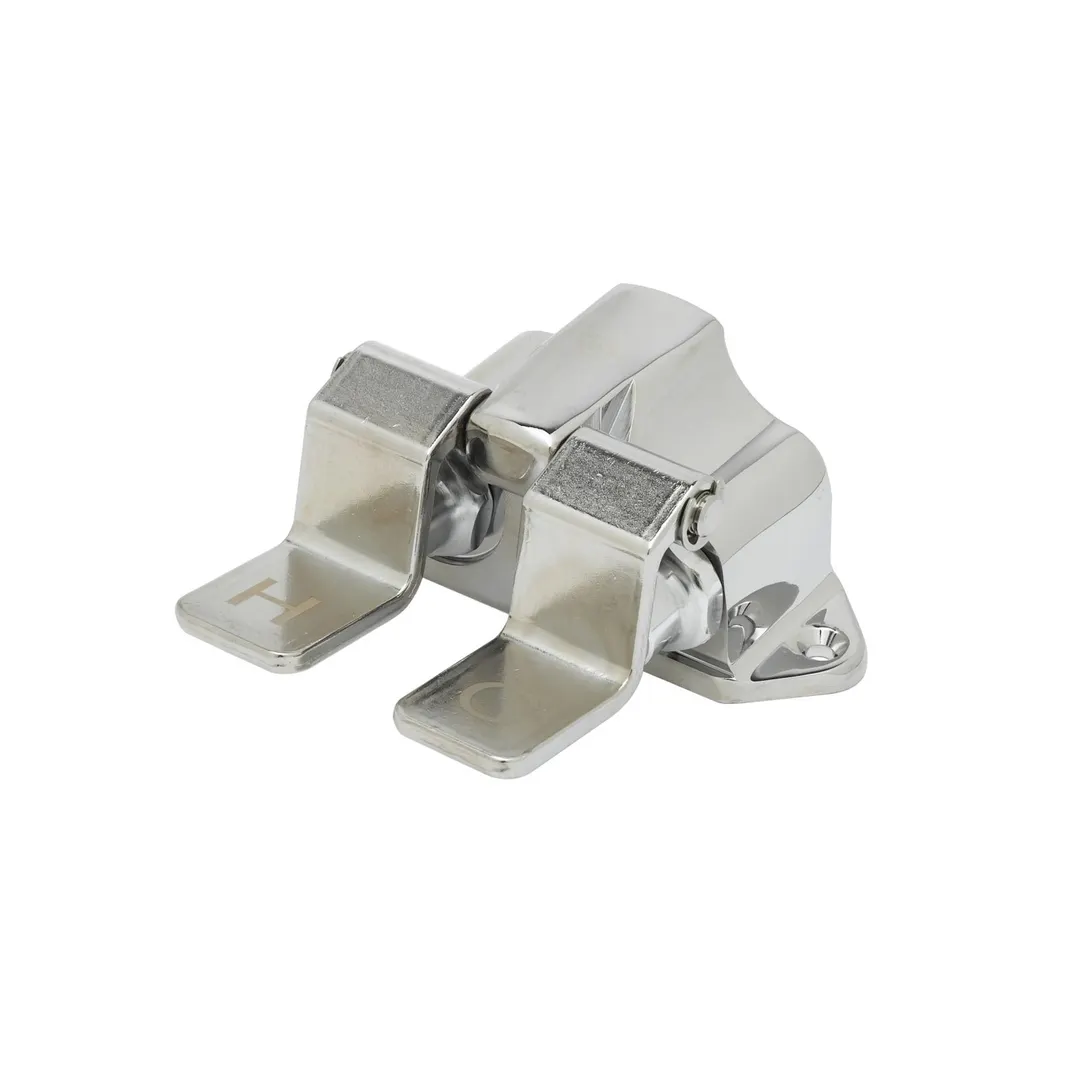

T&S Brass B-0502 Double Pedal Valve
General Info
The B-0502, Floor mount double pedal valve with polished chrome plated solid brass body and pedals, metering cartridges, 1/2" NPT female inlets and outlet and mounting screws.
T&S Brass B-0502 Features
- Floor mount double pedal valve
- Hot and cold pedals
- Pedals flip up for floor cleaning
- Metering Cartridges
- 1/2” NPT female inlets
- 1/2" NPT female outlet
- Mounting screws included
- Material: Polished chrome plated brass body and pedals
T&S Brass B-0502 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :12.00 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pedal Valve, double, floor mounted, inlets on 2-1/2" centers, 1" from floor to center of inlets
