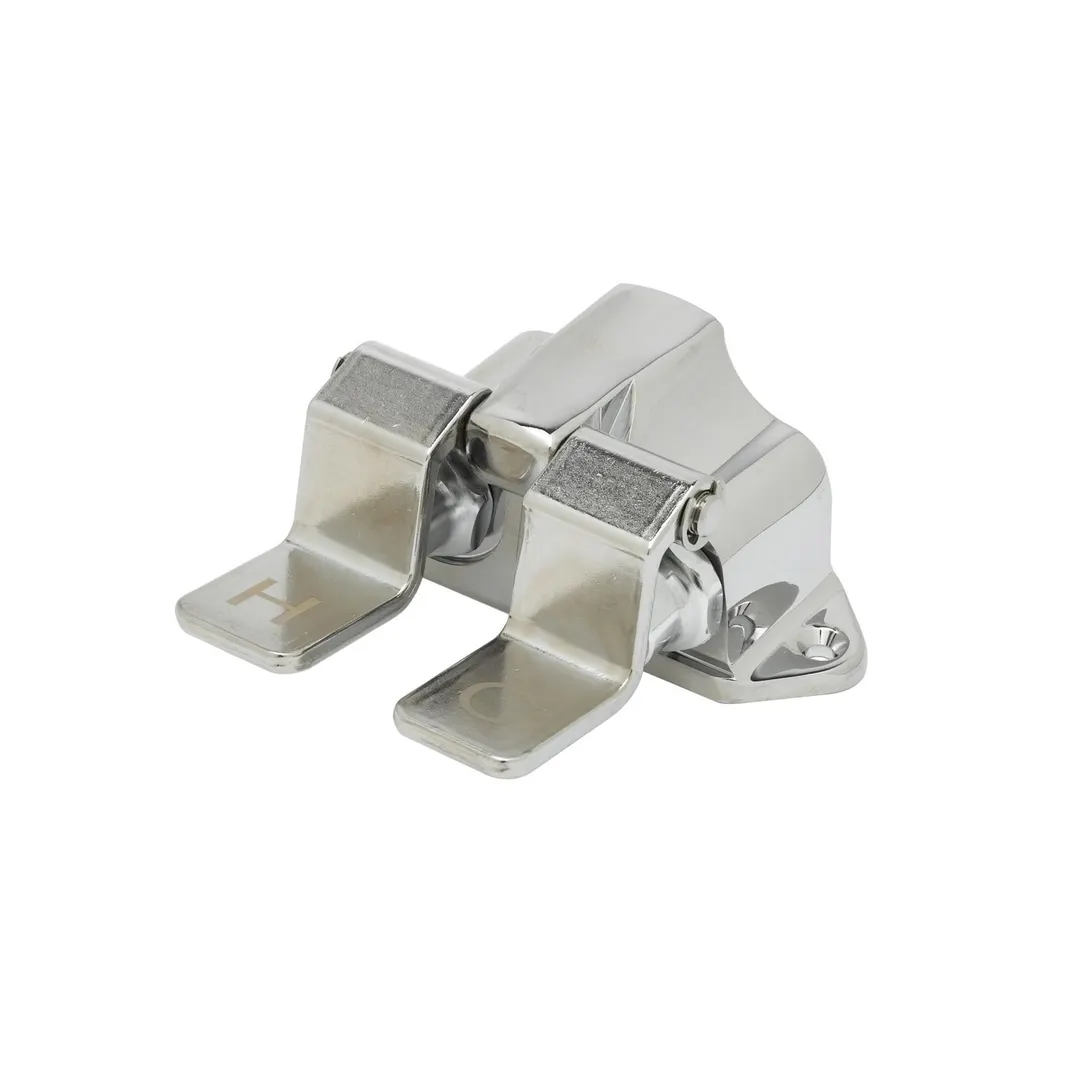

T&S Brass B-0502-LKS Foot Double Pedal Valve
General Info
The B-0502-LKS, Floor mount double pedal valve with polished chrome plated solid brass body and pedals, self-closing valves, 1/2" NPT female loose key straight stop inlet, 1/2" NPT female outlet and mounting screws.
T&S Brass B-0502-LKS Features
- Floor mount double pedal valve
- Hot and cold pedals
- Pedals flip up for floor cleaning
- Self-closing valves
- 1/2" NPT female loose key straight stop inlet
- 1/2" NPT female outlet
- Mounting screws included
- Material: Polished chrome plated brass body and pedals
T&S Brass B-0502-LKS Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 9.28 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pedal Valve, double, floor mounted, inlets on 2-1/2" centers, 1" from floor to center of inlets, straight loose key stops
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
