T&S Brass B-0503 Foot Double Pedal Valve
General Info

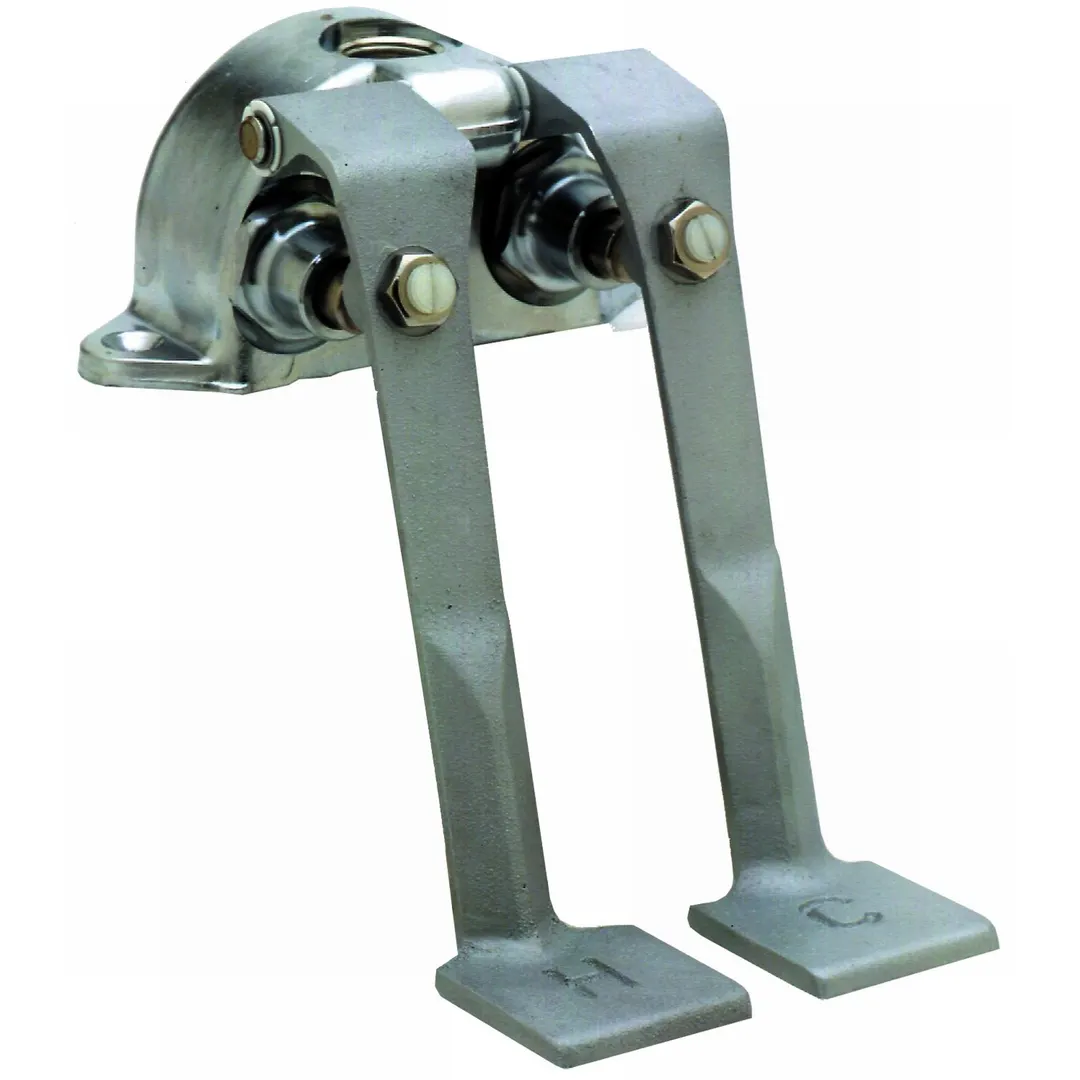

The B-0503, Ledge mount double pedal valve with polished chrome plated solid brass body, adjustable height aluminum pedals, self-closing valves, 1/2" NPT female inlets, 1/2" NPT female outlet and mounting screws.
T&S Brass B-0503 Features
- Ledge mount double pedal valve w/ polished chrome plated brass body
- Hot and cold adjustable height aluminum pedals
- Self-closing valves
- 1/2” NPT female inlets and outlet
- Mounting screws included
- Material: Polished chrome plated brass body and aluminum pedals
T&S Brass B-0503 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 12.00 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pedal Valve, double, 1/4" dia. mounting holes, cold & hot floor mount, cast aluminum pedals, 1/2" NPT
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
