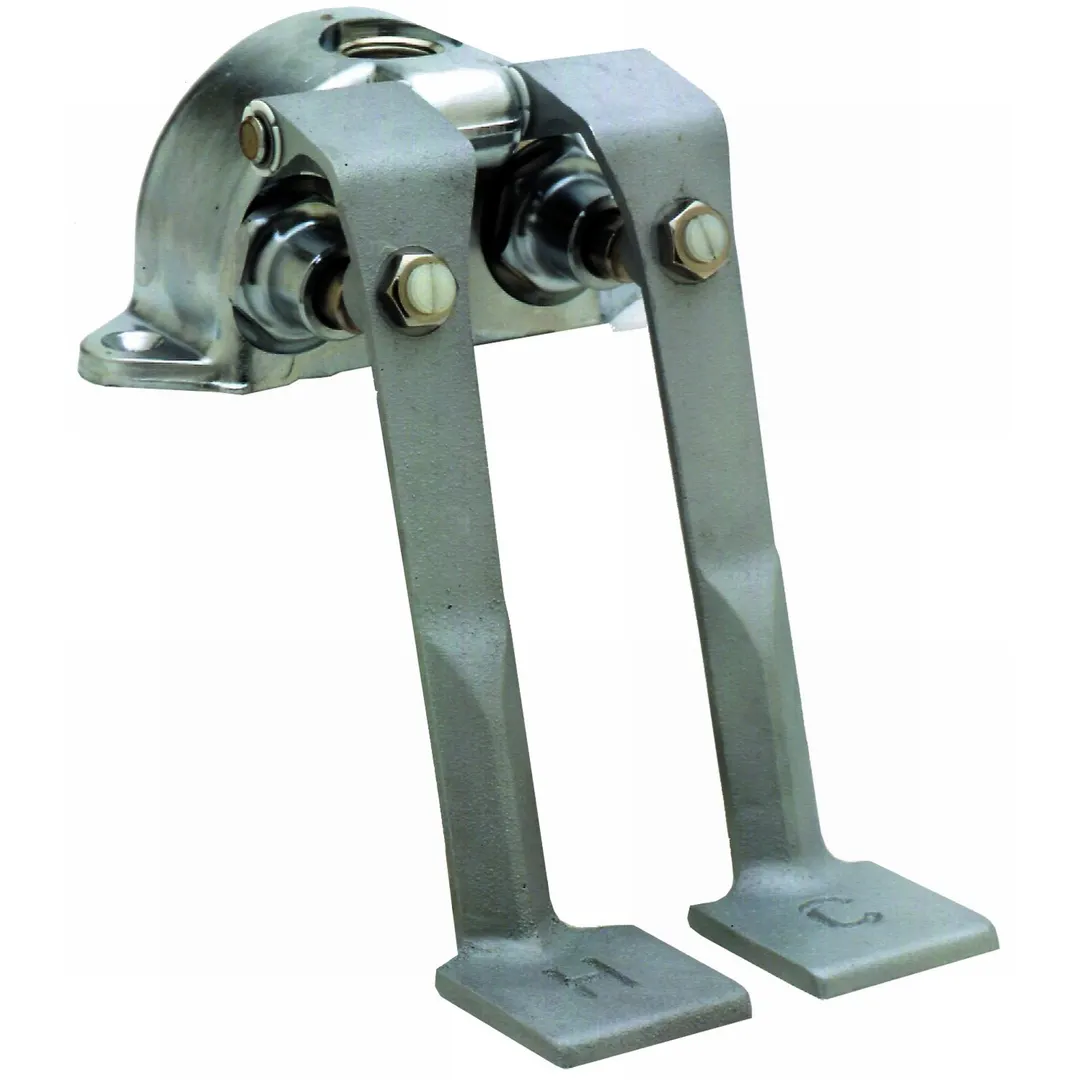

T&S Brass B-0505-SL Double Pedal Valve
General Info
The B-0505-SL, Ledge mounted double pedal valve with chrome plated solid brass body, adjustable height aluminum pedals, metering cartridges, 1/2" NPT female inlets, 1/2" NPT female outlet and mounting screws.
T&S Brass B-0505-SL Features
- Ledge mounted double pedal valve w/ polished chrome plated brass body
- Adjustable height hot and cold pedals
- Metering cartridges
- Adjustable metering cycle 10 to 30 seconds
- 1/2” NPT female inlets and outlet
- Includes mounting screws
- Material: Polished chrome brass body and aluminum pedals
T&S Brass B-0505-SL Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 6.92 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pedal Valve, double, cold & hot floor mount, slow close cartridge, low lead, cast aluminum pedals, 2.2 GPM aerator, 1/2" NPT, NSF
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
