T&S Brass B-0507 Single Pedal Valve
General Info
The B-0507, Floor mount single pedal valve with polished chrome plated solid brass body and pedal, self-closing valve, 1/2" NPT female inlet and outlet and mounting screws.
T&S Brass B-0507 Features
- Floor mount single pedal valve
- Blank pedal
- Pedal flips up for floor cleaning
- Self-closing valve
- 1/2” NPT female inlet
- 1/2" NPT female outlet
- Mounting screws included
- Material: Polished chrome brass body & pedal
T&S Brass B-0507 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 4.92 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer

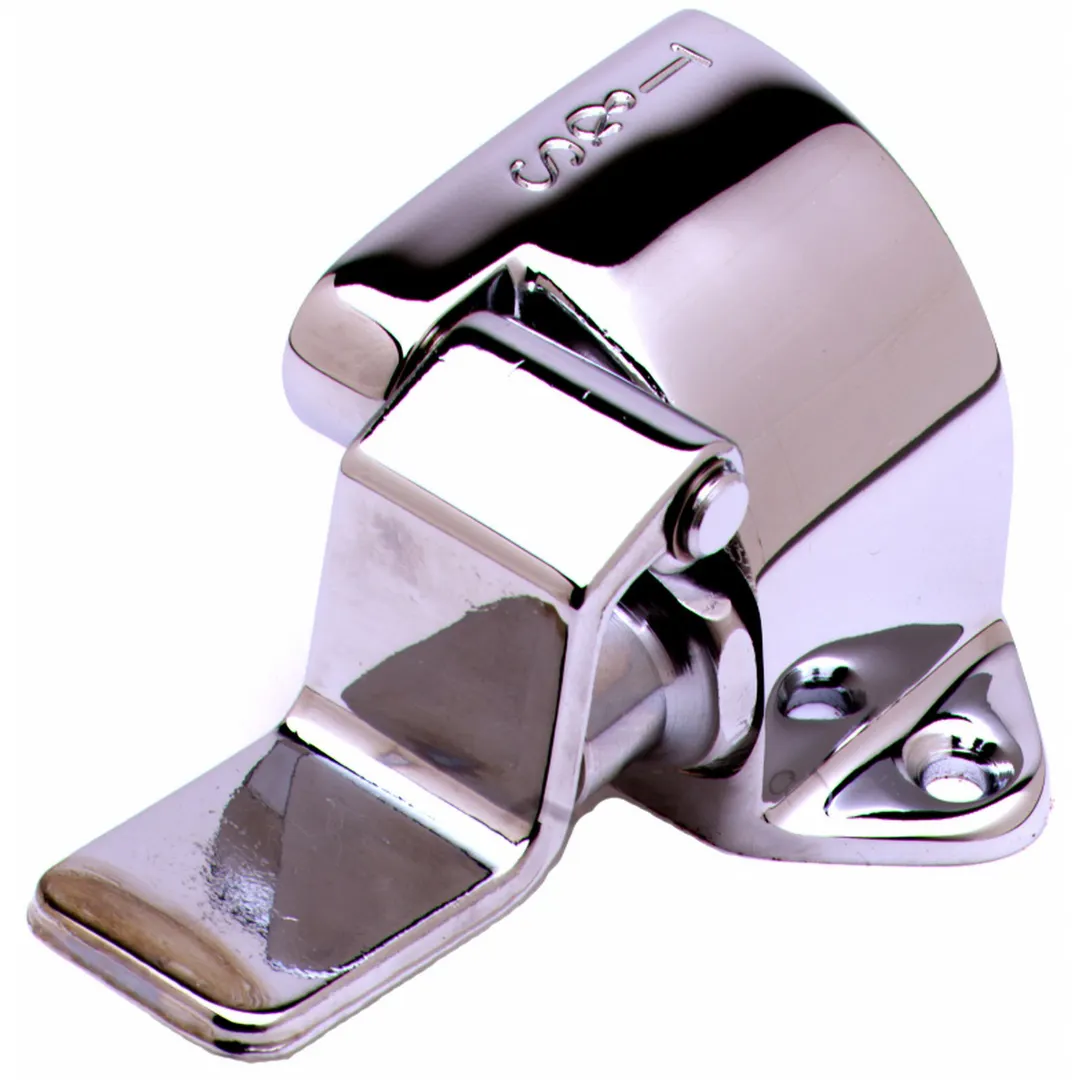

Pedal Valve, single, floor mounted, 1" floor to center of inlet
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
