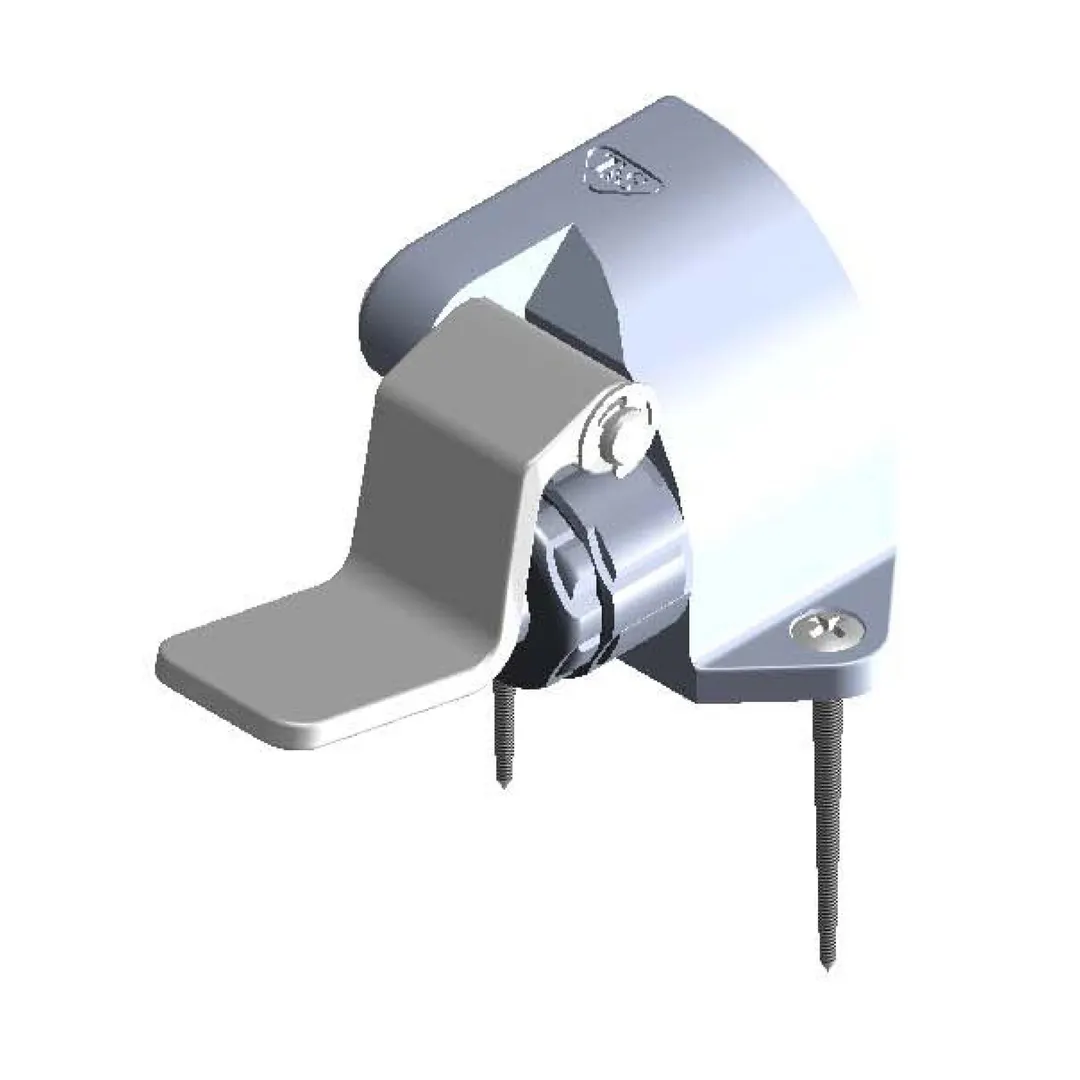

T&S Brass B-0507-SL Single Pedal Valve And Dummy Gooseneck
General Info
The B-0507-SL, Floor mounted single pedal valve with polished chrome plated solid brass body and pedal, metering cartridge, 1/2" NPT female inlets and outlet and mounting screws.
T&S Brass B-0507-SL Features
- Floor mount single pedal valve
- Blank foot pedal
- Pedal flips up for floor cleaning
- Metering cartridge
- Adjustable metering cycle 10 to 30 seconds
- 1/2” NPT female inlet
- 1/2" NPT female outlet
- Mounting screws included
- Material: Polished chrome brass body & pedal
T&S Brass B-0507-SL Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 3.69 GPM @ 60 psi
- Water Consumption :
- @10 sec = .61 gal
- @15 sec = .92 gal
- Other Details : See spec. sheet
From The Manufacturer
Pedal Valve, single, floor mounted, 1" floor to center of inlet, slow close
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
