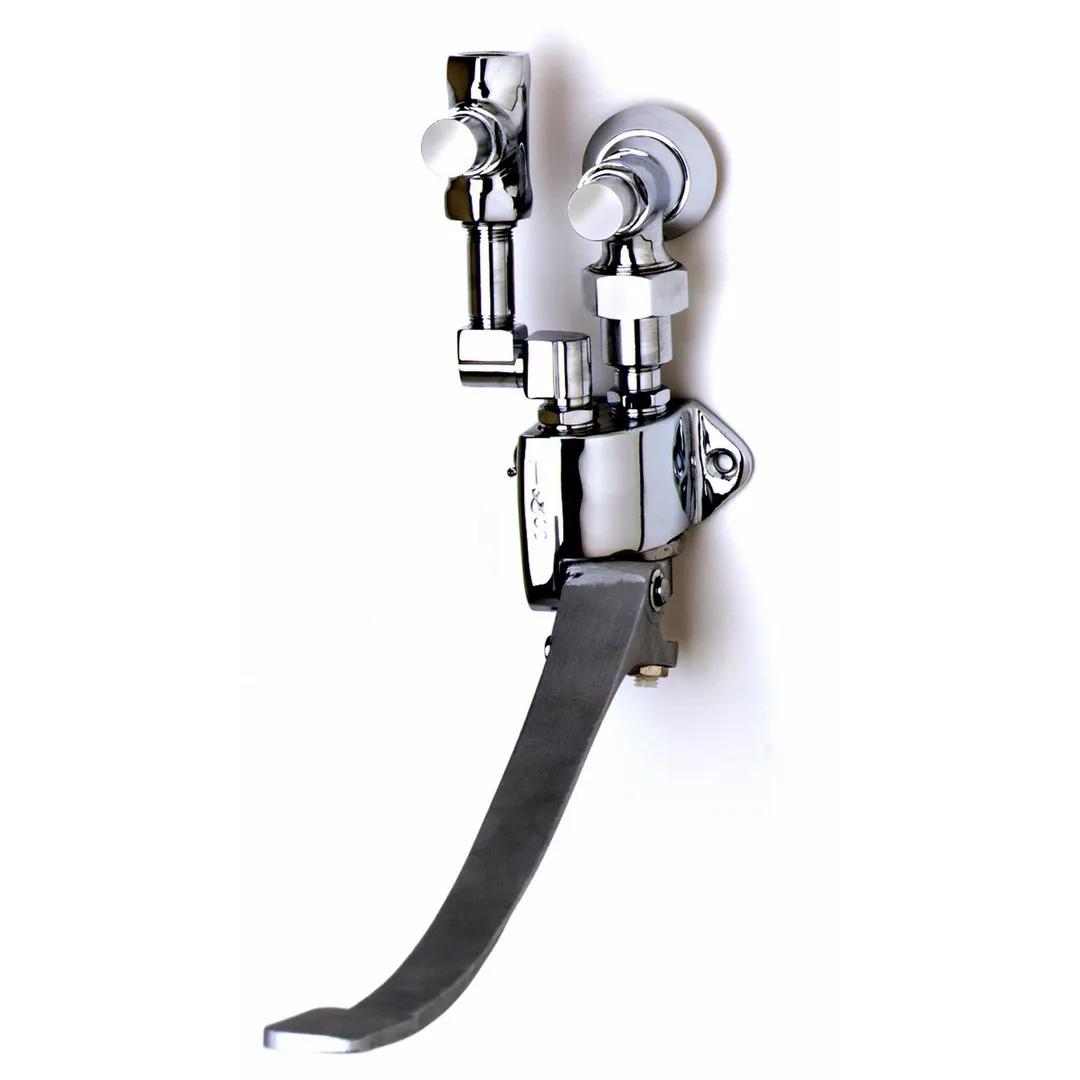

T&S Brass B-0508-02 Single Pedal Valve
General Info
The B-0508-02, Wall mount single pedal valve with chrome plated solid brass body, adjustable height aluminum pedal, self-closing valve, 1/2" NPT female loose key angle stop inlet, 1/2" NPT female loose key straight volume control outlet and mounting screws.
T&S Brass B-0508-02 Features
- Wall mount single pedal valve
- Adjustable height blank pedal
- Pedal flips up for floor cleaning
- Self-closing valve
- 1/2” NPT female loose key angle stop inlet
- 1/2” NPT female loose key straight volume control outlet
- Includes mounting screws
- Material: Polished chrome brass valve and stop bodies, satin finish aluminum pedal
T&S Brass B-0508-02 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 4.92 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pedal Valve, single, wall mounted, for hot or cold water, 1" from wall to center of inlet, wall to pedal tip approximately 13-3/4", angle loose key stop on inlet, volume control straight loose key stop
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
