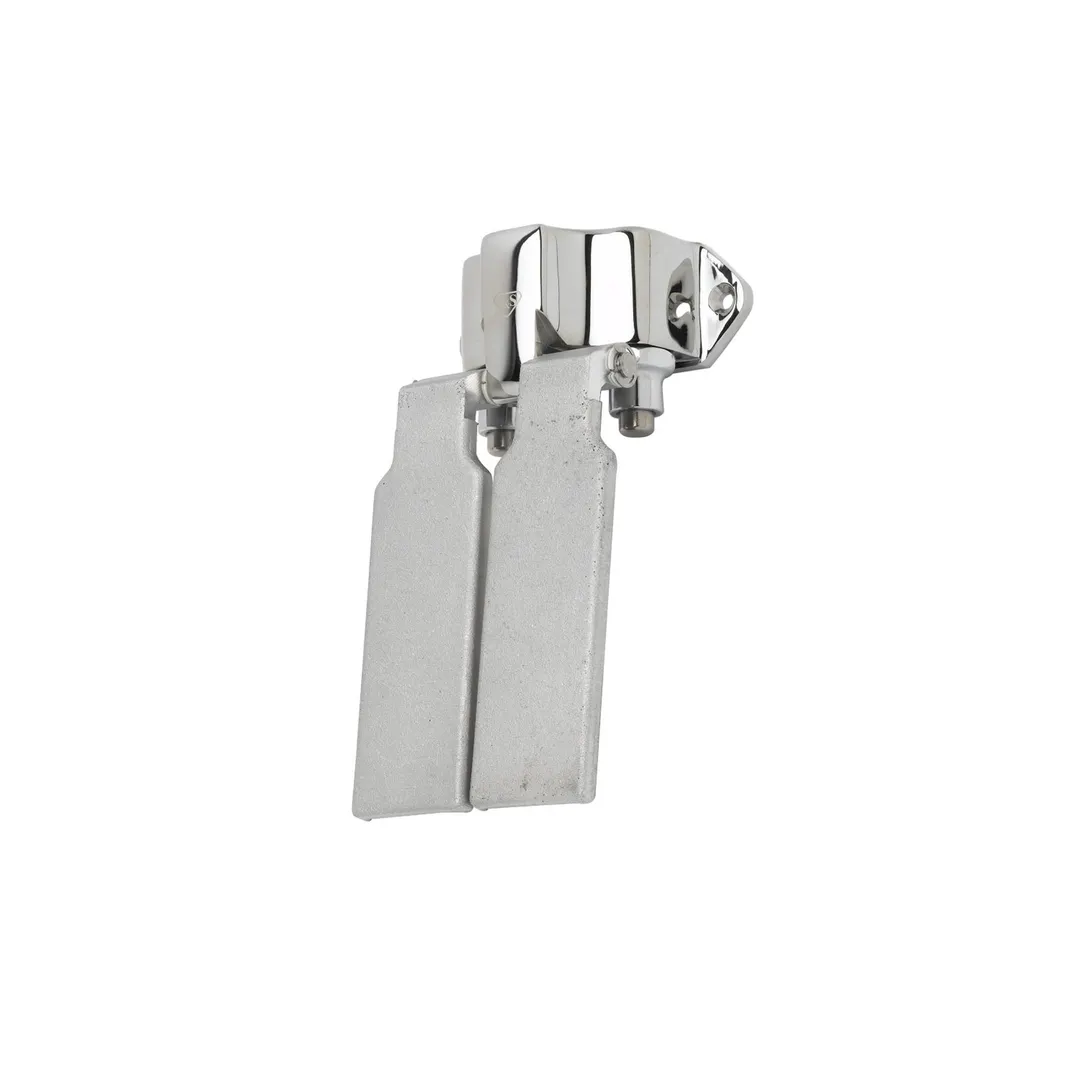

T&S Brass B-0509 Double Knee Pedal Valve
General Info
The B-0509, Ledge mount double knee pedal valve with polished chrome plated solid brass body and aluminum pedals, self-closing valves, 1/2" NPT female inlets and outlet and mounting screws.
T&S Brass B-0509 Features
- Ledge mount double pedal valve w/ polished chrome plated brass body
- Aluminum knee pedals
- Self-closing valves
- 1/2” NPT female inlets & outlet
- Includes mounting screws
- Material: Polished chrome plated brass body and aluminum knee pedals
T&S Brass B-0509 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 12.00 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Knee Pedal Valve, double, inlets on 2-1/2" centers, approximately 24" floor to base of valve, pedals 6 1/4"L
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
