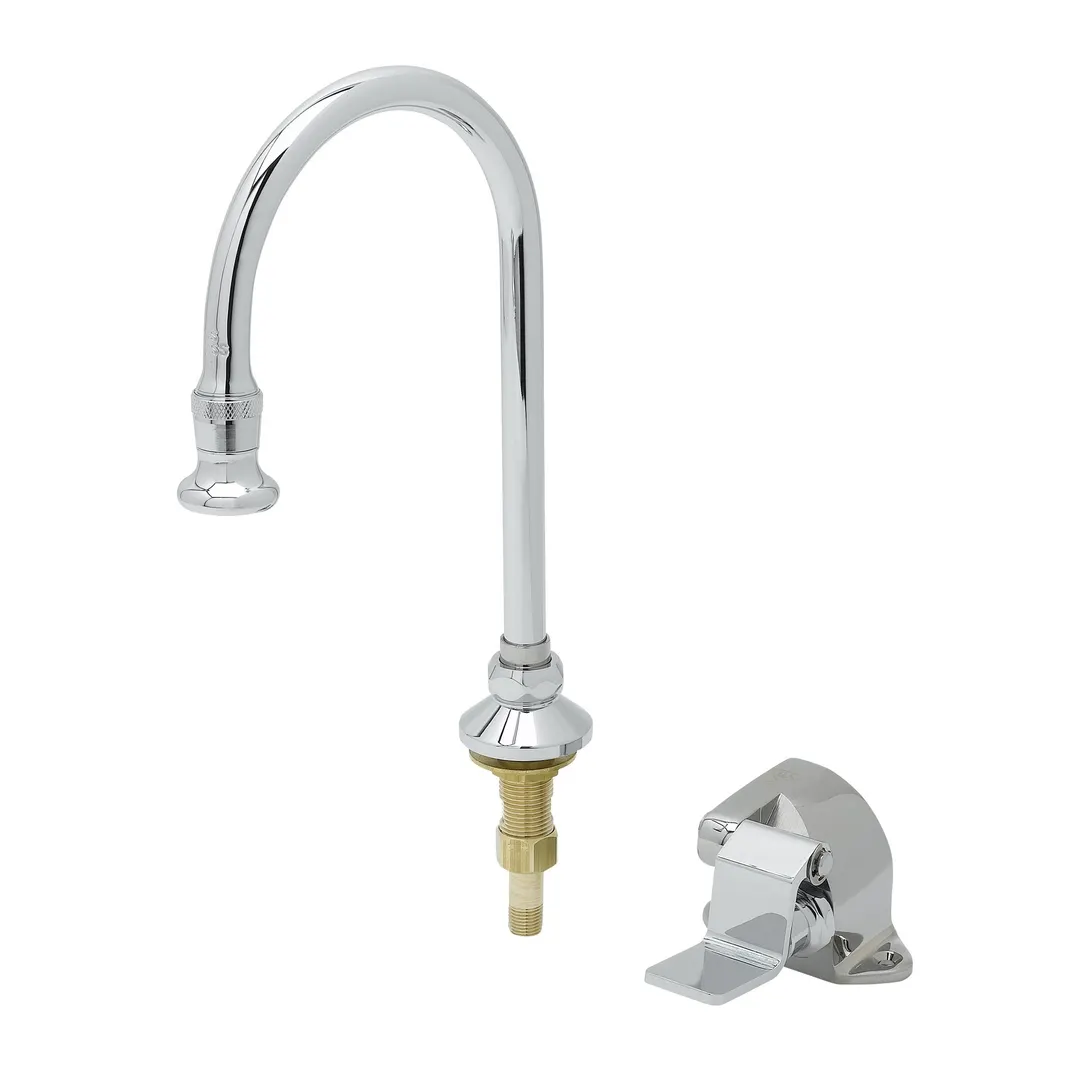

T&S Brass B-2464 Pedal Valve
General Info
Floor mounted single pedal valve with chrome plated brass body and pedal, 5 13/16" rigid/swivel gooseneck with 2.2 GPM rosespray outlet, self-closing valve, 1/2" NPSM male inlet and rigid deck mount flange.
T&S Brass B-2464 Features
- Floor mounted single pedal valve w/ polished chrome plated brass body
- Blank floor pedal
- Pedal flips up for floor cleaning
- 5 9/16" rigid/swivel gooseneck
- Lock washer provided for rigid application
- 2.2 GPM rosespray outlet, Series 1
- Self-closing valve
- 1/2” NPSM male inlet
- Rigid deck mount flange
- Tailpiece and nut to provide 1/4” NPT male connection
- Material: Polished chrome plated brass body, pedal and tubular spout
T&S Brass B-2464 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pedal Valve, single, floor mount, 5-13/16" swivel gooseneck with 2.2 gpm rosespray outlet, check valve, low lead, 1/2" NPT, NSF
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
