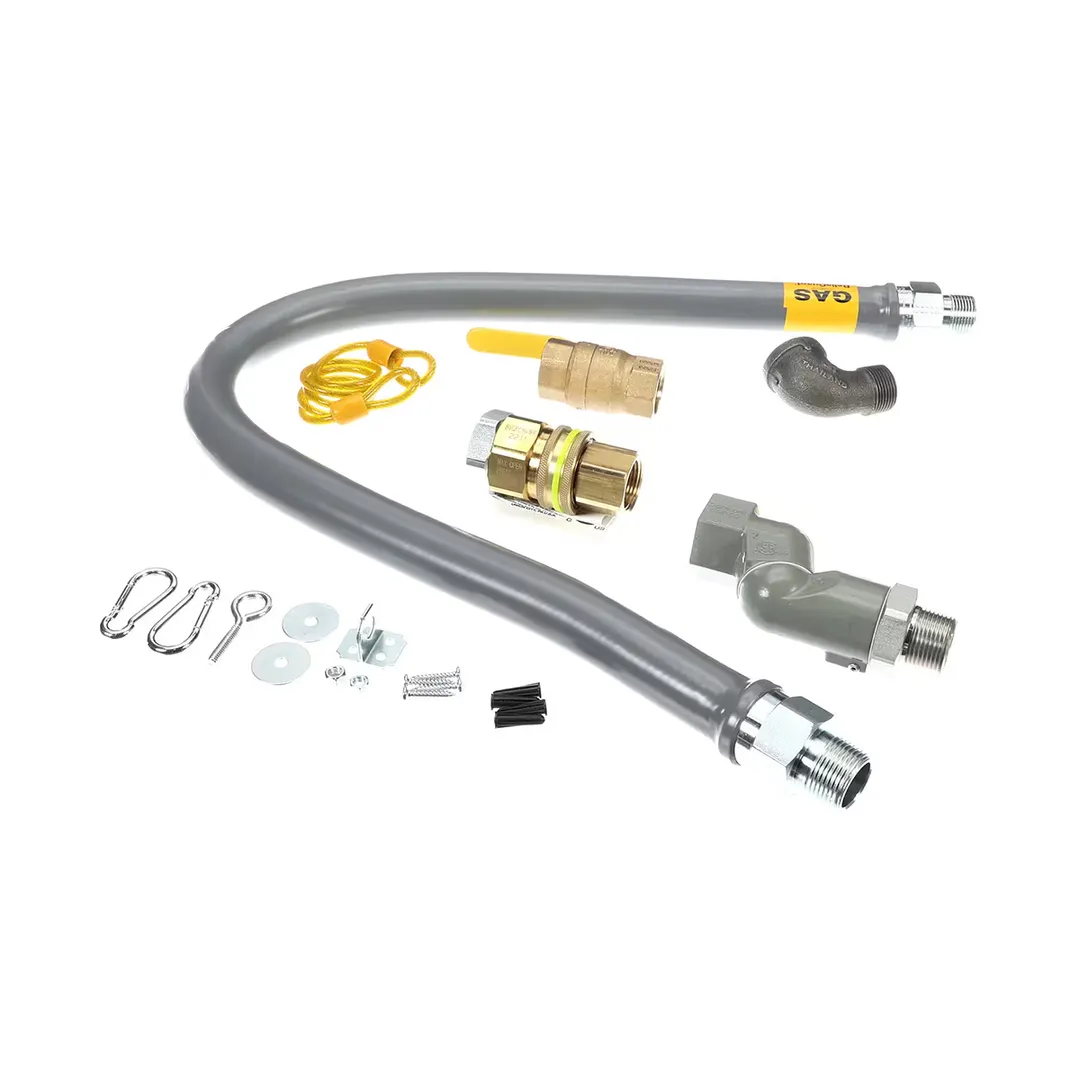

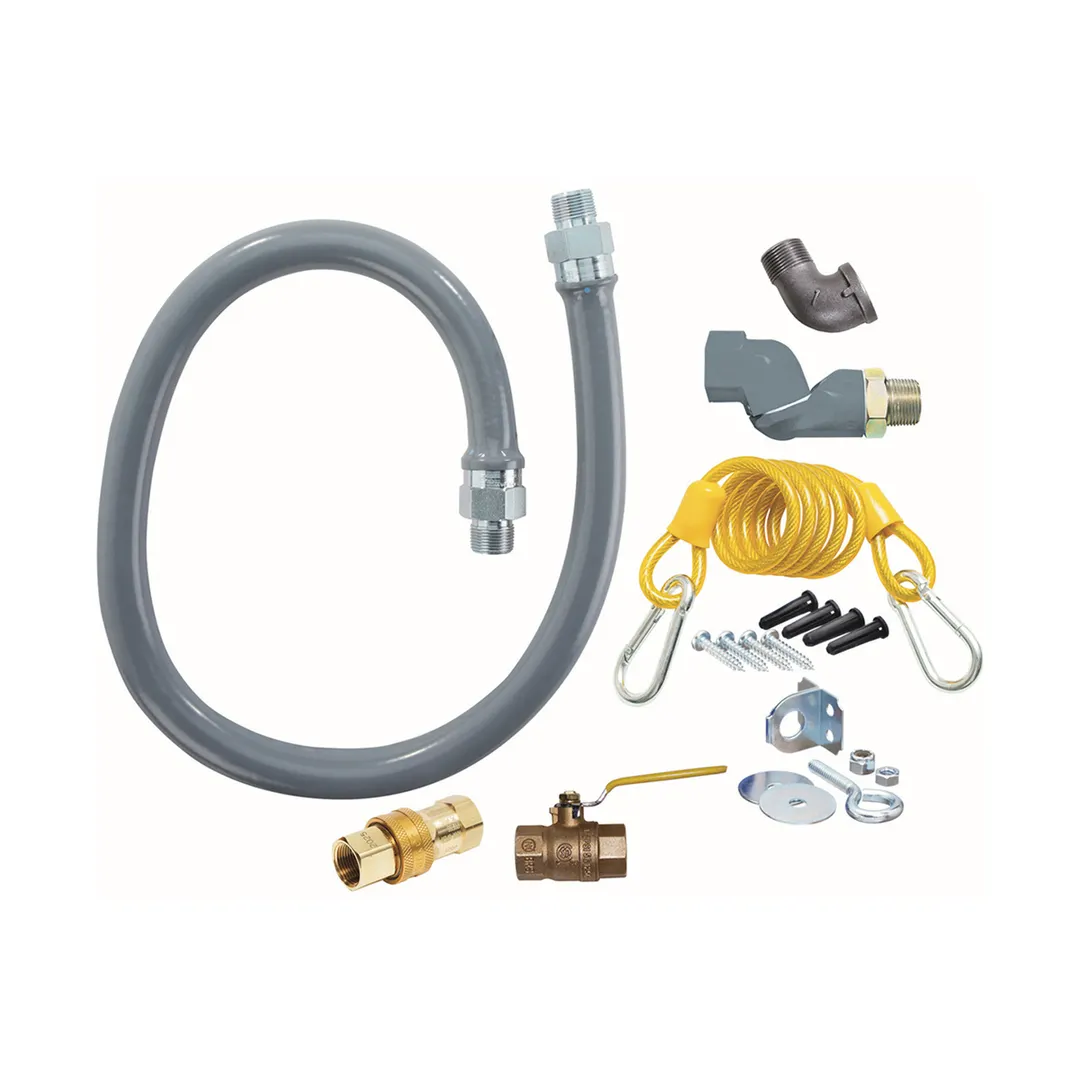

Dormont RG100S48 Gas Connector Hose Kit / Assembly
Why use Dormont RG100S48 Gas Connector Hose Kit / Assembly?
The ReliaGuard® with Single and Double SwivelGuard™ and Standard Snap™ QuickDisconnect Assemblies feature optimum movement flexibility and a quick disconnect fitting with a unique shut off design that automatically shuts off the gas when the internal temperature exceeds 350°F (177°C). The 360° movement of SwivelGuard at both ends gives maximum protection to the life of the connector and greatly increases kitchen aisle space by allowing the appliance to be closer to the wall.
Dormont RG100S48 Standard Features
- SwivelGuard; Aluminum body, plated steel fitting
- SwivelGuard; 360° rotational end fitting
- Standard Snap Quick Disconnect; Brass body, aluminum collar
- Standard Snap Quick Disconnect; Shuts off gas when internal temperatures exceed 350°F (177ºC)
- PVC coated, steel multi-strand cable and mounting hardware
- Full port, brass body
- Annealed, corrugated 304 stainless steel
- Multi-strand, stainless steel wire
- Gray PVC, melts at 350°F (177°C), coating will not hold a flame
- Carbon steel; zinc trivalent chromate 360° rotational end fitting at both ends
Dormont RG100S48 Specifications
- Length : 48"
- Weight Lbs: 9.67
From The Manufacturer
Dormont ReliaGuard® Foodservice Gas Connector Kit, 1" inside dia., 48" long, covered with stainless steel braid, coated with gray PVC, (1) quick disconnect, (1) SwivelGuard, coiled restraining cable with hardware, limited 5 year warrany
