T&S Brass HG-2D-24K Gas Hose
General Info
24" coated gas appliance connector hose with 3/4" NPT male connections and installation kit.
T&S Brass HG-2D-24K Features
- 24” coated gas appliance connector
- 3/4" NPT male freespin inlet
- 3/4" NPT male freespin outlet
- nstallation kit
- 90 elbows included
- 360 rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- No lock-up during use with SwiveLink fitting
- Provides efficient, full gas flow
- Material: Extruded coated stainless steel braids
T&S Brass HG-2D-24K Specifications
- Gas Pressure : 1/2 psi max
- Temperature : 350 F max
- Capacity : 291,000 BTU / hr min
- Other Details : See spec. sheet
From The Manufacturer

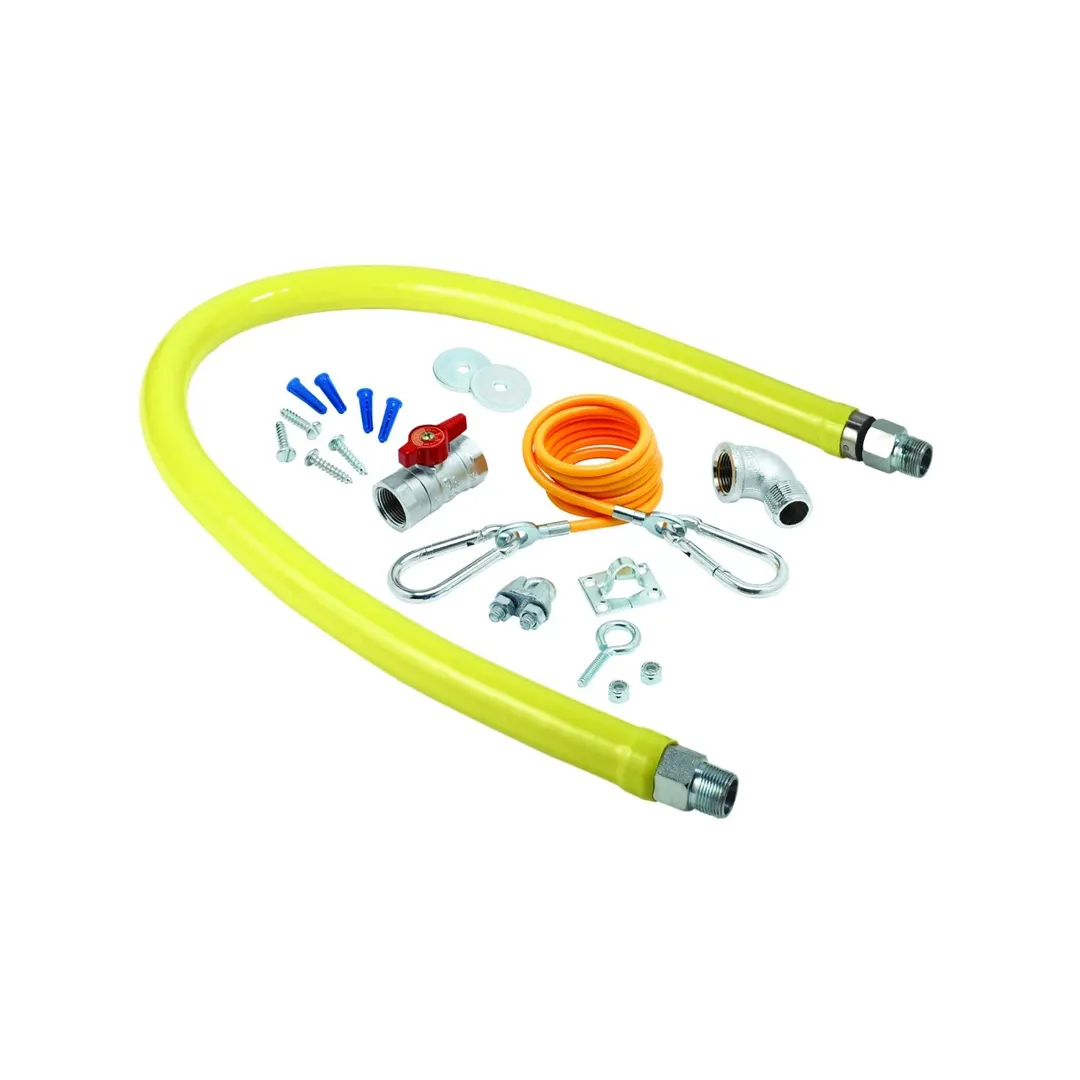

Safe-T-Link Gas Connector Kit, 3/4" connection, 24"L, stainless steel braid with extruded coating, (1) 90° elbow, ball valve, necessary hardware, with Surelink restraining cable adjustable for 3' to 5'
