T&S Brass HG-4D-36K Gas Connector Hose Kit
General Info
36" coated gas appliance connector hose with 3/4" NPT male connections and quick-disconnect.
T&S Brass HG-4D-36K Features
- 36” coated gas appliance connector
- 3/4" NPT male freespin inlet
- 3/4" NPT male freespin outlet
- 3/4" NPT female quick-disconnect
- 90 elbow & street elbow included
- Street elbow included
- 360 rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- Provides efficient, full gas flow
- Quick-disconnect socket acts as shut-off valve when the plug and socket are disconnected
- Material: Extruded coated stainless steel braids
T&S Brass HG-4D-36K Specifications
- Pressure : 1/2 psi max
- Temperature : 350 F max w/ Fusible Link Thermal Shut-off
- Capacity : 220,000 BTU / hr min
- Other Details : See spec. sheet
From The Manufacturer

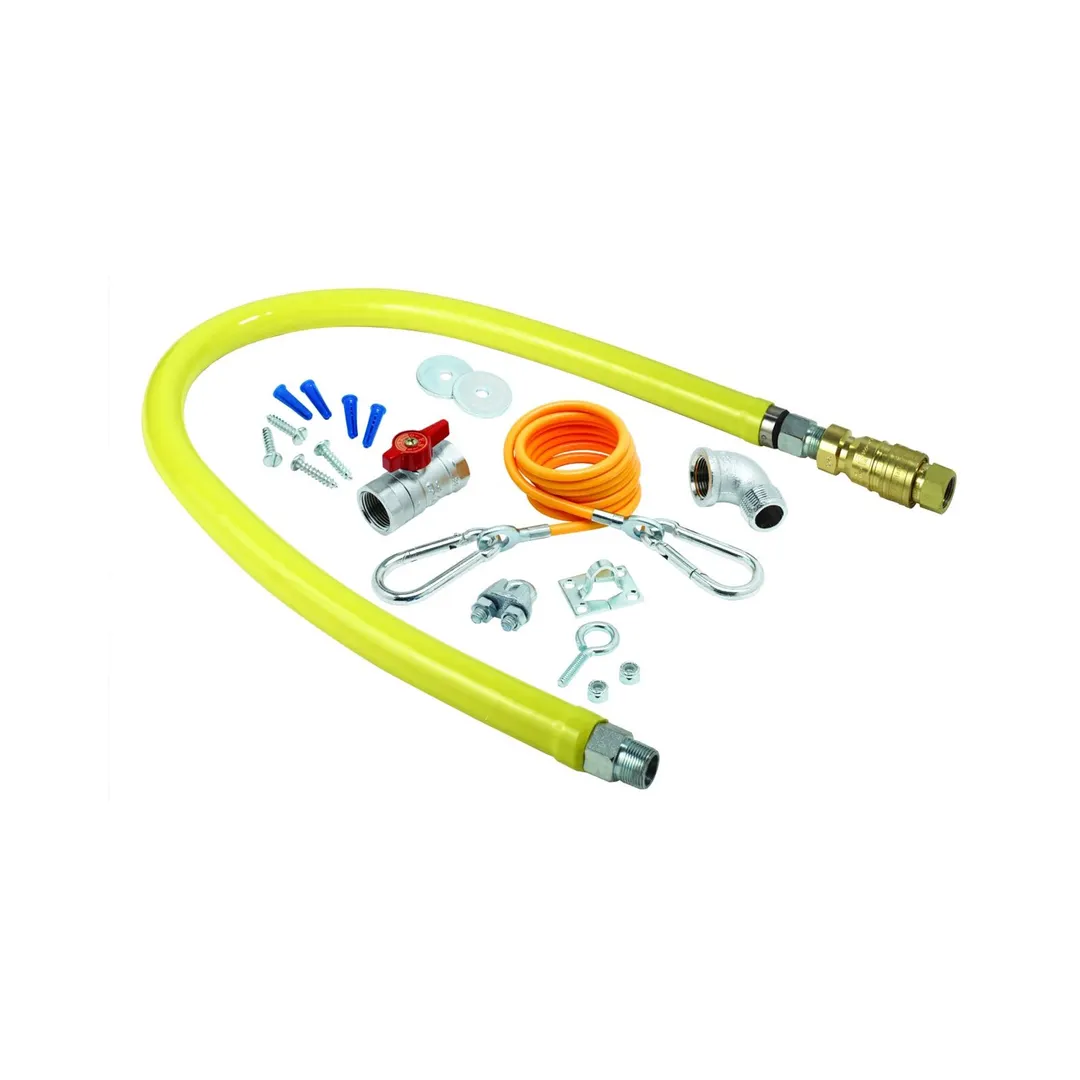

Safe-T-Link Gas Connector Kit, 3/4" connection, 36"L, stainless steel braid with extruded coating, (1) quick disconnect, (1) street "EL", ball valve, restraining cable adjustable for 3'to 5'
