T&S Brass HG-4D-36K-FF Gas Connector Hose Kit
General Info

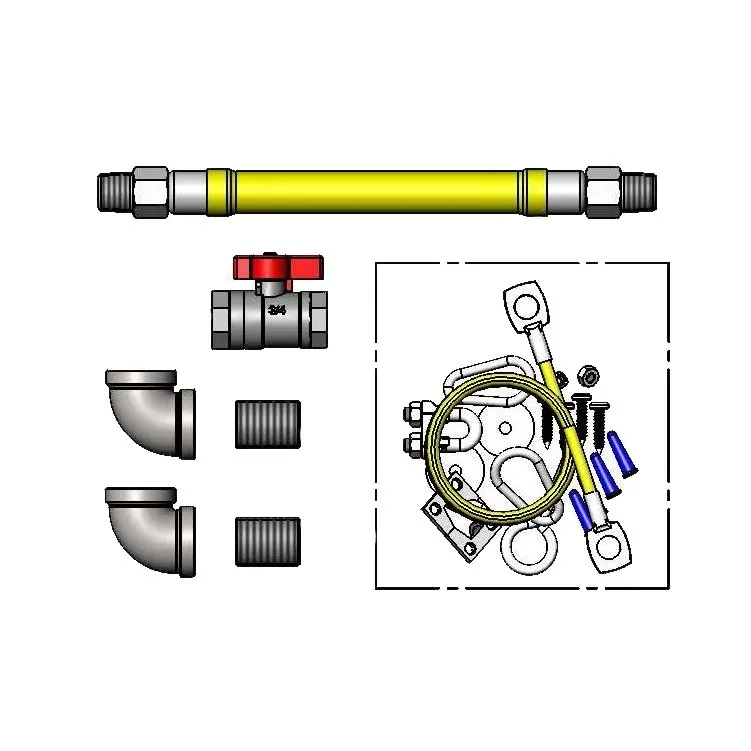

36" coated gas appliance connector hose with 3/4" NPT male connections, 2-piece quick-disconnect, (2) 90 elbows, (2) short nipples, gas ball valve and restraining cable kit.
T&S Brass HG-4D-36K-FF Features
- 36” coated gas appliance connector
- 3/4" NPT male freespin inlet
- 3/4" NPT male freespin outlet
- 3/4" NPT female quick-disconnect
- Quick-disconnect socket acts as a shut-off valve when the plug and socket are disconnected
- (2) 3/4" NPT 90 elbows
- (2) 3/4" NPT short nipples
- CSA certified gas ball valve
- Restraining cable kit
- 360 rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- Provides efficient, full gas flow
- Material: Extruded coated stainless steel braids
T&S Brass HG-4D-36K-FF Specifications
- Pressure : 1/2 psi max
- Temperature : 350 F max w/ Fusible Link Thermal Shut-off
- Capacity : 220,000 BTU / hr min
- Other Details : See spec. sheet
From The Manufacturer
Safe-T-Link Gas Connector Hose, Quick-Disconnect, 3/4" NPT x 36", cable kit, ball valve, gas elbows, & nipples
