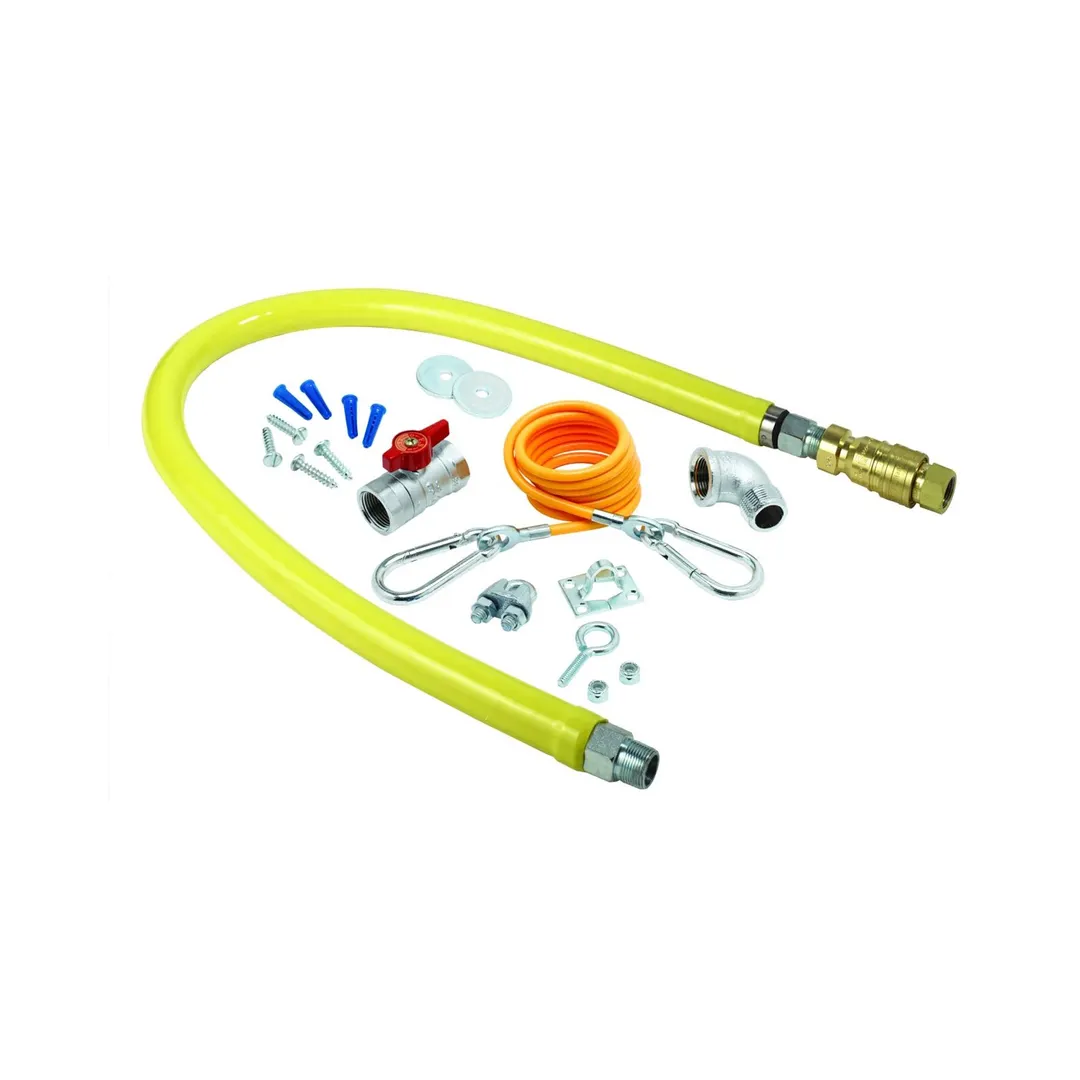

T&S Brass HG-4E-36K Gas Connector Hose Kit
General Info
36" coated gas appliance connector hose with 1" NPT male connections, swivel fittings and installation kit.
T&S Brass HG-4E-36K Features
- 36” coated gas appliance connector w/ freespin fittings
- (2) 1" NPT male SwiveLink fittings
- Installation kit
- 90 elbow included
- 360 rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- No lock-up during use with SwiveLink fittings
- Provides efficient, full gas flow
- Quick-disconnect socket acts as shut-off valve when the plug and socket are disconnected
- Material: Extruded coated stainless steel braids
T&S Brass HG-4E-36K Specifications
- Gas Pressure : 1/2 psi max
- Temperature : 350 F max w/ Fusible Link Thermal Shut-off
- Capacity : 380,000 BTU / hr min
- Other Details : See spec. sheet
From The Manufacturer
Safe-T-Link Gas Connector Kit, 1" connection, 36"L, stainless steel braid with extruded coating, (1) quick disconnect, (1) street "EL", ball valve, restraining cable adjustable for 3'to 5'
