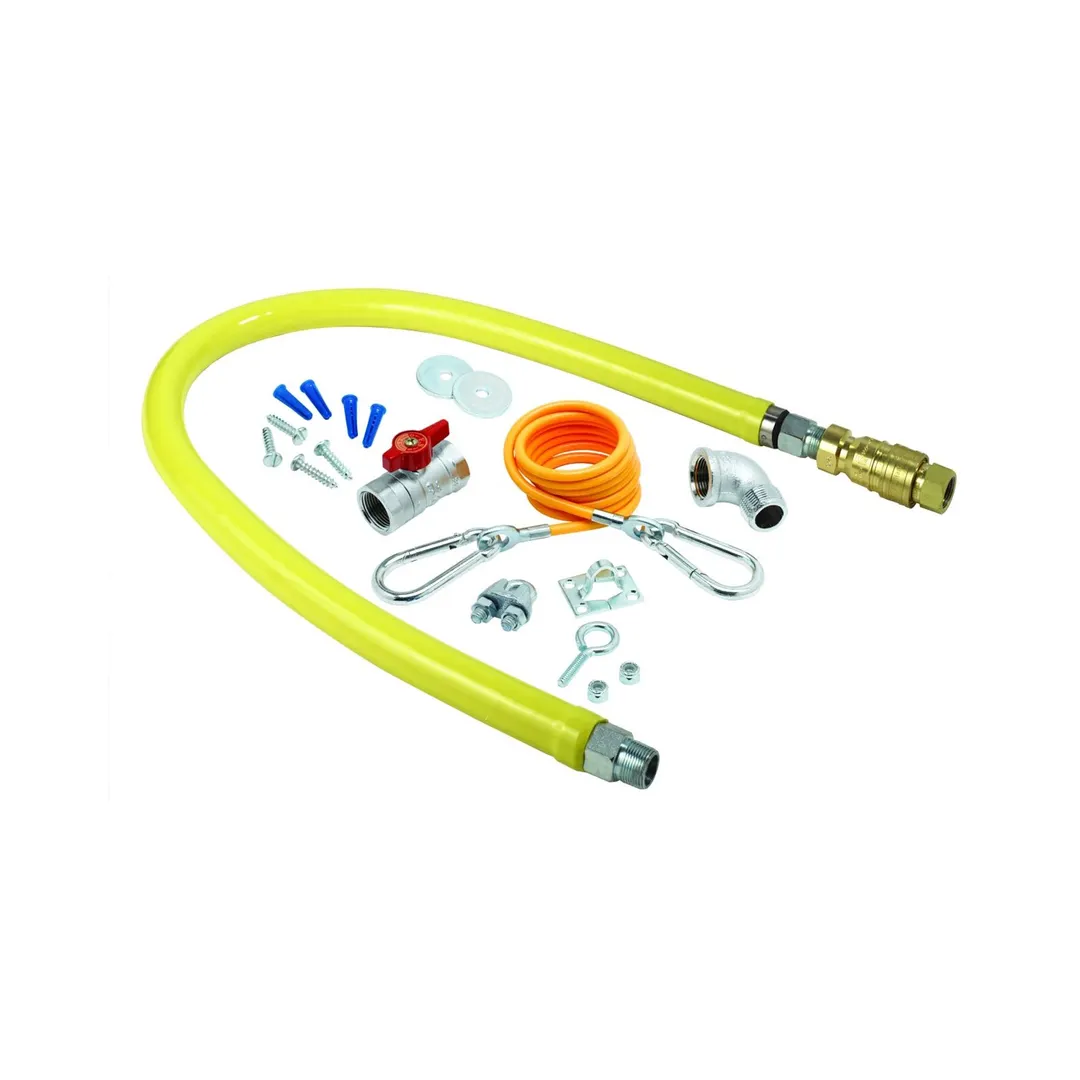

T&S Brass HG-4F-60K Gas Connector Hose Kit
General Info
60" coated gas appliance connector hose with 1 1/4" NPT male connections and quick-disconnect.
T&S Brass HG-4F-60K Features
- 60” coated gas appliance connector
- 1 1/4" NPT male freespin inlet
- 1 1/4" NPT male freespin outlet
- 1 1/4" NPT female quick-disconnect
- Street elbow included
- Installation kit
- 360 rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- Provides efficient, full gas flow
- Quick-disconnect socket acts as shut-off valve when the plug and socket are disconnected
- Material: Extruded coated stainless steel braids
T&S Brass HG-4F-60K Specifications
- Gas Pressure : 1/2 psi max
- Temperature : 350 F max w/ Fusible Link Thermal Shut-off
- Capacity : 475,000 BTU / hr min
- Other Details : See spec. sheet
From The Manufacturer
Safe-T-Link Gas Connector Kit, 1-1/4" connection, 60"L, stainless steel braid with extruded coating, (1) quick disconnect, (1) street "EL", ball valve, restraining cable adjustable for 3'to 5'
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
