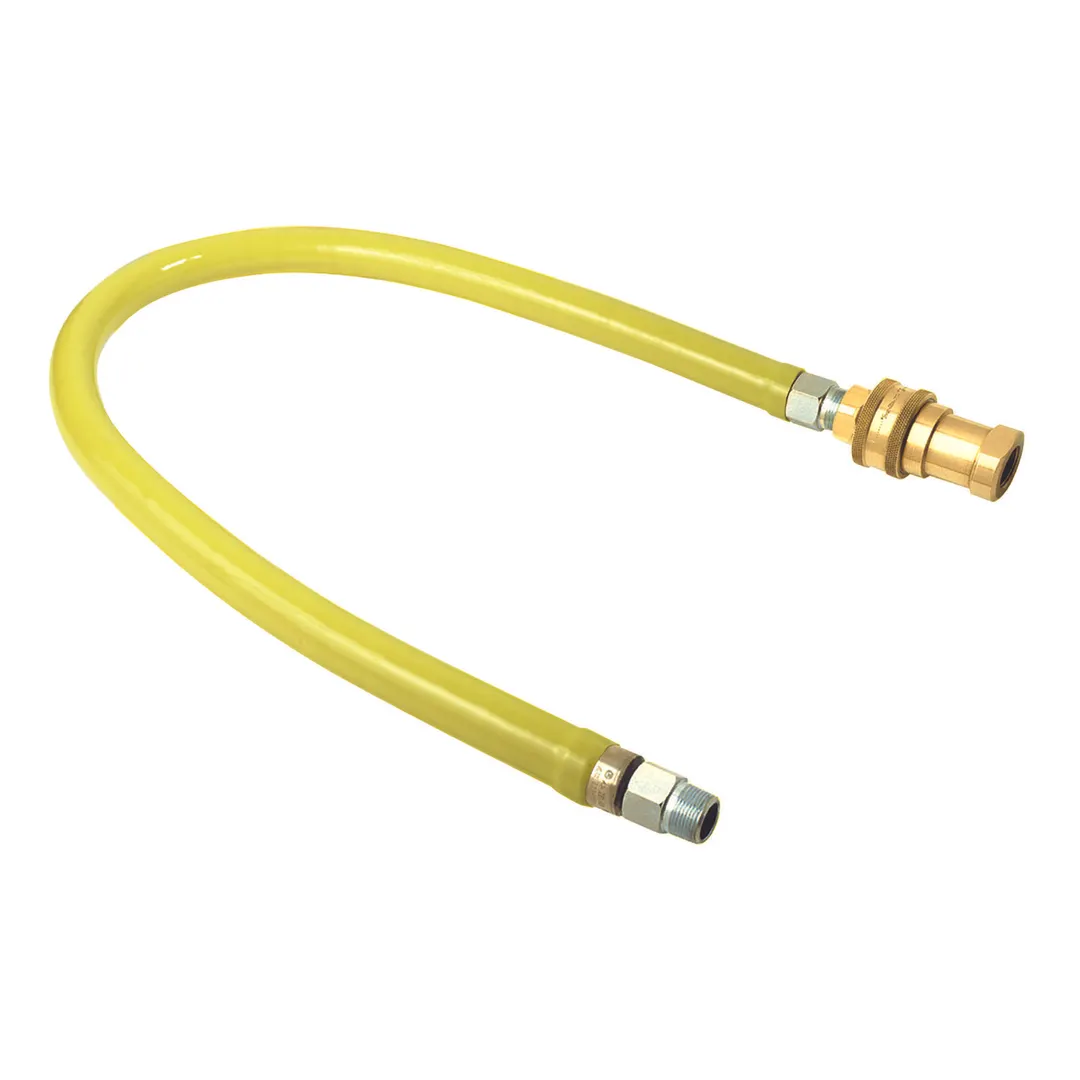

T&S Brass HG-6F-48S Gas Connector Hose
General Info
48" coated gas appliance connector hose with 1 1/4" NPT male connections, 2-piece reverse quick disconnect, (2) swivel-links fittings & (2) 90deg elbows.
T&S Brass HG-6F-48S Features
- 48” coated gas appliance connector
- 1 1/4" NPT male freespin inlet
- 1 1/4" NPT male freespin outlet
- 1 1/4" NPT female reverse quick-disconnect
- Reverse quick-disconnect socket acts as a shut-off valve when the plug and socket are disconnected
- (2) 1 1/4" NPT swivel-links fittings
- (2) 1 1/4" NPT 90 elbow
- 360 rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- Provides efficient, full gas flow
- Material: Extruded coated stainless steel braids
T&S Brass HG-6F-48S Specifications
- Gas Pressure : 1/2 psi max
- Temperature : 350 F max w/ Fusible Link Thermal Shut-off
- Capacity : 540,000 BTU / hr min
- Other Details : See spec. sheet
From The Manufacturer
Safe-T-Link Gas Connector Hose, 1-1/4" NPT x 48", reverse quick disconnect, (2) swivel links, (2) 90° elbows
