Efficient Water Service for High‑Volume Restaurants

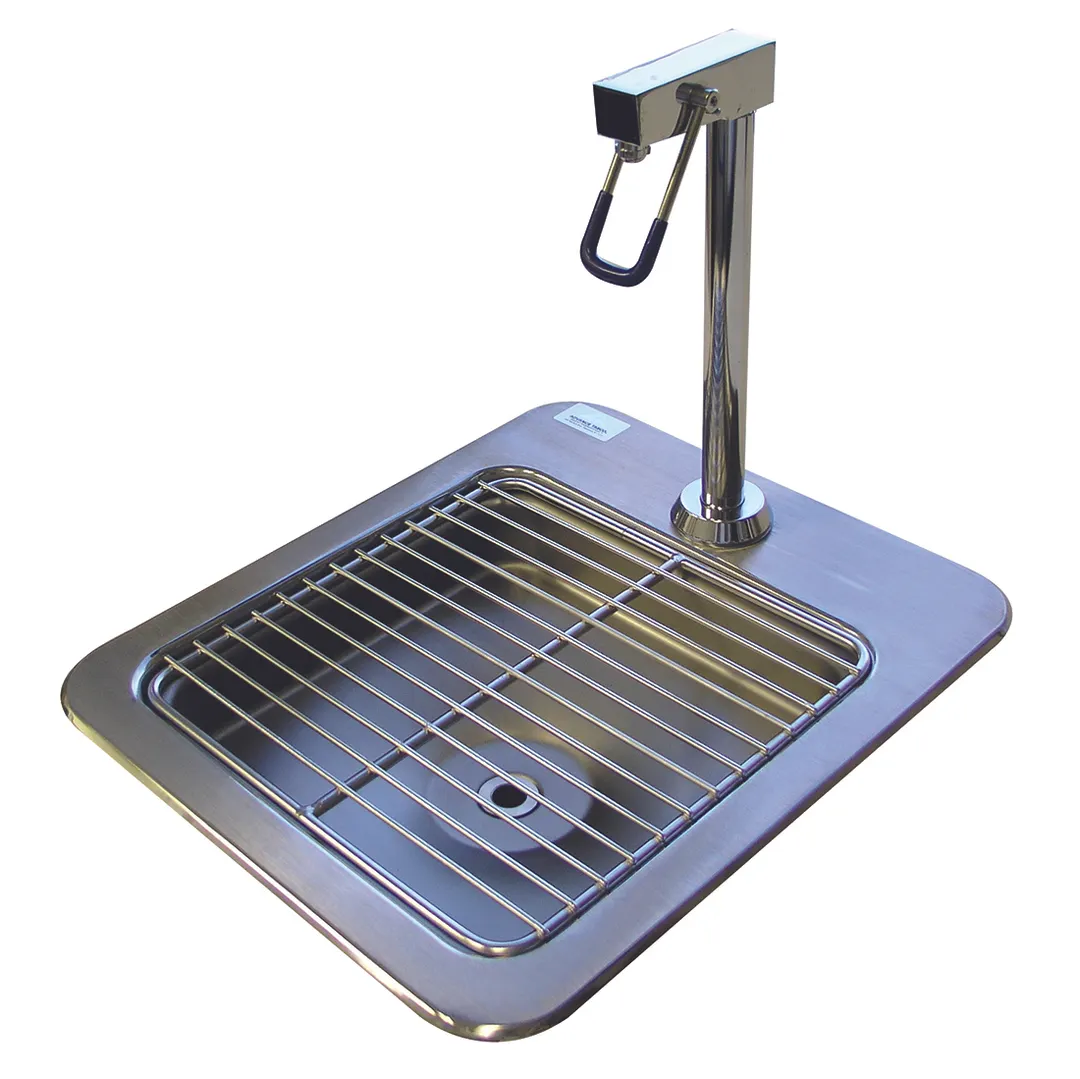

The Advance Tabco DI-1-9 Drop‑In Filler Station delivers fast, hygienic water service for high‑volume restaurant bars and self‑serve stations.
Key Features
- 9‑¼" high water filler faucet (K-54) with push‑back actuator for one‑hand operation.
- Deep Drawn™ 9" × 9" × 3" stainless steel bowl fits 11¼" × 13¼" cut‑out, providing a spacious refill area.
- Constructed from 20‑gauge 304 stainless steel with electro‑polished grill; NSF certified and sound‑deadened.
- 1/2" IPS male thread supply, 1.0 GPM (3.8 LPM) aerated flow at 60 PSI, brass‑nickel plated faucet for durability.
From The Manufacturer
Drop-In Filler Station, 9" x 9" x 3" deep bowl, Deep Drawn™ sink bowl, fits in cut-out 11-1/4" x 13-1/4", includes: 9-1/4"H water filler faucet (K-54) & grating, 20 gauge 304 stainless steel, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
