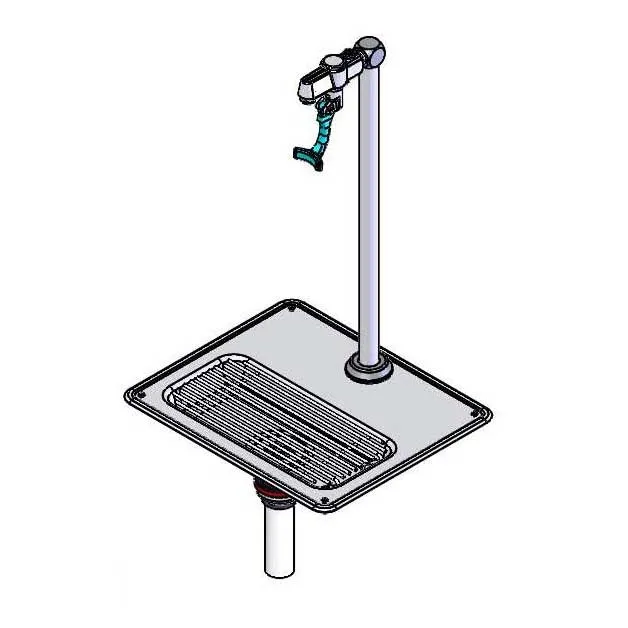

T&S Brass 5GF-16P-WS Water Station With Equip (Retro) Glass Filler
General Info
The 5GF-16P-WS, Deck mount water station with polished chrome plated brass body pedestal type glass filler, adjustable flow outlet, push back actuation arm, pedestal with adjustable deck flange, 18 gauge stainless steel drip pan with drop in grid and 1 1/4" drain.
T&S Brass 5GF-16P-WS Features
- 1 1/4" Drain
- 1/2" NPT male inlet
- 16" deck mount glass filler w/ polished chrome plated brass body
- Deck mount water station
- Instantaneous shut-off
- Pedestal w/ adjustable 2" flange
- Screwdriver adjustable flow outlet
T&S Brass 5GF-16P-WS Specifications
- Pressure Min/Max : 20 psi (1.38 bar)/125 psi (8.62 bar)
- Temperature Min/Max: 40 F (4.44℃)/140 F (60℃)
- Waste Drain Flow Rate : 18 GPM (68.13 L/min)
- Nozzle Flow Rate : 0.25 GPM (0.95 L/min)
- Box Dimensions : 3.88 x 12.00 x 27.50
- Weight : 7.10 lbs (3.22 kg)
- Other Details : See spec. sheet
From The Manufacturer
Water Station with Equip Glass Filler, 16" pedestal, deck mount, push back design, adjustable flange, adjustable flow rate, blue self-closing lexan arm, 18 gauge stainless steal drip pan with grid, 1-1/4" drain, 1/2" NPT male shank, low lead, cCSAus, ADA Compliant
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
