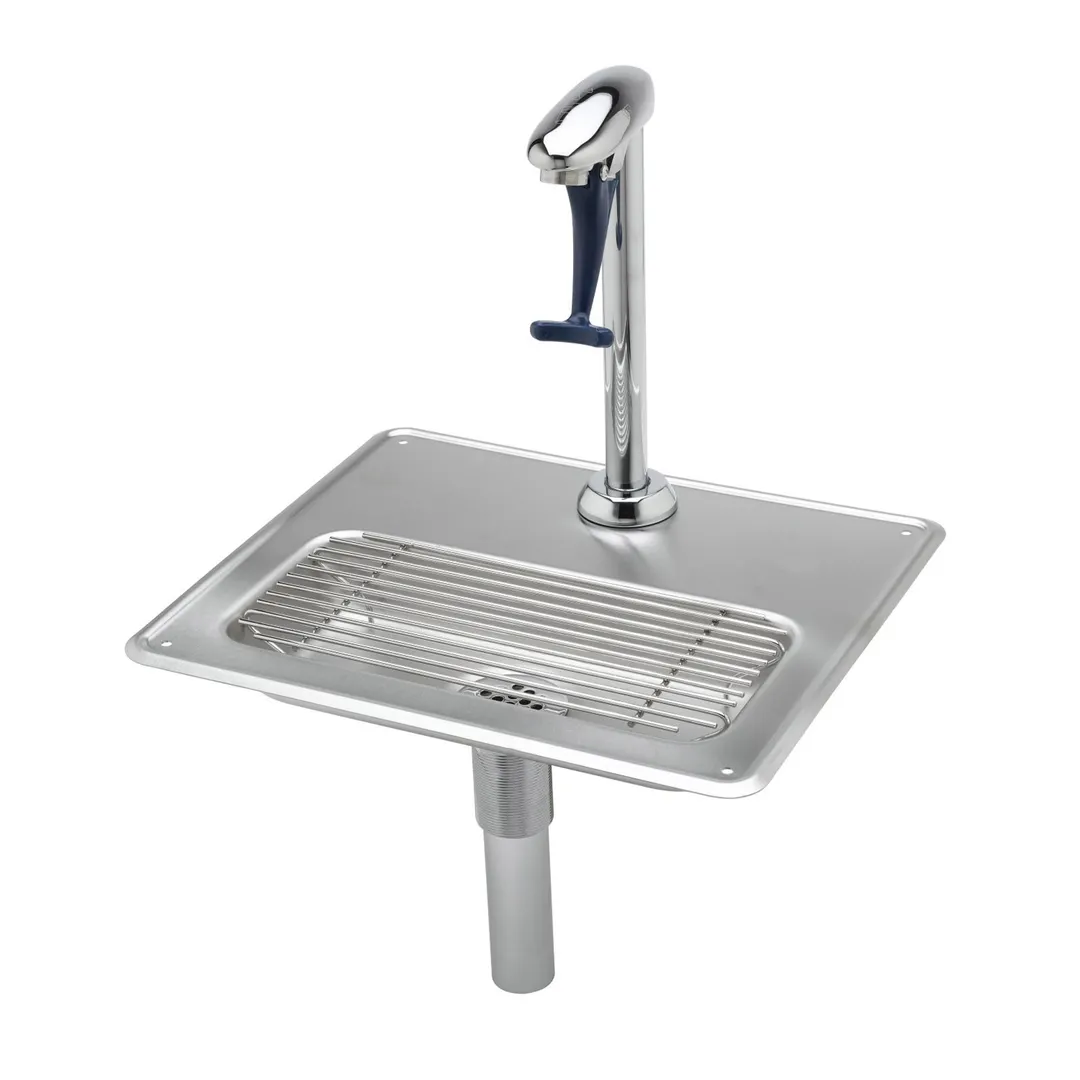

T&S Brass B-1230-12 Glass Filler Water Station
General Info
Deck mount water station with polished chrome plated brass pedestal type glass filler, adjustable flow outlet, push back actuation arm, pedestal with adjustable deck flange, 18 gauge stainless steel drip pan with drop-in grid and 1 1/4" drain.
T&S Brass B-1230-12 Features
- Deck mount water station
- 12” deck mount glass filler w/ polished chrome plated brass body
- Torx wrench adjustable flow outlet (wrench included)
- Dark blue push back arm
- Instantaneous shut-off
- 1/2" NPT male inlet
- Pedestal w/ adjustable Ø 2" flange
- Drip pan w/ drop-in grid
- 1 1/4” drain
- Material: Polished chrome plated brass body & pedestal,chrome plated metal flange, 18 gauge stainless steel drip pan and stainless steel grid
T&S Brass B-1230-12 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- 0.25 GPM min @ 60 psi
- 2.25 GPM max @ 60 psi
- Discharge Rate : 18.00 GPM
- Other Details : See spec. sheet
From The Manufacturer
Water Station, 12" pedestal glass filler, drip pan assembly
