T&S Brass B-1230-WFK Water Station
General Info

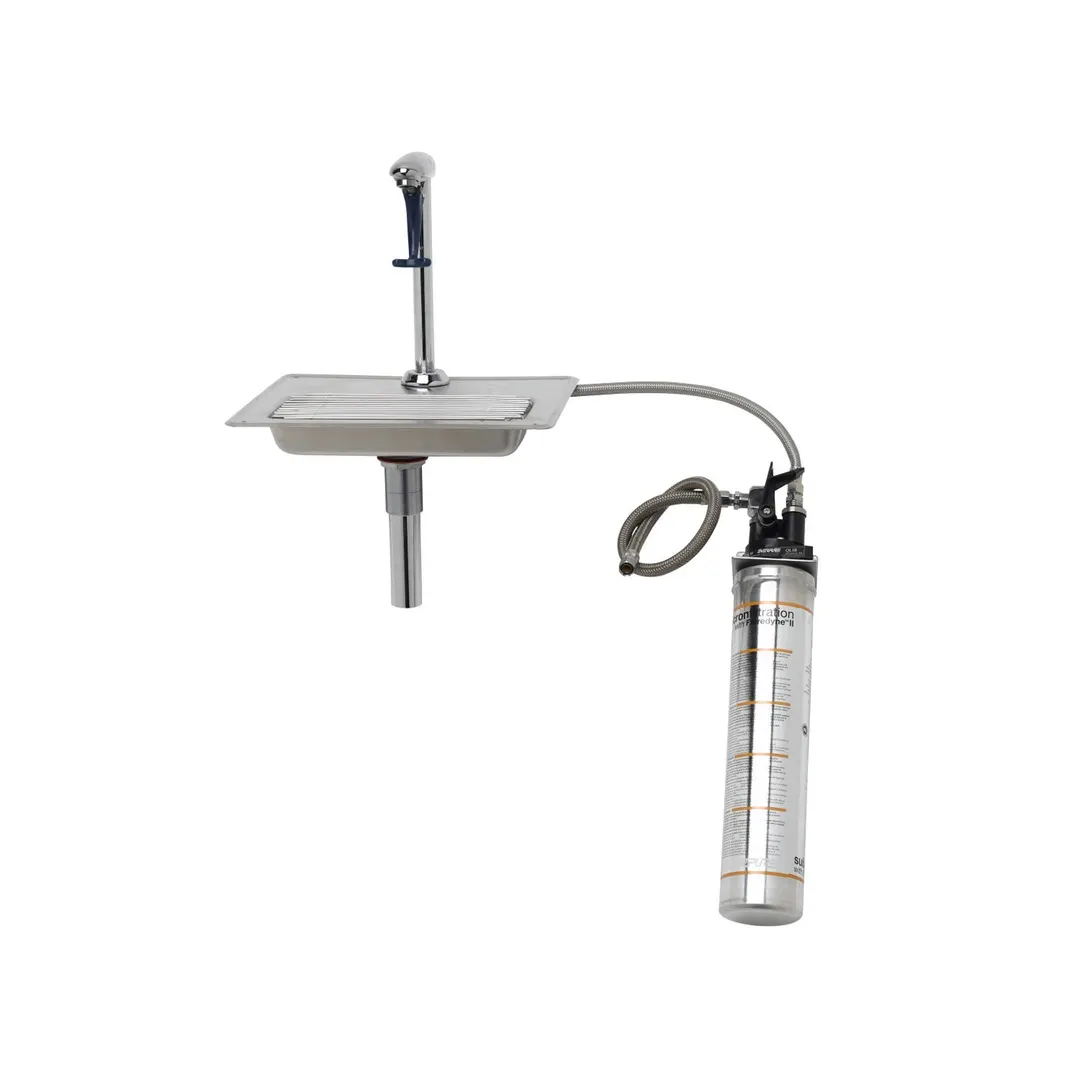

Deck mount water station with polished chrome plated brass pedestal type glass filler, adjustable flow outlet, push back actuation arm, pedestal with adjustable deck flange, 18 gauge stainless steel drip pan with drop-in grid and 1 1/4" drain.
T&S Brass B-1230-WFK Features
- Deck mount water station
- 8” deck mount glass filler w/ polished chrome plated brass body
- Torx wrench adjustable flow outlet (wrench included)
- Dark blue push back arm
- Instantaneous shut-off
- 1/2" NPT male inlet
- Pedestal w/ adjustable Ø 2" flange
- Drip pan w/ drop-in grid
- 1 1/4” drain
- Replaceable water filtration cartridge and docking station
- Material: Polished chrome plated brass body & pedestal, chrome plated metal flange, 18 gauge stainless steel drip pan and stainless steel grid
T&S Brass B-1230-WFK Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- 0.25 GPM min @ 60 psi
- 2.25 GPM max @ 60 psi
- Discharge Rate : 18.00 GPM
- Other Details : See spec. sheet
From The Manufacturer
Water Station, with 8" pedestal glass filler, 18 gauge stainless steel drip pan, drain & water filtration kit, ADA Compliant
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
