Efficient Remote Condensing for Frozen Dessert Operations

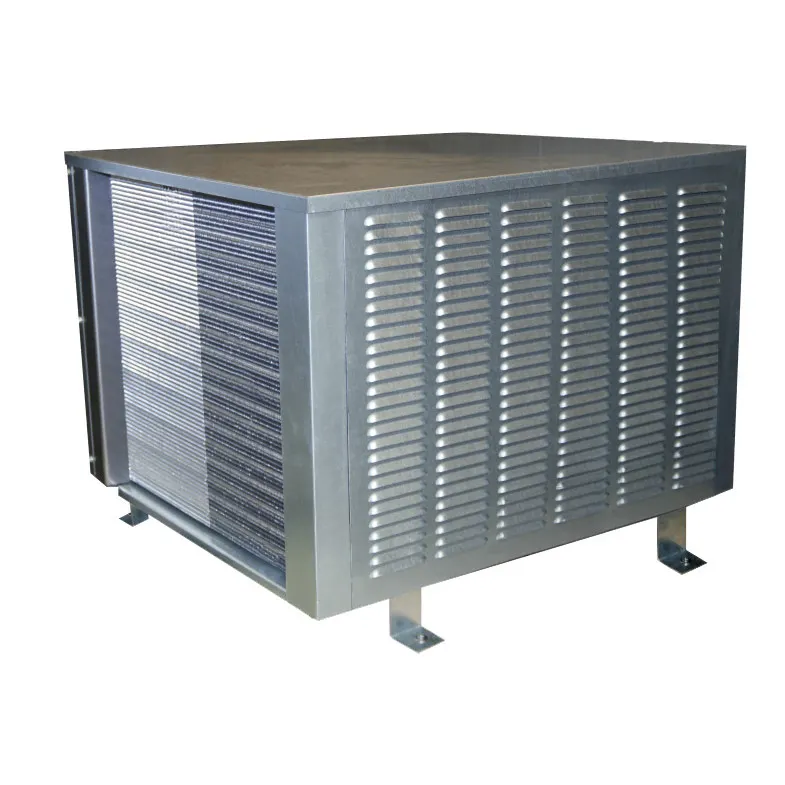

The Taylor RC46 60HZ remote condensing unit delivers reliable, air‑cooled refrigeration for frozen‑dessert dispensers, keeping ice production steady while fitting tight kitchen spaces.
Key Features
- Operates on 208‑230 V, 60 Hz single‑phase with a 15 A fuse, matching standard commercial kitchen power supplies.
- Requires a minimum 18‑inch (457 mm) clearance on three sides and includes an air deflector for optimal airflow.
- Dimensions are 29.25 in (W) × 26.38 in (D) × 19.88 in (H) with a net weight of 195 lb (61.2 kg).
- Certified cULus and CE, listed under certifications 29201 and 29205 for safety compliance.
From The Manufacturer
Remote Condensing Unit, air-cooled, (requires 18" clearance on three sides), (TWO CONDENSING UNITS REQUIRED for 8756 model), 208-230v/60/1 ph, 15.0 amps (Go to the Taylor website link to locate your distributor for pricing & warranty), cULus, CE
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
